Product Overview
The DC current gain is the ratio of the base current to the collector current βdc = Ic/Ib and the DC current gain for this device is 1500 @ 1A, 3V.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 3V @ 200mA, 20A.The product comes in the supplier device package of TO-204AA (TO-3).A 80 V maximal voltage - Collector Emitter Breakdown is present in the device.
Product Features
the DC current gain for this device is 1500 @ 1A, 3V
the vce saturation(Max) is 3V @ 200mA, 20A
the supplier device package of TO-204AA (TO-3)
Product Applications
2N6286 applications of single BJT transistors.
Inverter
Interface
Driver
Muting
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
|
Mfr |
- |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Transistor Type |
PNP - Darlington |
|
Current - Collector (Ic) (Max) |
20 A |
|
Voltage - Collector Emitter Breakdown (Max) |
80 V |
|
Vce Saturation (Max) @ Ib, Ic |
3V @ 200mA, 20A |
|
Current - Collector Cutoff (Max) |
1mA |
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
1500 @ 1A, 3V |
|
Power - Max |
175 W |
|
Frequency - Transition |
- |
|
Operating Temperature |
-65°C ~ 175°C (TJ) |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-204AA, TO-3 |
|
Supplier Device Package |
TO-204AA (TO-3) |
|
Base Product Number |
2N6286 |

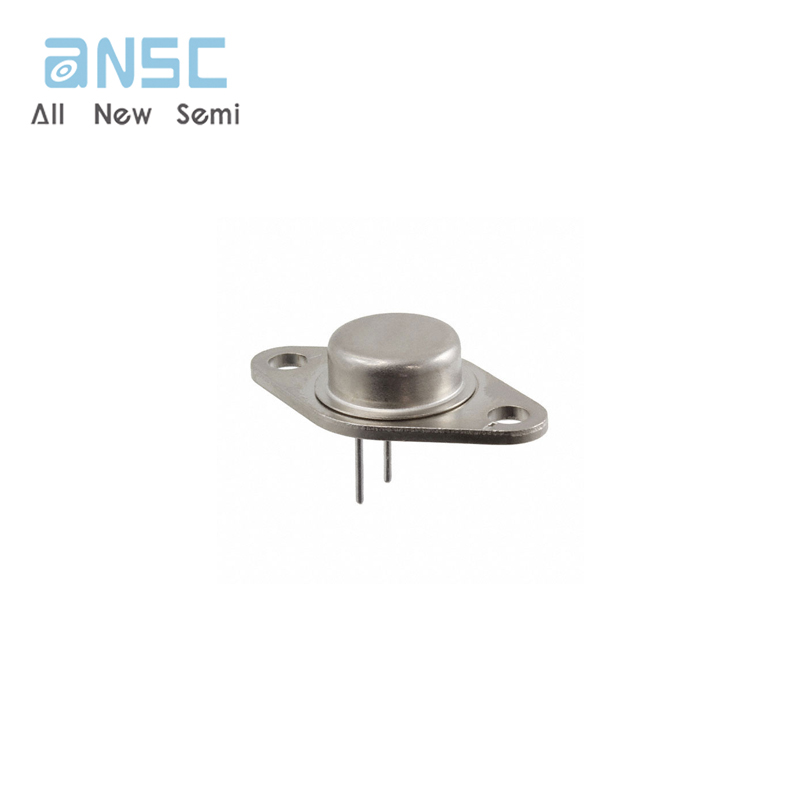

Actual image of the product

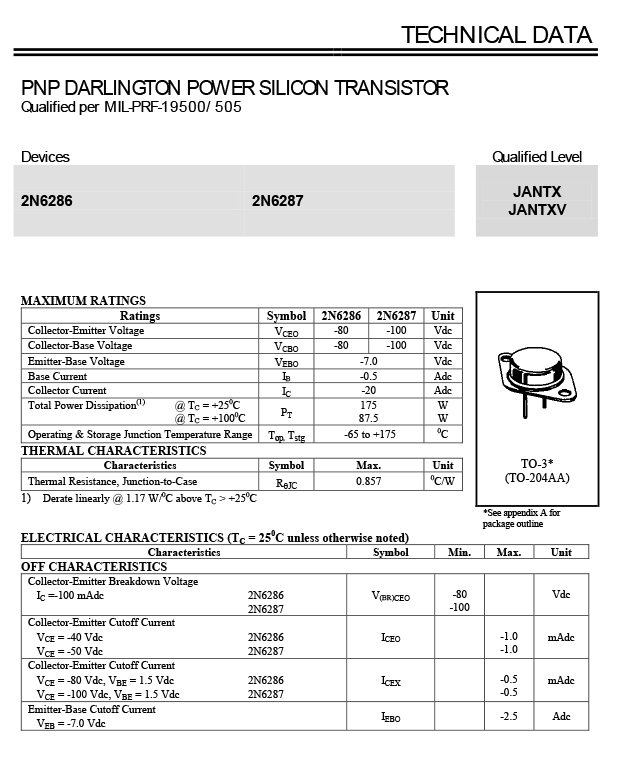

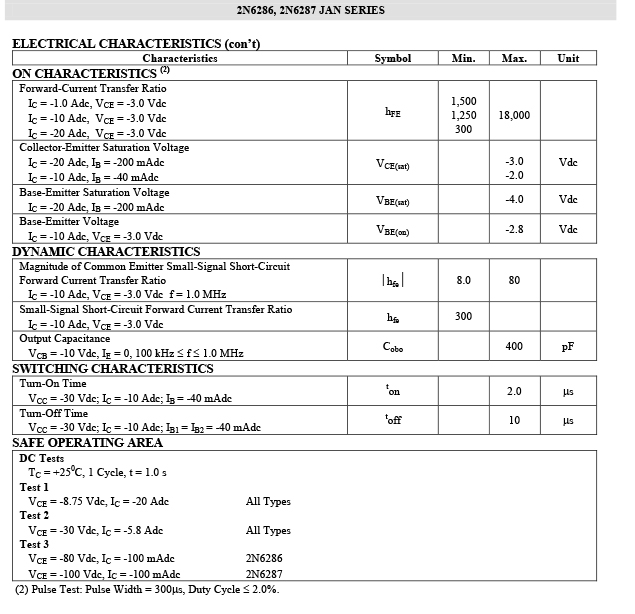

Product datasheet
For more information, please download
