Product Details
Simple and Reliable System Interconnection of Individual Solar Modules Right to the DC/AC Converters
Market expansion of the formerly regulated energy supply sector, increased global environmental awareness and governments committing themselves to more stringent environmental targets have opened up new opportunities for the photovoltaic industry.
Having served a niche market in the past, the photovoltaics industry now has the opportunity to move into mass production, realizing economies of scale and gaining a greater market share of the world’s energy mix.
System Features
Junction Box
■ Variable wiring options
■ Easily accessible
■ Simple, fast and cost-effective assembly
■ Flat, low profile design
■ High current carrying capacity
■ Good thermal balance
■ Connectorized or direct wire configurations
■ Up to four outputs possible
■ Up to six internal rails
■ Customer-specific solutions
■ TÜV and UL approved
Connector
■ Simple on-site processing
■ Mating safety provided by keyed housings
■ Semi-automatic assembly capability possible
■ Multiple plugging and unplugging cycles
■ Accomodates solar cable with different insulation diameters
■ High current carrying capacity
■ Wide temperature operating range
■ TÜV and UL approved
Solar Cable
■ Dual wall insulation
■ Electron beam cross-linked
■ Excellent resistance to U.V., water, ozone, fluids, salt, general weathering
■ Excellent resistance to abrasion
■ Halogen free, flame retardant, low toxicity
■ Very low smoke emissions
■ Excellent flexibility and stripping performance
■ Different cable diameters
■ Operating Temperature from –40 °C up to +125 °C
■ Voltage Rating up to 1800 V DC
■ Short circuit resistant up to +250 °C
■ TÜV and UL approved
Product Description
|
Type |
Description |
|---|---|
|
Category |

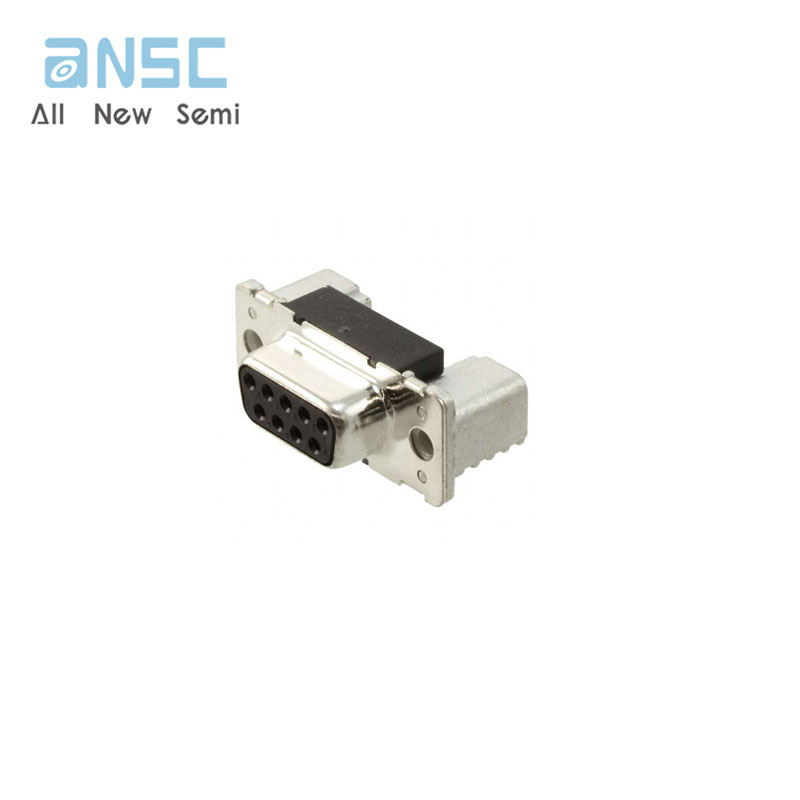

Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies |
|
Mfr |
- |
|
Series |
AMPLIMITE HD-20 |
|
Packaging |
Tape & Reel (TR) |
|
Part Status |
Obsolete |
|
Connector Style |
D-Sub |
|
Connector Type |
Receptacle, Female Sockets |
|
Number of Positions |
9 |
|
Number of Rows |
2 |
|
Mounting Type |
Surface Mount, Right Angle |
|
Shell Size, Connector Layout |
1 (DE, E) |
|
Contact Type |
Signal |
|
Flange Feature |
Housing/Shell (4-40) |
|
Termination |
Solder |
|
Shell Material, Finish |
Steel, Tin Plated |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
31.5µin (0.80µm) |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V-0 |
|
Current Rating (Amps) |
- |
|
Backset Spacing |
- |
|
Features |
Board Guide, Mounting Brackets |
|
Voltage Rating |
- |
|
Color |
Black |
|
Contact Form |
- |
|
Dielectric Material |
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
|
Wire Gauge |
- |
|
Contact Material |
- |
|
Operating Temperature |
-55°C ~ 105°C |
|
Base Product Number |
1740194 |
