Product Description
| TYPE# | DESCRIPTION |
| PART# | S1336-5BK |
| Manufacturer | / |
| Package Description | TO-5, 2 PIN |
| Additional Feature | HIGH RELIABILITY, HIGH SENSITIVITY |
| Configuration | SINGLE |
| Dark Current-Max | 0.03 nA |
| Infrared Range | YES |
| Light Current-Nom | 0.005 mA |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Functions | 1 |
| Operating Temperature-Max | 100 °C |
| Operating Temperature-Min |
-40 °C |
| Peak Wavelength | 960 nm |
| Response Time-Max | 2e-7 s |
| Reverse Breakdown Voltage-Min | 5 V |
| Reverse Voltage-Max | 5 V |
| Semiconductor Material | Silicon |
| Shape | SQUARE |
| Size | 2.4 mm |
| Surface Mount | NO |

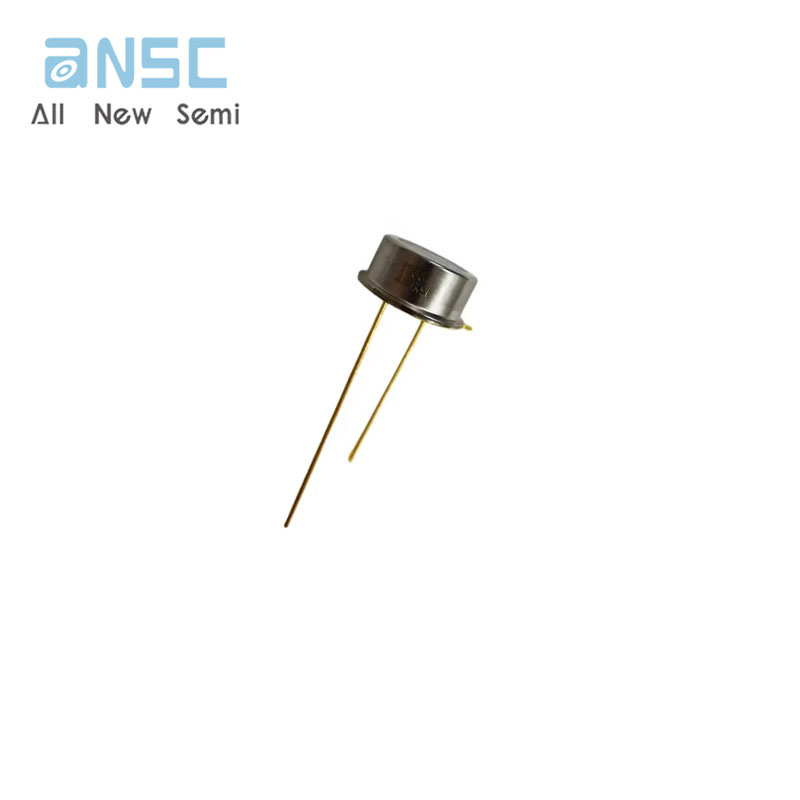

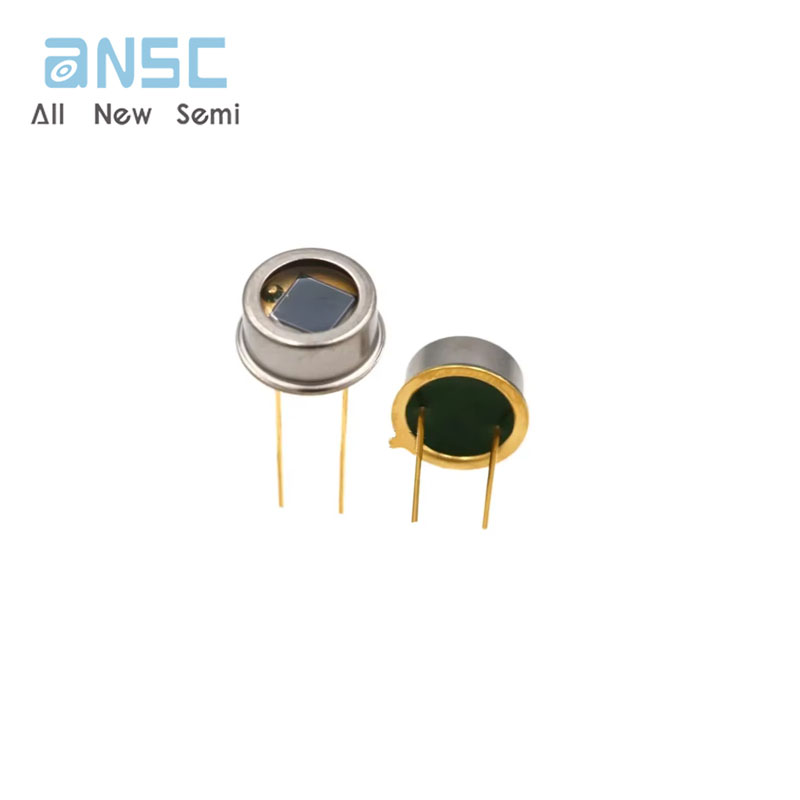

Actual image of the product
