Product Description
The ZGM130S037HGN2 is a high-performance RF transceiver module designed for use in various industrial-grade applications. This module operates within the General ISM frequency range, offering reliable communication solutions for IoT devices, smart home systems, and other wireless applications. The ZGM130S037HGN2 is part of the Z-Wave series, known for its robustness and compatibility with a wide range of protocols.
Product Features
· Frequency Range: The module operates at frequencies between 863MHz and 876MHz, as well as 902MHz to 930MHz, making it versatile for different regional requirements.
· Data Rate: It supports a data rate of up to 100Kbps, ensuring efficient data transmission.
· Modulation: The module supports both 2FSK and GFSK modulation techniques, providing flexibility in communication protocols.
· Power Output: With an output power of 13dBm, this module ensures reliable signal transmission over long distances.
· Serial Interfaces: Equipped with multiple serial interfaces such as ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, and UART, it offers extensive connectivity options.
· Operating Temperature: The module can operate within a temperature range of -40°C to 85°C (TA), making it suitable for harsh environments.
· Memory Size: It features 512kB Flash memory and 64kB RAM for storing firmware and data.
Product Applications
Primary Applications:
IoT Devices:
The module is ideal for IoT applications requiring reliable wireless communication.
Smart Home Systems:
It can be used in smart home devices such as sensors and actuators.
Industrial Automation:
The module's robustness makes it suitable for industrial automation systems.
Secondary Applications:
Wireless Sensor Networks (WSNs)
Medical Devices
Automotive Systems
Product Description
| Type | Description |
| ANSC PART# | ANSC -ZGM130S037HGN2 |
| Category | RF and Wireless |
| RF Transceiver Modules and Modems | |
| Mfr | / |
| Series | Z-Wave® |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | Z-Wave® |
| Modulation | 2FSK, GFSK |
| Frequency | 863MHz ~ 876MHz, 902MHz ~ 930MHz |
| Data Rate | 100Kbps |
| Power - Output | 13dBm |
| Sensitivity | -102.6dBm |
| Serial Interfaces | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART |
| Antenna Type | Antenna Not Included |
| Utilized IC / Part | ZGM130S |
| Memory Size | 512kB Flash, 64kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 9.5mA ~ 9.9mA |
| Current - Transmitting | 13.3mA ~ 40.7mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 64-LFLGA |
| Base Product Number | ZGM130 |

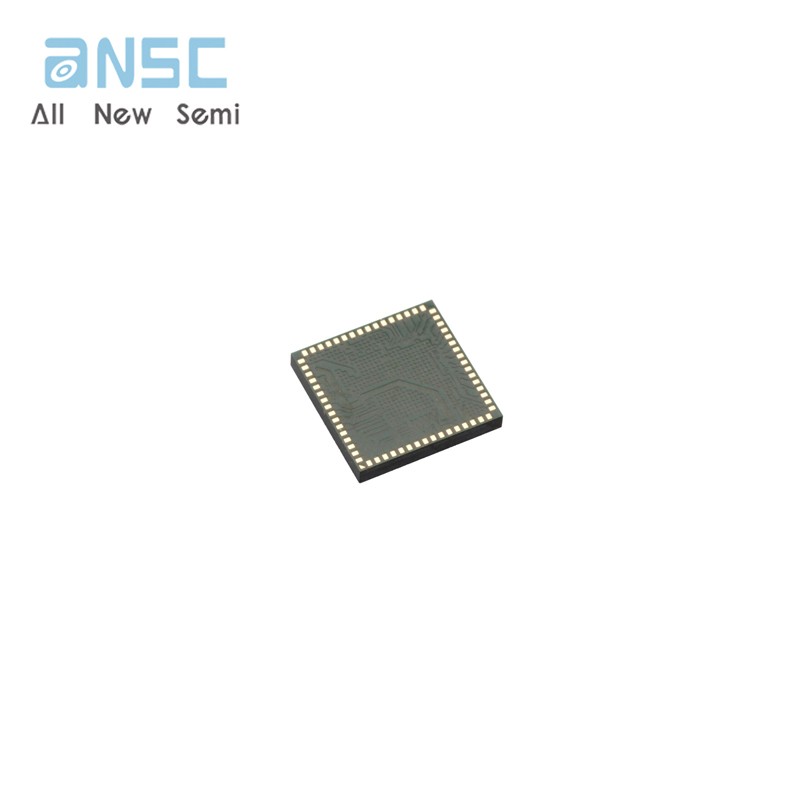

Actual image of the product

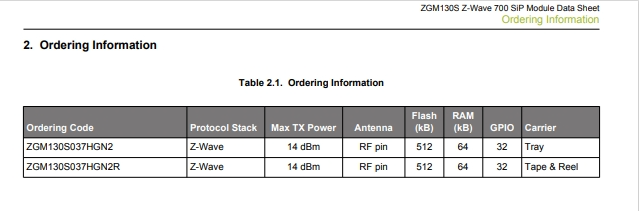

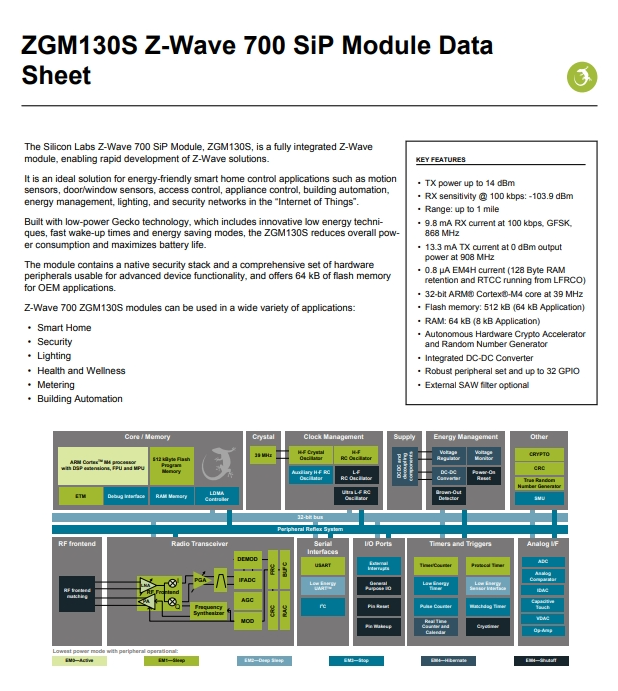

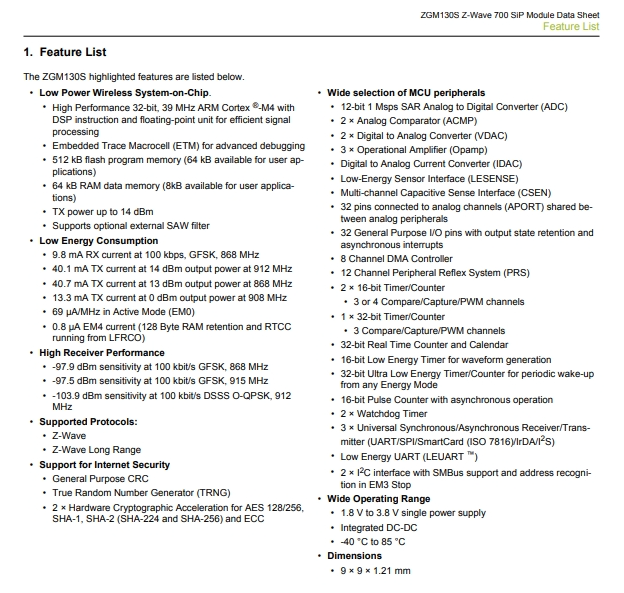

Product datasheet
For more information, please download
