Product Details
FEATURES:
• Pure SiliconTM Clock Oscillator
• MEMS Technologyby Discera
• Low Power Consumption <10mA
• Low Stand by Current <1uA
• Exceptional Stability Over Temp. at 40 to +85°C
• Available over Extended Temp Range
• Low Cost-Compact QFN Plastic Packaging
• Compact Package design
• Capable of surviving up-to 30kg Mechanical Shock (see note #1)
APPLICATIONS:
• CCD Clock for VTR Camera
• Equipment Connected to PCs
• Low Profile Equipment
• Lower Cost Crystal Oscillator Replacement
• Computers and Peripherals
• Portable Electronics (MP3 Players, Games)
• Consumer Electronics such as TV’s, DVR’s, etc.
• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
• Demanding Military & Automotive Electronics
Product Description
|
Type |
Description |
|---|---|
|
PART# |
ASFLMB-8.000MHZ-LY-T |
|
Category |
Crystals, Oscillators, Resonators Oscillators |
|
Mfr |
/ |
|
Series |
ASFLMB, Pure Silicon™ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Base Resonator |
MEMS |
|
Type |
XO (Standard) |
|
Frequency |
8 MHz |
|
Function |
Standby (Power Down) |
|
Output |
LVCMOS |
|
Voltage - Supply |
1.8V ~ 3.3V |
|
Frequency Stability |
±10ppm |
|
Absolute Pull Range (APR) |
- |
|
Operating Temperature |
-40°C ~ 85°C |
|
Current - Supply (Max) |
16mA |
|
Ratings |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
4-SMD, No Lead |
|
Supplier Device Package |
4-SMD (5x3.2) |
|
Size / Dimension |
0.197" L x 0.126" W (5.00mm x 3.20mm) |
|
Height - Seated (Max) |
0.035" (0.90mm) |
|
Current - Supply (Disable) (Max) |
15µA |

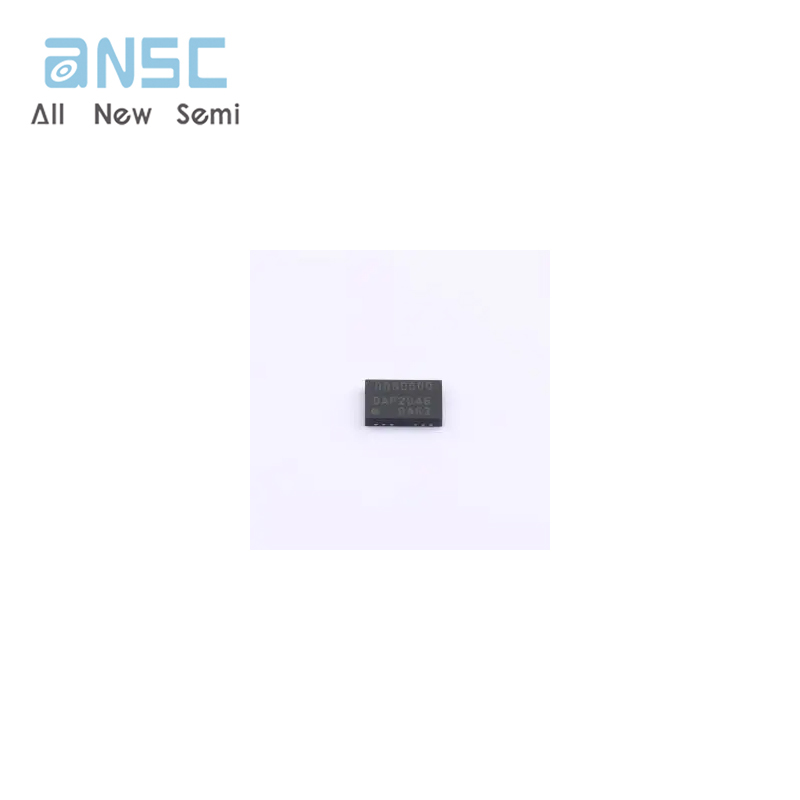

Actual image of the product
