Product Details
The MPX2050 series device is a silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output — directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin–film resistor network integrated on–chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation.
Features
• Temperature Compensated Over 0°C to +85°C
• Unique Silicon Shear Stress Strain Gauge
• Easy to Use Chip Carrier Package Options
• Ratiometric to Supply Voltage
• Differential and Gauge Options
• ±0.25% Linearity (MPX2050)
Application Examples
• Pump/Motor Controllers
• Robotics
• Level Indicators
• Medical Diagnostics
• Pressure Switching
• Non–Invasive Blood Pressure Measurement
Product Description
Type | Description |
|---|---|
| PART# | MPX2050DP |
Category | Sensors, Transducers Pressure Sensors, Transducers |
Manufacturer | / |
Series | MPX2050 |
Packaging | Tray |
Part Status | Active |
Applications | Board Mount |
Pressure Type | Differential |
Operating Pressure | 7.25PSI (50kPa) |
Output Type | Wheatstone Bridge |
Output | 0 mV ~ 40 mV (10V) |
Accuracy | - |
Voltage - Supply | 10V ~ 16V |
Port Size | Male - 0.19" (4.93mm) Tube, Dual |
Port Style | Barbed |
Features | Temperature Compensated |
Termination Style | PC Pin |
Maximum Pressure | 29.01PSI (200kPa) |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Through Hole |
Package / Case | 4-SIP Module |
Supplier Device Package | - |
Base Product Number | MPX2050 |

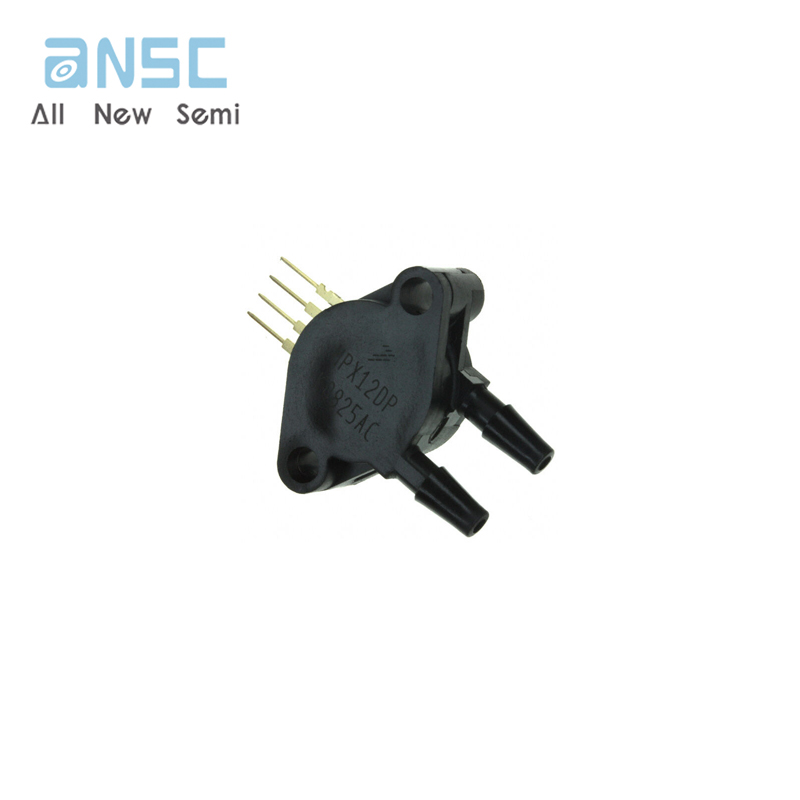

Actual image of the product
