Product Details
Type ER/ERV Series
A tough silicone coated power resistor. The coating and marking are resistant to Trichloroethene VG, Genklene LV Hot and Cold, Arklone A, Flourosil E, Freon TMS, Arklone L Hot and Cold and Arklone F Hot. If the resistor is in contact with the PCB the maximum dissipation to avoid damage to the PCB may be ascertained by reference to the hot spot temperature graph. Vertical mounting style is available. The ER series is suited to a wide range of industrial, control, medical and consumer applications.
Key Features
■ High Power Dissipation
■ Tough Silicone Coating
■ Special Pulse Styles Available
■ 0.5% Tolerance Available
■ Resistant to Most Solvents
■ Vertical Mount Styles Available
■ Custom Designs Welcomed
■ Widely Available via Distribution
Product Description
Type | Description |
|---|---|
| PART# | ER5822RJT |
Category | Resistors Through Hole Resistors |
Mfr | / |
Series | ER, CGS |
Packaging | Cut Tape (CT) Tape & Box (TB) |
Part Status | Active |
Resistance | 22 Ohms |
Tolerance | ±5% |
Power (Watts) | 7W |
Composition | Wirewound |
Features | - |
Temperature Coefficient | 0/ +60ppm/°C |
Operating Temperature | -55°C ~ 200°C |
Package / Case | Axial |
Supplier Device Package | Axial |
Size / Dimension | 0.315" Dia x 0.874" L (8.00mm x 22.20mm) |
Height - Seated (Max) | - |
Number of Terminations | 2 |
Failure Rate | - |

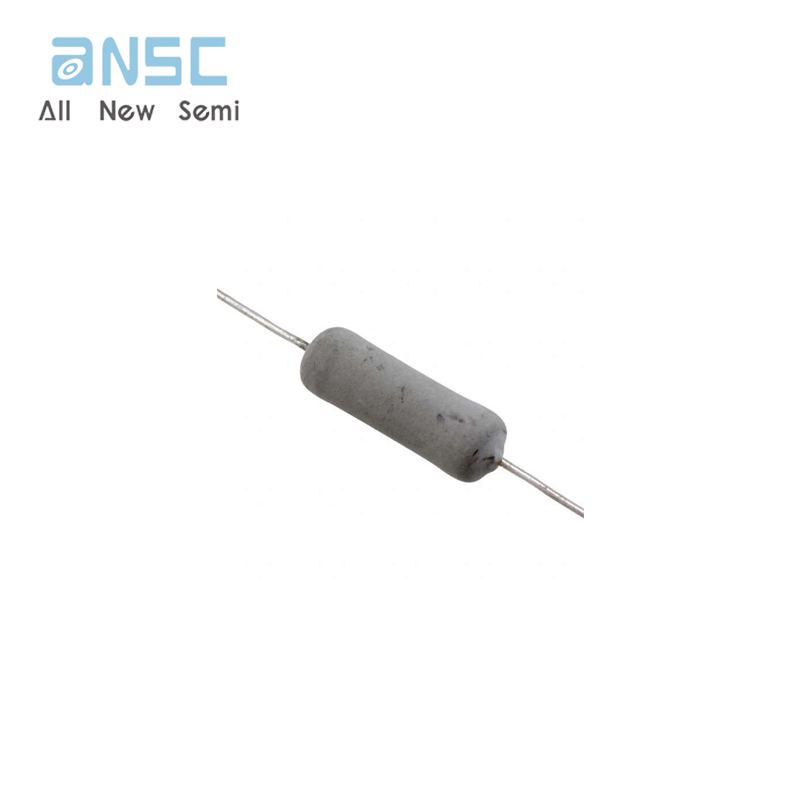

Actual image of the product
