Product Overview
A reverse leakage current of 100μA volts can be generated by this device.A rectified current of 10A volts is averaged for this device.A value of 10A is the maximum forward current that can be allowed.This fuse has a current rating of 10A, which is the maximum current that will not deteriorate the fuse element over a long period.150A is the maximum value of surge current.As indicated by the data chart in the datasheets, the peak reverse is 100μA.
Product Features
a maximal reverse leakage current of 100μA volts
an average rectified current of 10A volts
a current rating of 10A
the peak reverse is 100μA
Product Applications
MBRB1045T4G applications of single-phase diode rectifier.
· DC motor control and drives
· Battery chargers
· Welders
· Power converters
· Reverse Polarity Protection
· Ultra High-Speed Switching
· Freewheeling
· Polarity Protection Diode
· Recirculating Diode
· Switching Diode
Product Description
| Type# | Description |
| ANSC PART# | ANSC- MBRB1045T4G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | onsemi |
| Series | SWITCHMODE™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 840 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MBRB1045 |

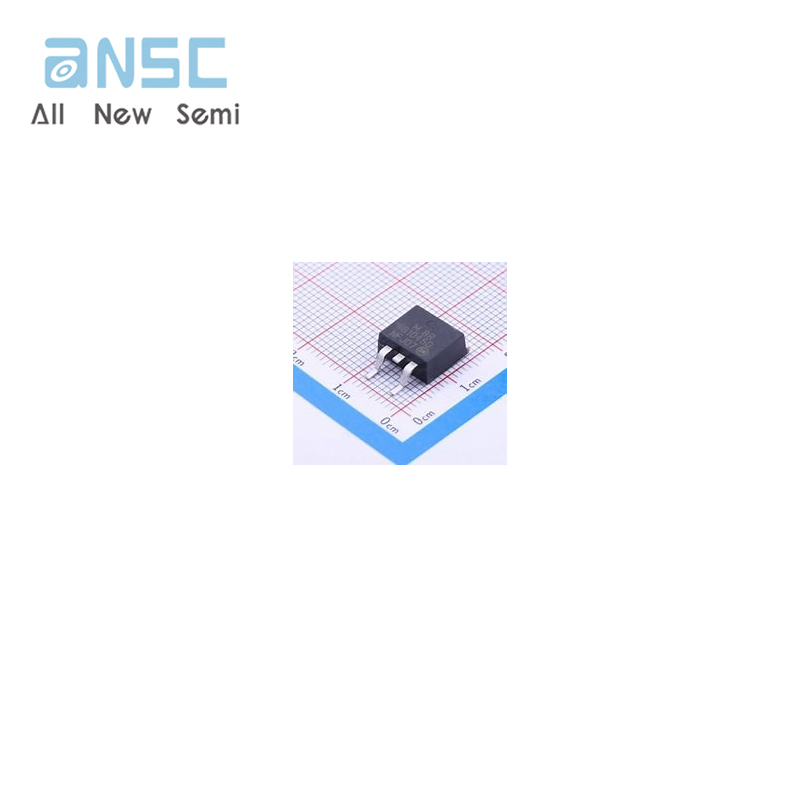

Product Photos

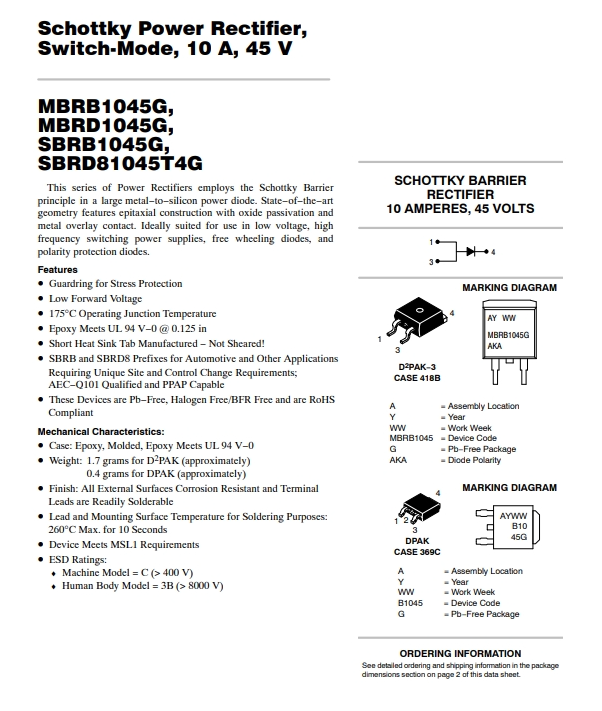

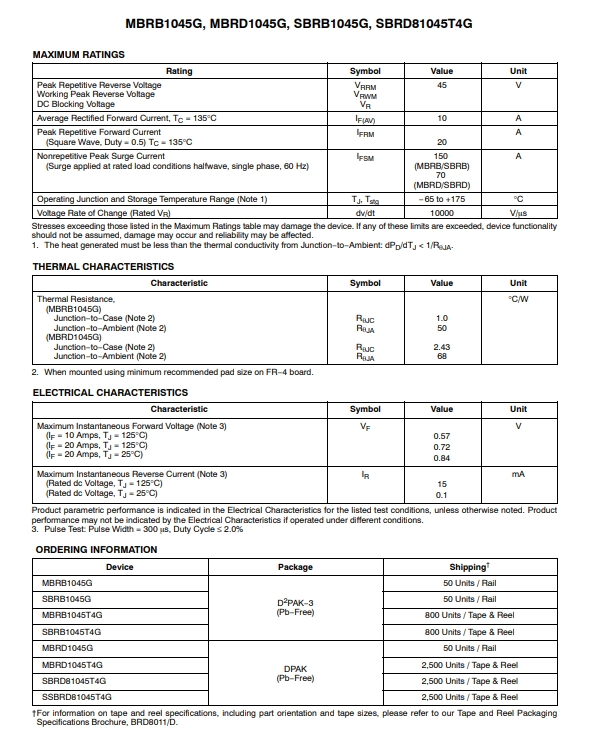

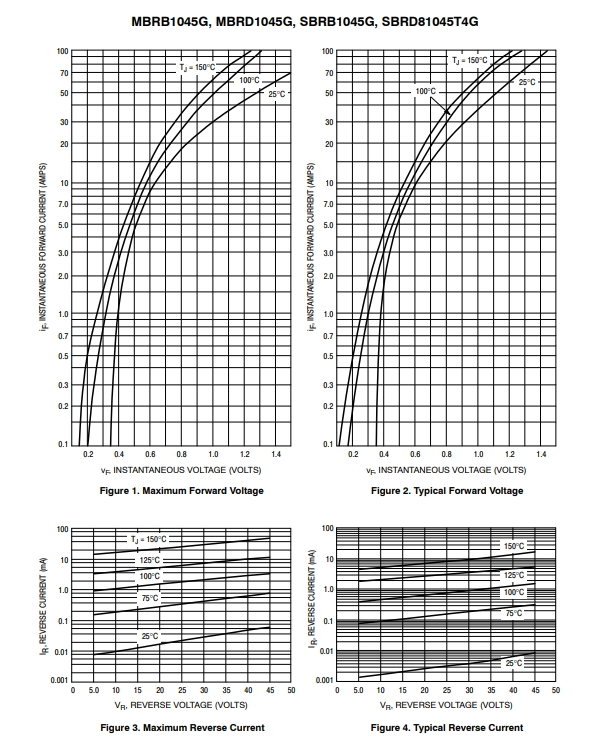

Product datasheet
For more information, please download
