Product Overview
An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 75 pF @ 15 V is its maximum input capacitance.Normal operation requires that the DS breakdown voltage remain above 30 V.For this transistor to work, a voltage 30 V is required between drain and source (Vdss).
Product Features
a 30 V drain to source voltage (Vdss)
Product Applications
NTNS4C69NTCG applications of single MOSFETs transistors.
· AC-DC Power Supply
· Synchronous Rectification for ATX 1 Server I Telecom PSU
· Motor drives and Uninterruptible Power Supplies
· Micro Solar Inverter
· DC/DC converters
· Power Tools
· Motor Drives and Uninterruptible Power Supples
· Synchronous Rectification
· Battery Protection Circuit
· Telecom 1 Sever Power Supplies
Product Description
| Type# | Description |
| ANSC PART# | ANSC- NTNS4C69NTCG |
| Type | Description |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 300mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.9 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 75 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 178mW (Ta) |
| Operating Temperature |
-55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-883 (XDFN3) (1x0.6) |
| Package / Case | 3-XFDFN |

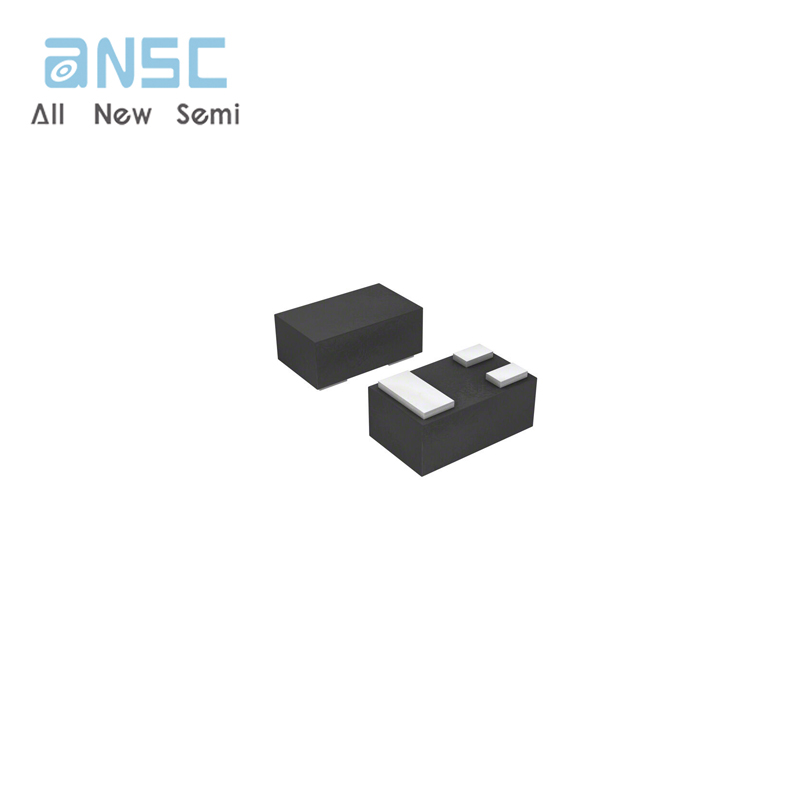

Product Photos

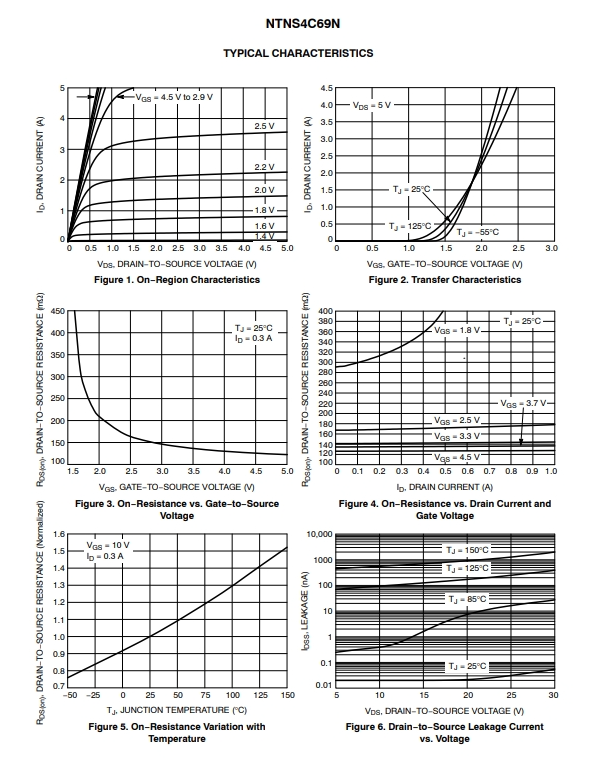

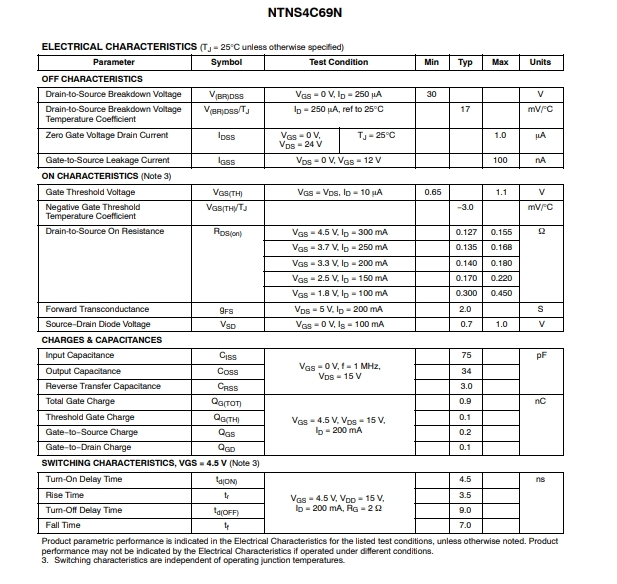

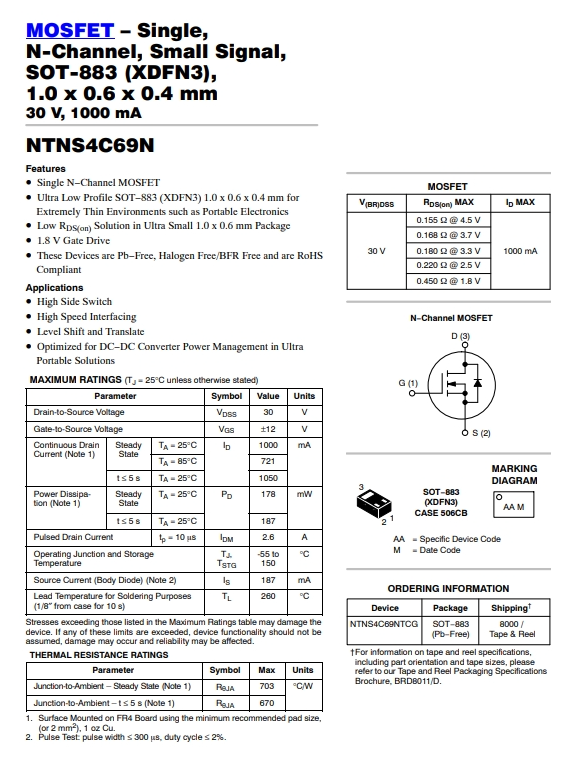

Product datasheet
For more information, please download
