Product Description
The FDD86367 is an N-Channel PowerTrench MOSFET from ON Semiconductor, designed for high-power applications in the automotive industry. This single-channel MOSFET is part of the JESD-609 code series and features a high input capacitance, low gate charge, and a maximum drain-to-source voltage of 80V.
Product Features
· High input capacitance (Ciss) of 4840pF at 40V
· Low gate charge (Qg) of 88nC at 10V
· N-Channel FET type with a single element configuration
· Drive voltage of 10V for maximum Rds On and minimum Rds On
· Operating temperature range of -55°C to 175°C TJ
· Power dissipation of 227W TJ
· Rds On of 4.2mΩ at 80A and 10V
· RoHS compliant and Pbfree
Product Applications
· Primary applications: High-power automotive applications, such as motor control, power conversion, and power distribution
· Secondary applications: General-purpose power switching, power conversion, and power distribution in industrial and consumer electronics
Product Description
| Type# | Description |
| ANSC PART# | ANSC- FDD86367 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series |
PowerTrench® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25掳C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 88 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4840 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 227W (Tj) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 (DPAK) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | FDD863 |

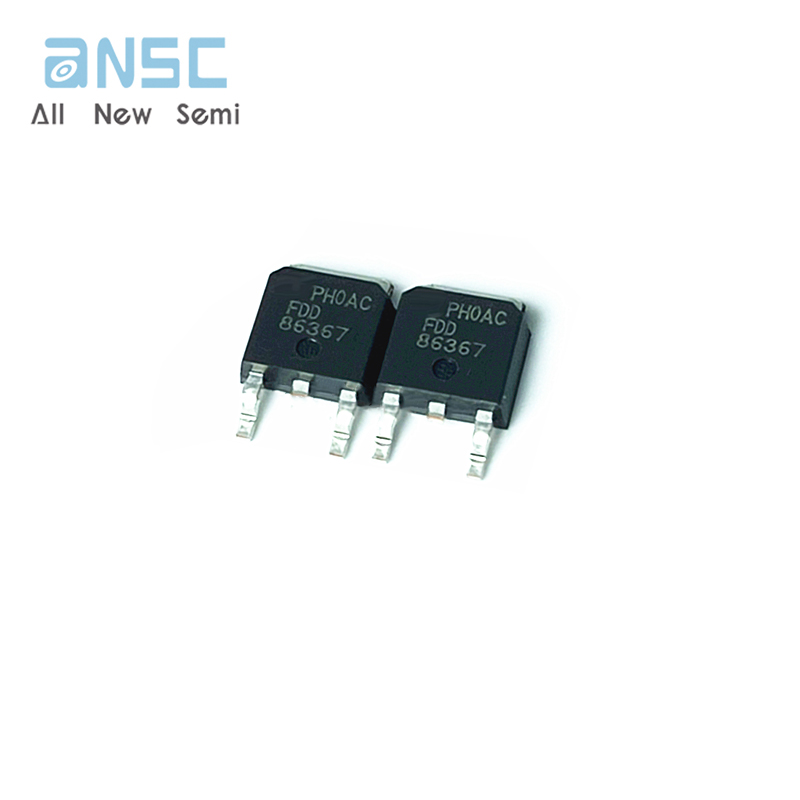

Product Photos

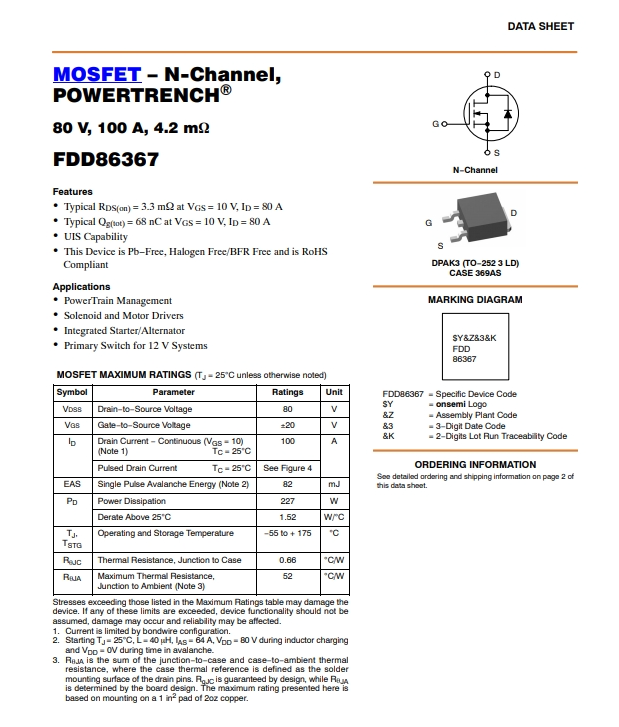

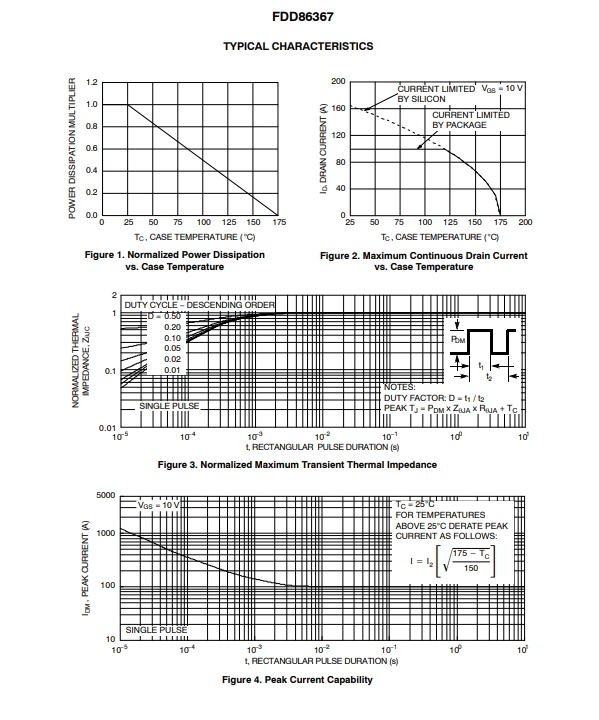

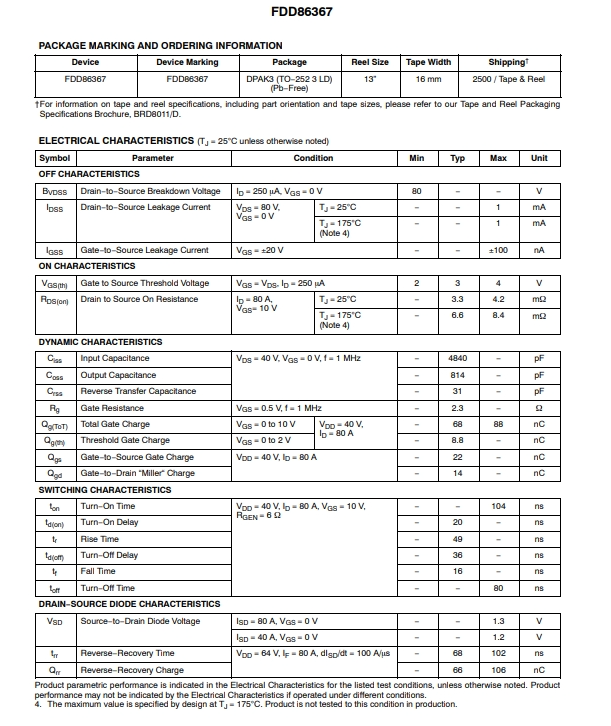

Product datasheet
