Product Details
General Description
This dual N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized use in small switching regulators, providing an extremely low RDS(ON) and gate charge (QG) in a small package.
Features
• 0.7 A, 20 V. RDS(ON) = 400 mΩ @ VGS = 4.5 V RDS(ON) = 550 mΩ @ VGS = 2.5 V
• ESD protection diode (note 3)
• Low gate charge
• High performance trench technology for extremely low RDS(ON)
• Compact industry standard SC70-6 surface mount package
Applications
• DC/DC converter
• Power management
• Loadswitch
Product Description
| Type | Description |
| ANSC PART# | ANSC- FDG6317NZ |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer |
/ |
| Series | PowerTrench® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Last Time Buy |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 700mA |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 700mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.1nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 66.5pF @ 10V |
| Power - Max | 300mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88 (SC-70-6) |
| Base Product Number | FDG6317 |

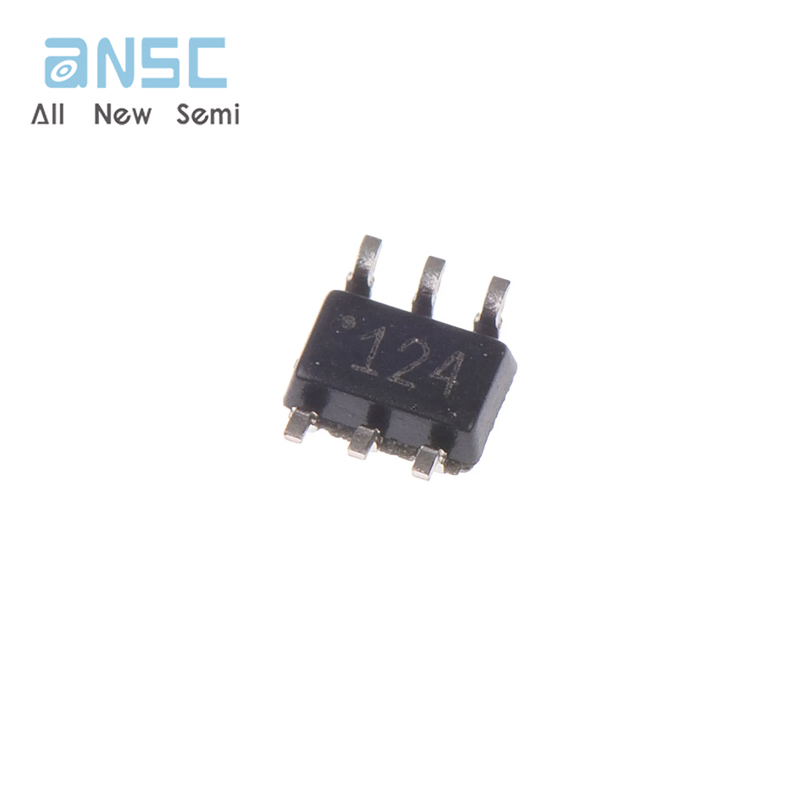

Actual image of the product

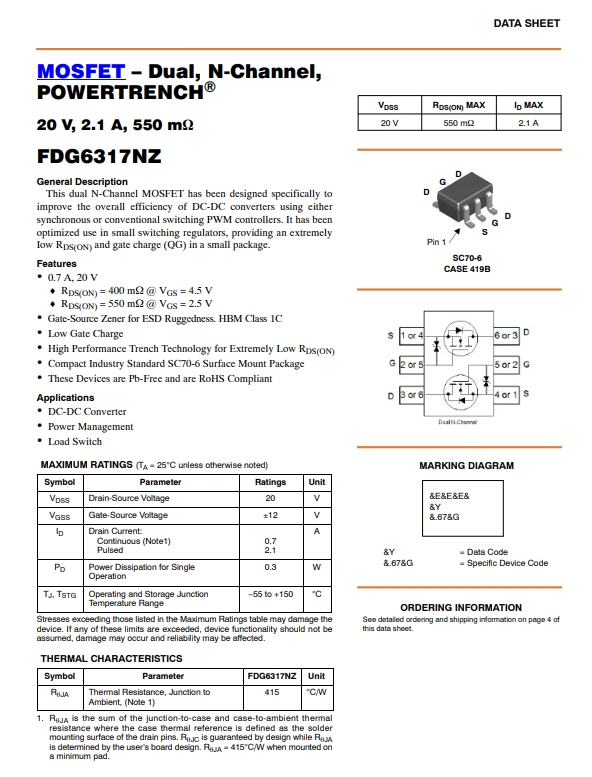

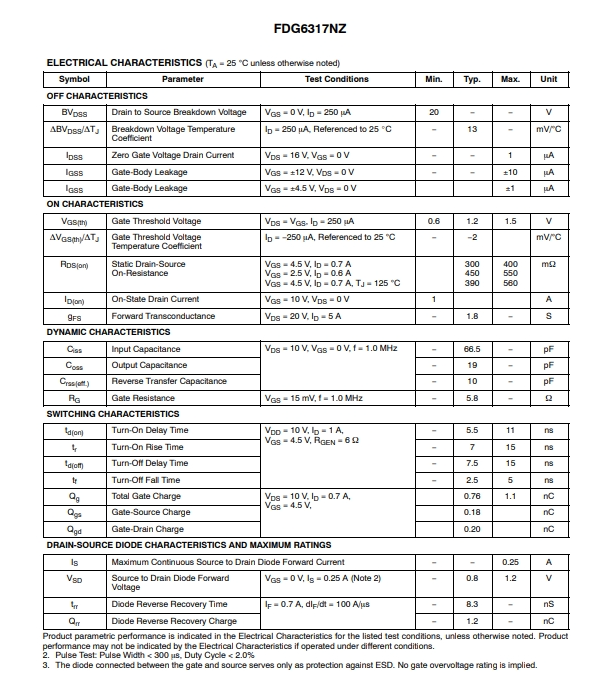

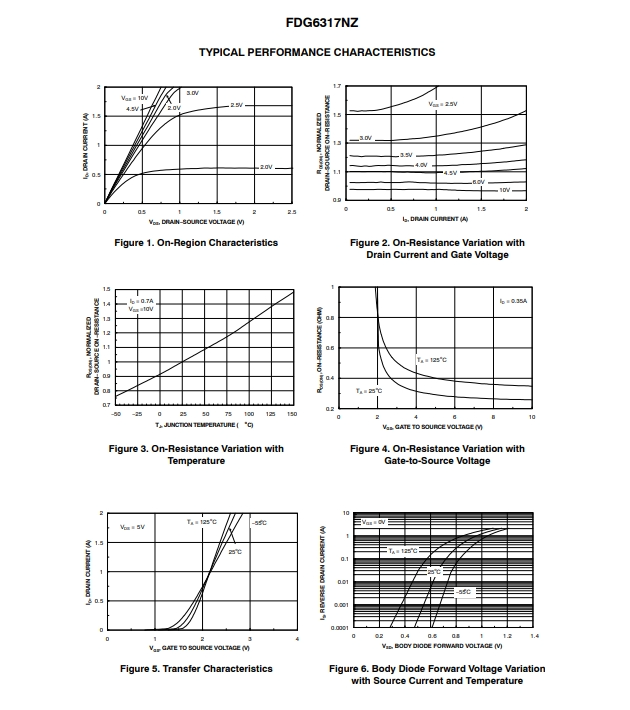

Product datasheet
