Product Details
Brief Description: The NVMFS5C410NWFAFT3G is an N-Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from ON Semiconductor, designed for automotive applications. It features a high current capability and is suitable for surface-mount applications.
Features:
High current capability: 46A continuous drain current at 25°C, 300A peak current at 25°C
High voltage rating: 40V drain-to-source voltage
Low on-resistance: 0.92mΩ at 50A, 10V
High temperature range: -55°C to 175°C
Surface-mount package: 8-PowerTDFN, 5 leads
RoHS3 compliant
AEC-Q101 qualified for automotive applications
Application Grade: The NVMFS5C410NWFAFT3G is designed for high-reliability applications, such as:
Automotive power systems
Industrial control systems
Power supplies
Motor control systems
Applications:
High-current switching applications
Power conversion and conditioning
Motor control and drive systems
Automotive power distribution and control
Industrial automation and control systems
This MOSFET is suitable for applications requiring high current capability, high voltage rating, and low on-resistance, such as power conversion, motor control, and automotive power systems. Its AEC-Q101 qualification makes it suitable for use in automotive applications, ensuring high reliability and quality.
Product Description
| Type# | Description |
| ANSC PART# | ANSC- NVMFS5C410NWFAFT3G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25掳C | 46A (Ta), 300A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 0.92mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.9W (Ta), 166W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
| Base Product Number | NVMFS5 |

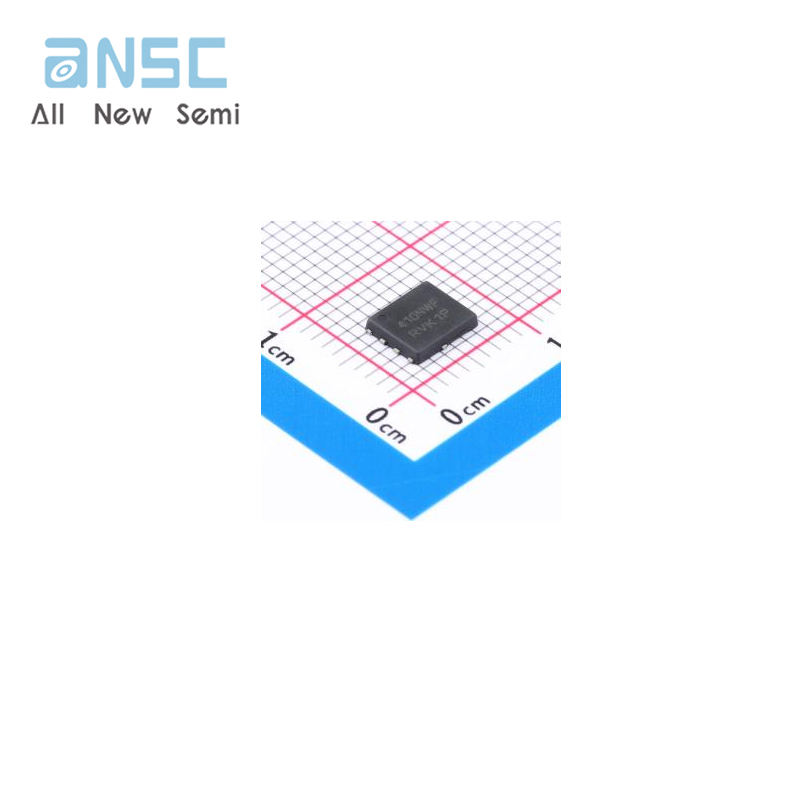

Product Photos

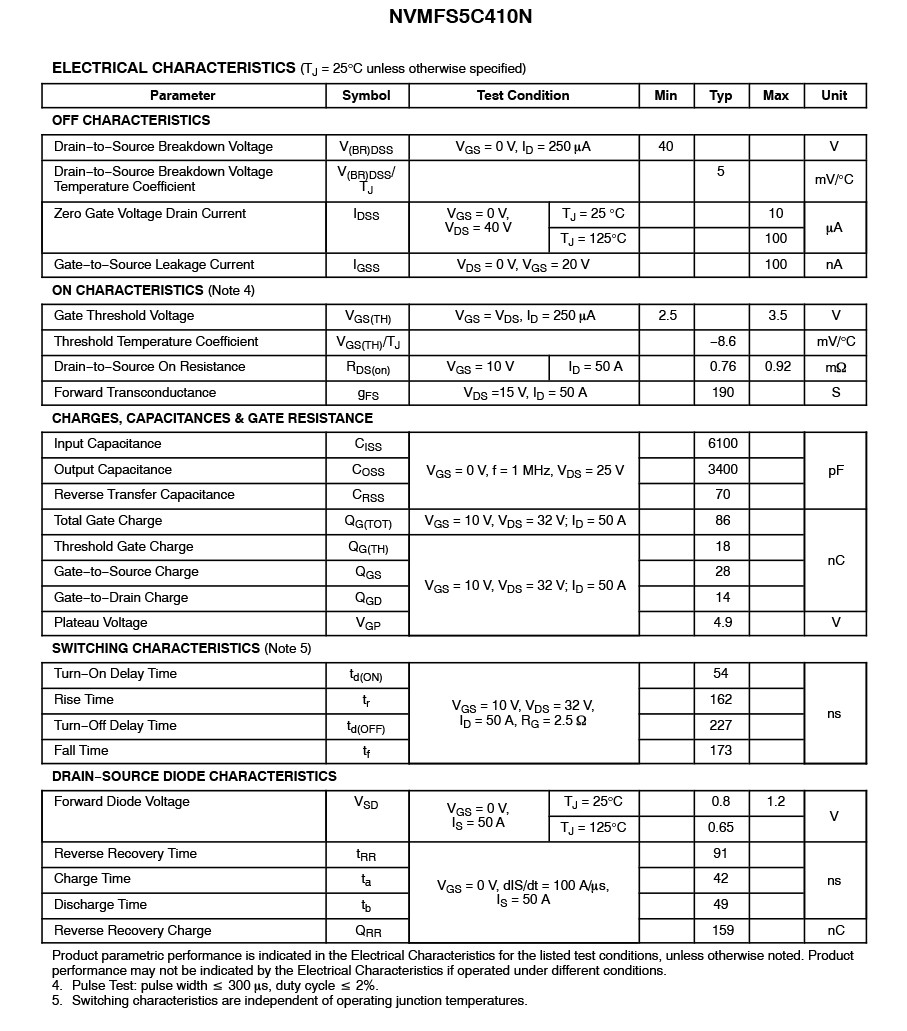

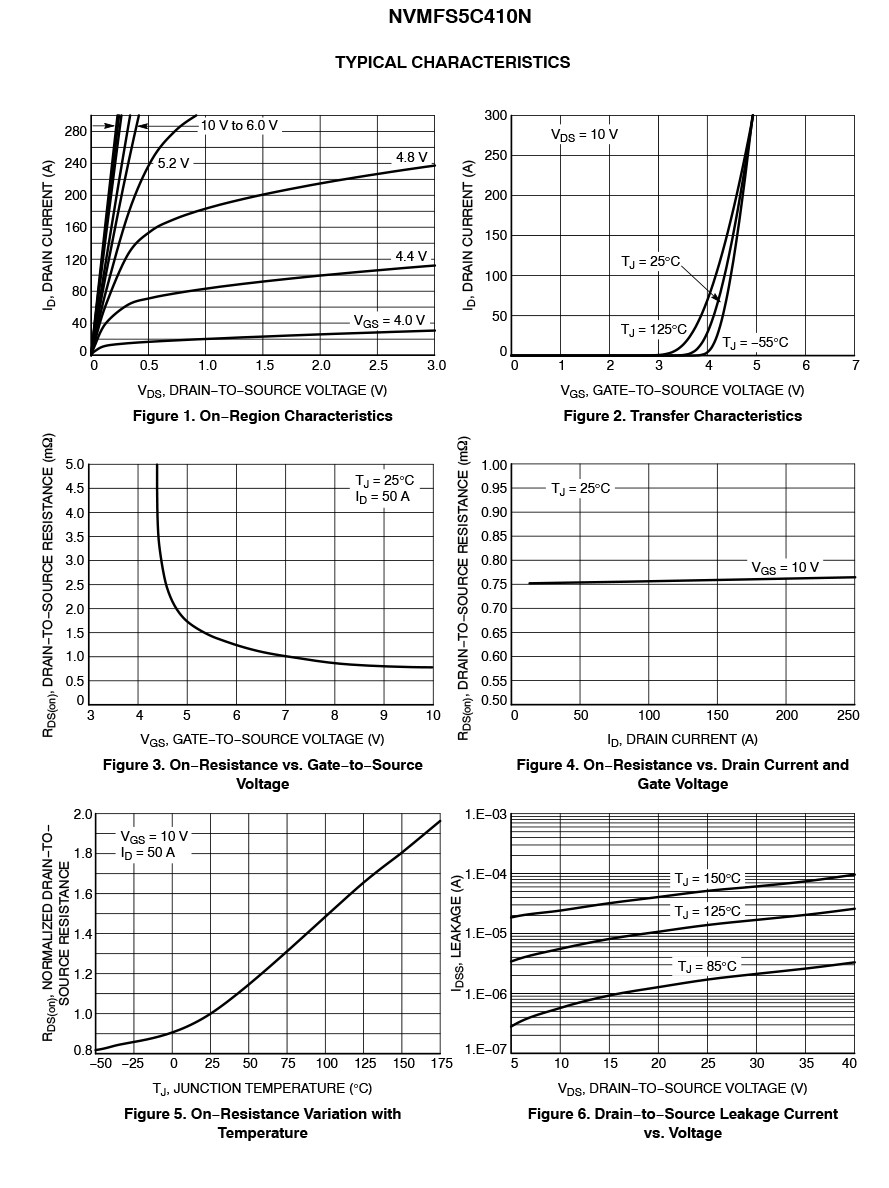

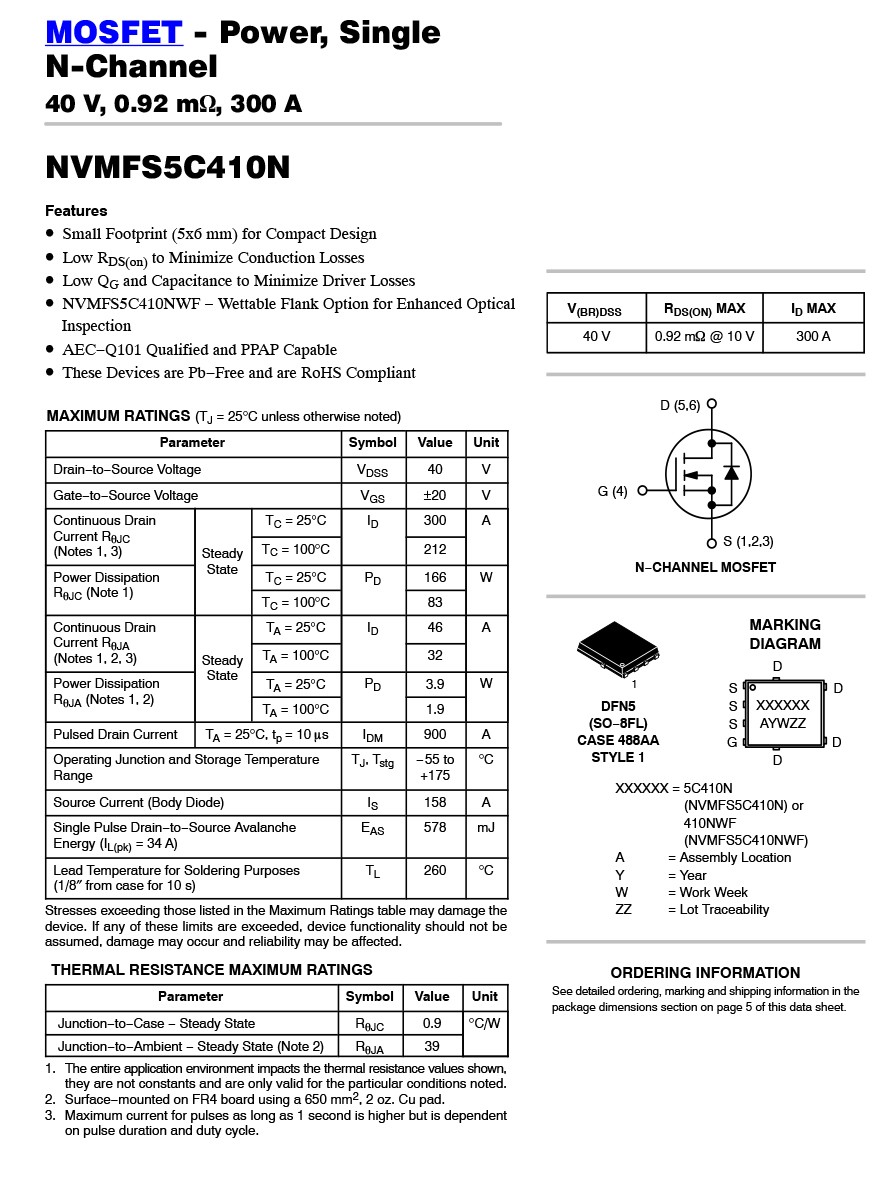

Product datasheet
For more information, please download
