Product Details
Description
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
General features
■ Ultra low threshold gate drive (2.7 V)
■ Standard outline for easy automated surface mount assembly
Applications
■ Switching application
Product Description
| Type# | Description |
| ANSC PART# | ANSC - STS5DNF60L |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | ST |
| Series | STripFET™ II |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1030pF @ 25V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | STS5DNF60 |

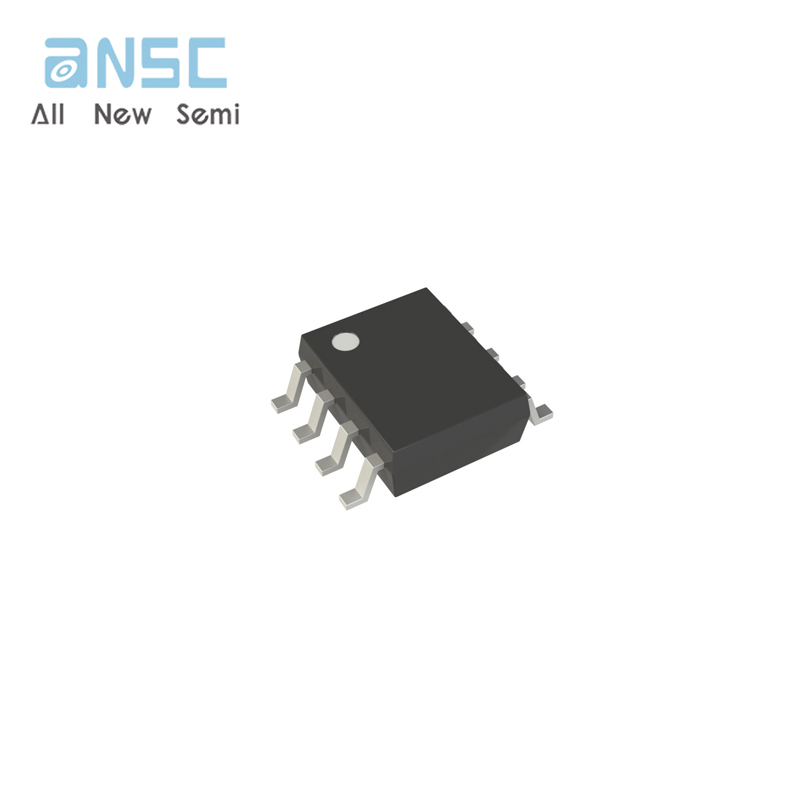

Product Photos

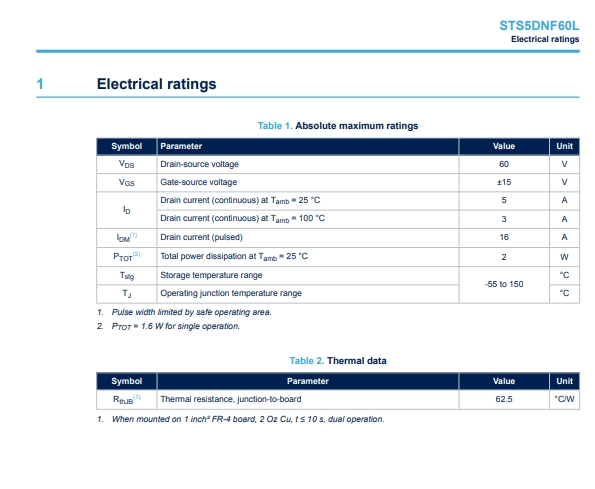

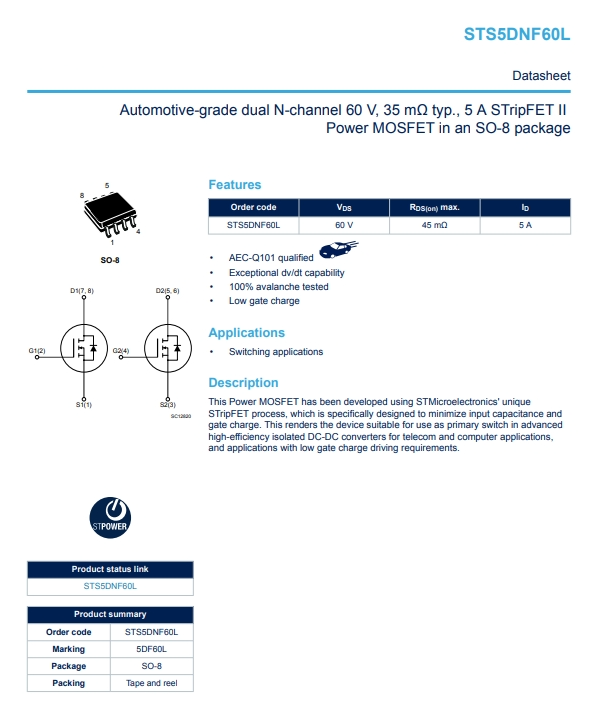

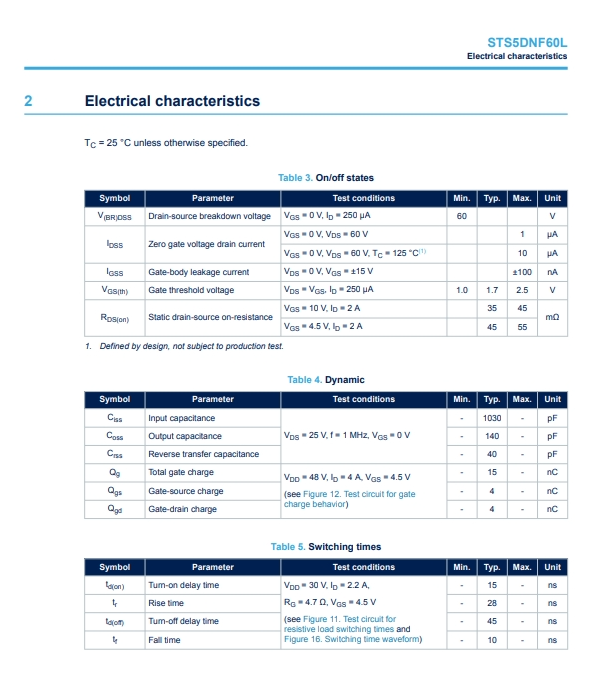

Product datasheet
