Product Description

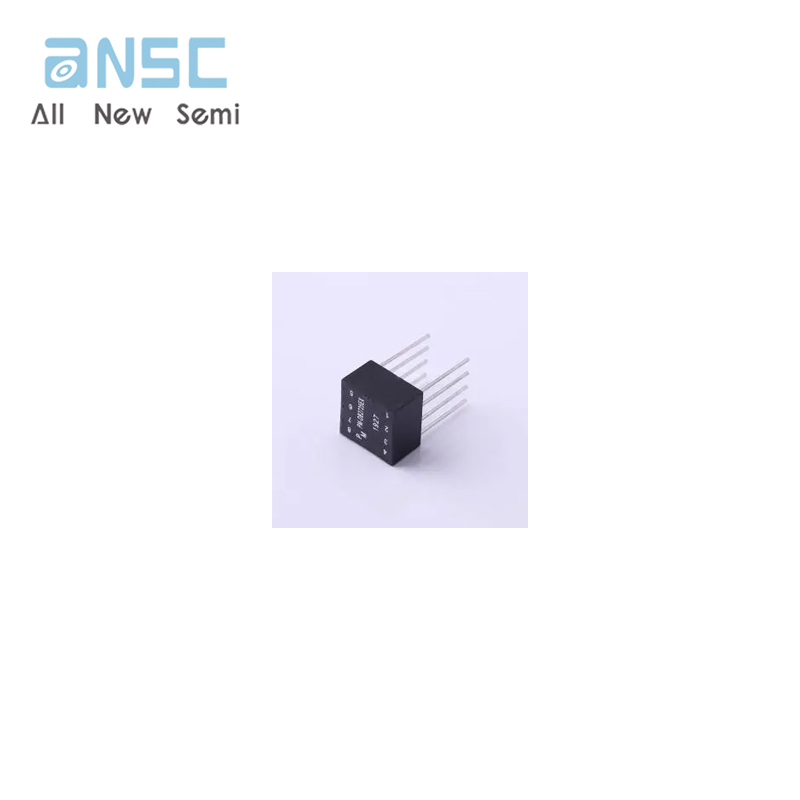

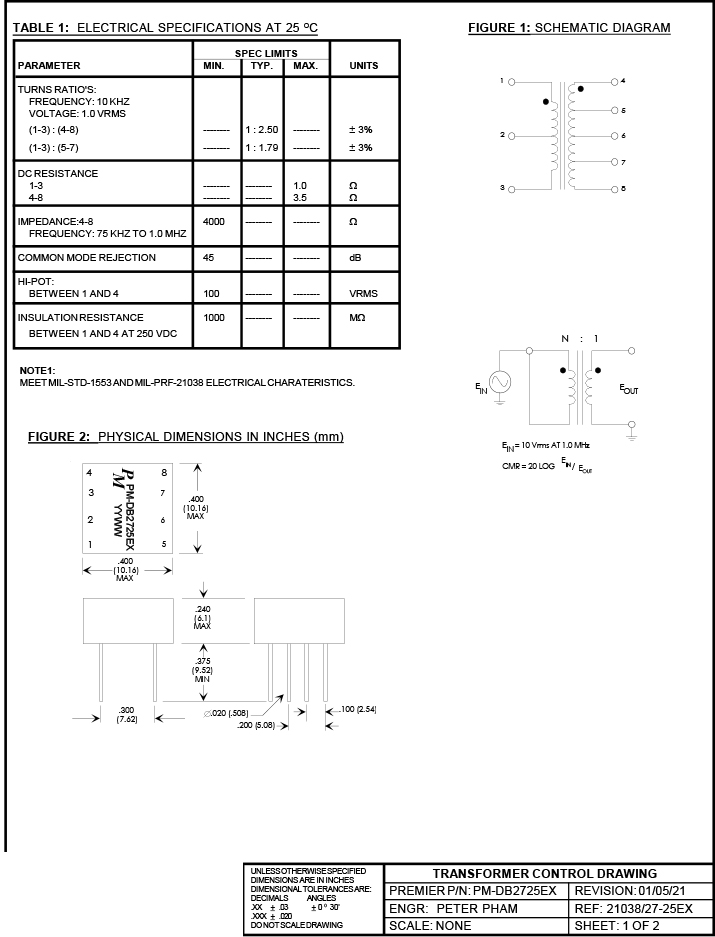

The PM-DB2725EX is a high-performance pulse transformer designed and manufactured by Holt Integrated Circuits, Inc. This transformer is part of the Pulse Transformers category and is designed to provide reliable and efficient signal isolation and conversion in various applications.

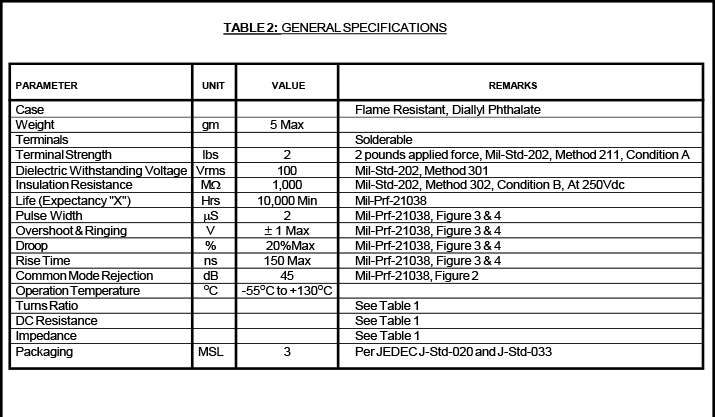

Product Features

· Compact design with a height of 6.1mm, depth of 10.16mm, and length of 10.16mm, making it suitable for space-constrained designs

· DIP package type with 8 terminals for easy connection and mounting

· Through-hole mounting with PC Pin lead style for secure and reliable installation

· Operating temperature range of -55°C to 130°C, ensuring reliable performance in harsh environments

· High common-mode rejection ratio (CMRR) of >45dB, reducing noise and interference

· Low primary and secondary side DCR values of 1Ω and 3.5Ω, respectively, for efficient signal transmission

· Turn ratio options of 1:2.5 and 1:1.79 for flexible design and customization

Product Applications

· Primary applications: Signal isolation and conversion in industrial automation, medical devices, and telecommunications equipment

· Secondary applications: High-frequency signal processing, power supply design, and data transmission in automotive, aerospace, and defense industries

Embedded Modules:

· Various industrial control systems and automation devices that require signal isolation and conversion

· Medical devices and equipment that require reliable and efficient signal transmission

· Telecommunications equipment and networks that require high-frequency signal processing
