Product Details
BSS123,215 Overview
To operate this transistor, you need to apply a 100V drain to source voltage (Vdss).
BSS123,215 Features
a 100V drain to source voltage (Vdss)
BSS123,215 Applications
BSS123,215 applications of single MOSFETs transistors.
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
Lighting, Server, Telecom and UPS.
DC-to-DC converters
Product Description
| Type# | Description |
| ANSC PART# | ANSC -BSS123,215 |
| Ihs Manufacturer | / |
| Part Package | TO-236 |
| Package Description | SOT-23, 3 PIN |
| Pin Count | 3 |
| Manufacturer Package | SOT23 |
| Additional Feature | LOGIC LEVEL COMPATIBLE |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 100 V |
| Drain Current-Max (ID) | 0.15 A |
| Drain-source On Resistance-Max | 6 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 10 pF |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 0.25 W |
| Power Dissipation-Max (Abs) | 0.25 W |
| Qualification Status | Not Qualified |
| Reference Standard | IEC-134 |
| Surface Mount | YES |
| Terminal Finish | TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |

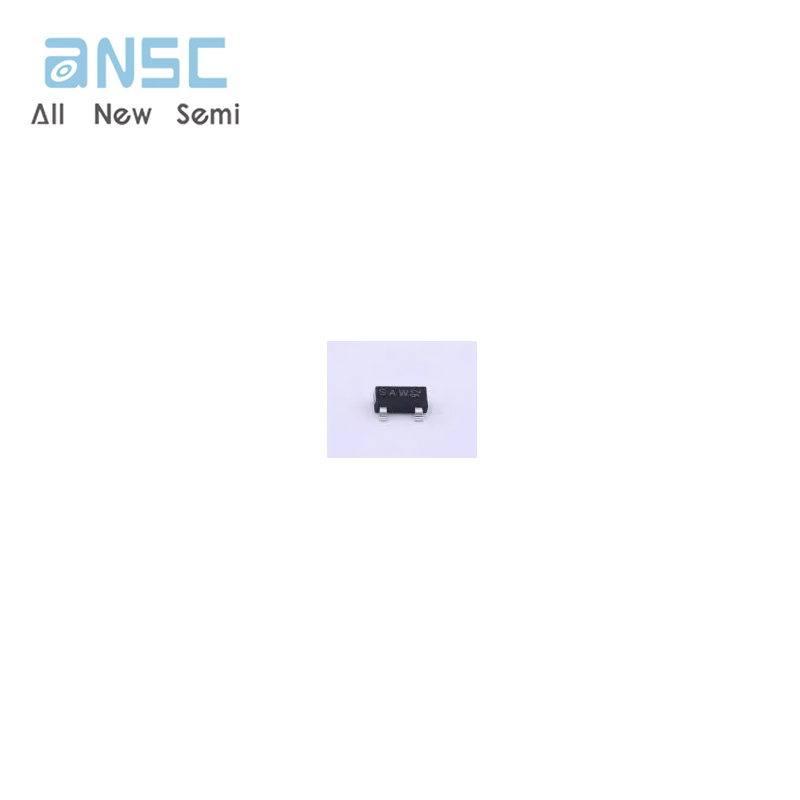

Actual image of the product

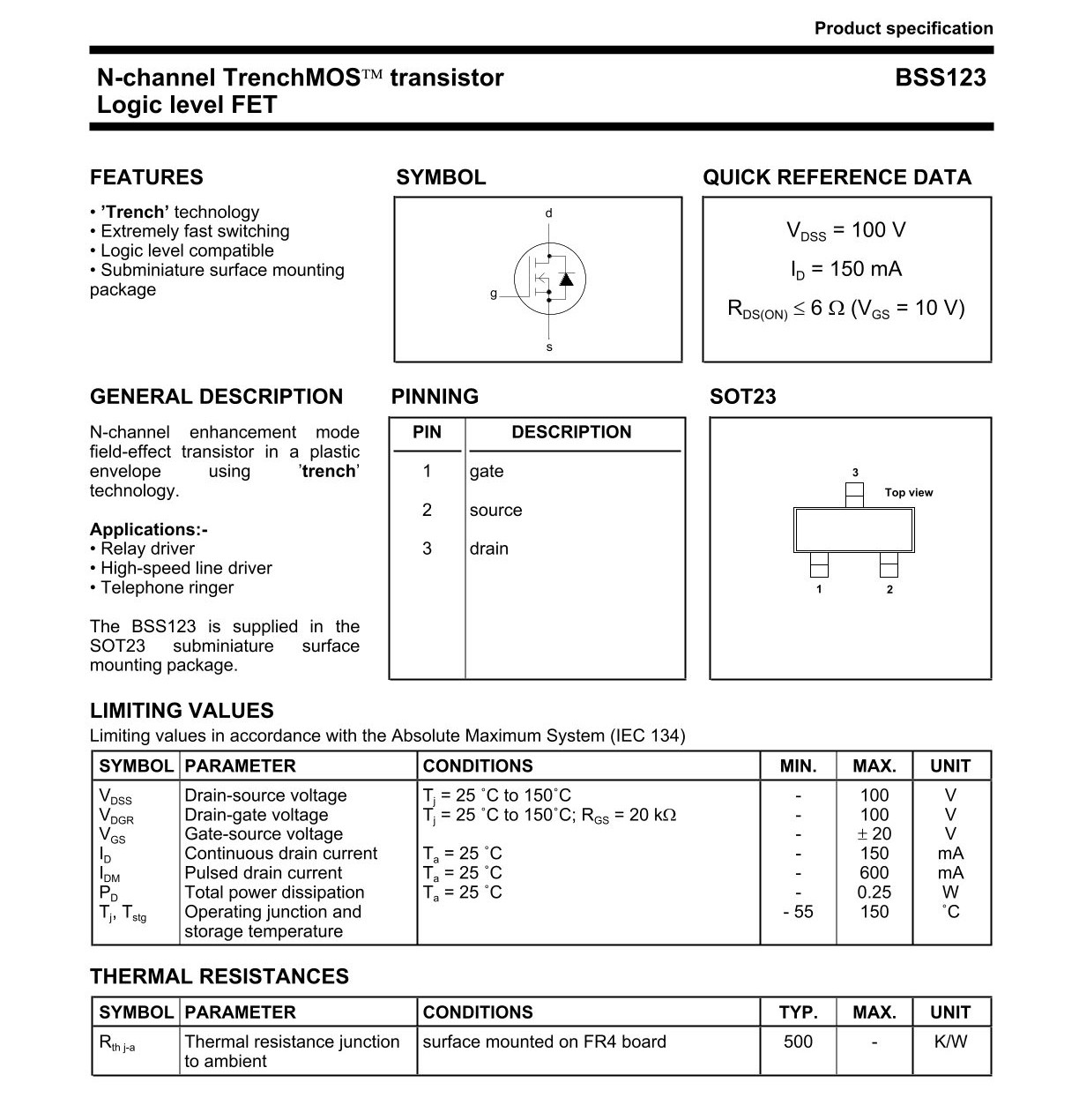

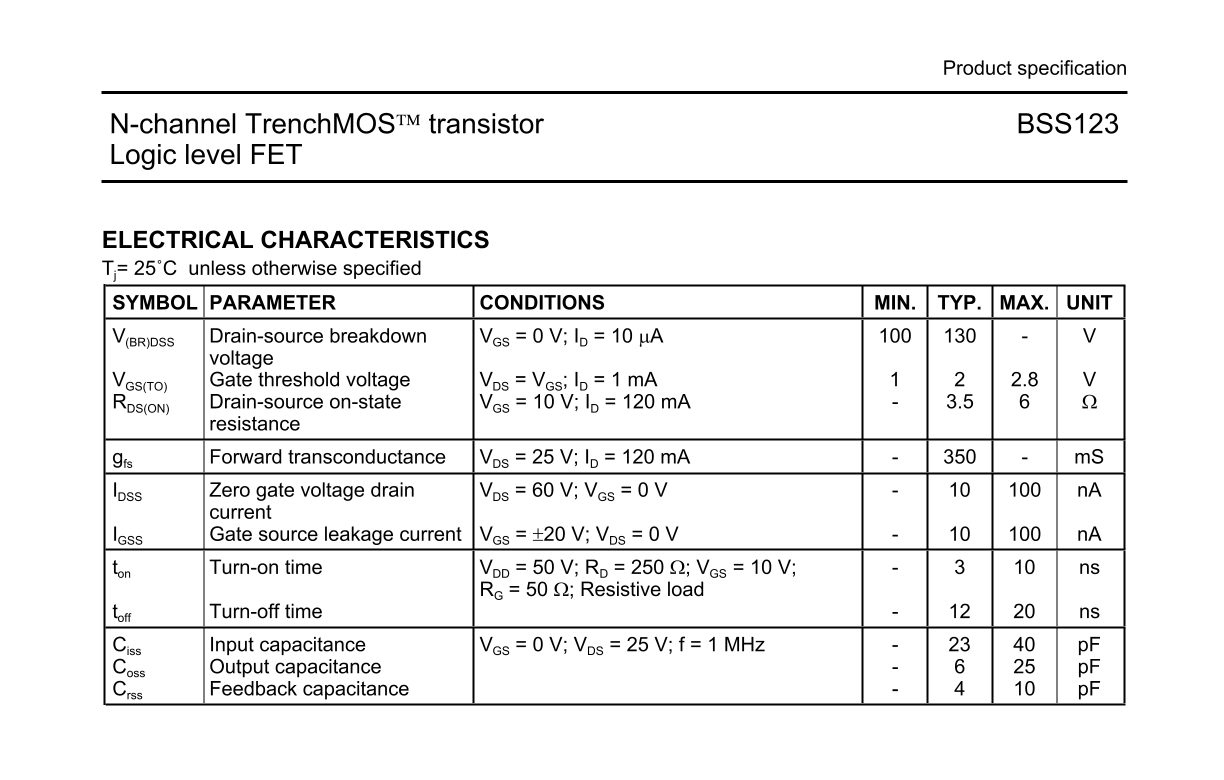

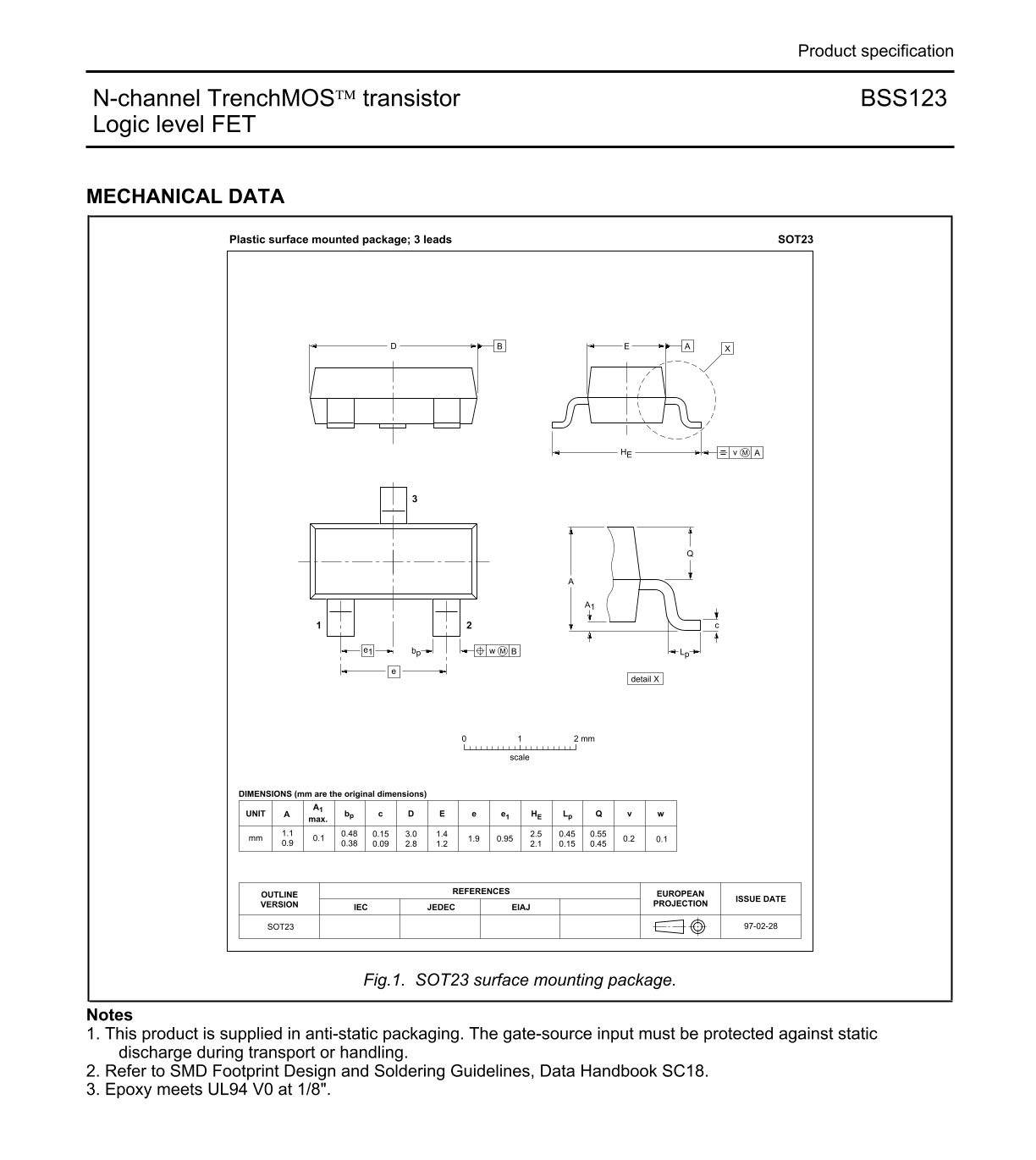

Product datasheet
For more information, please download
