Product Details
Product Overview
Designed to protect magnetic switches from damage, the Tape & Reel (TR) package contains the switches.
In order to ensure safety, magnetic switches are packaged in TO-236-3, SC-59, SOT-23-3 packages. In order to function well,
magnetic switches should be able to supply a maximum current of 4mA.
Product Features
Packaging: Tape & Reel (TR)
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 3V~28V
Operating Temperature: -40°C~125°C TA
Mounting Type: Surface Mount
Output Type: Open Drain
Maximum Supply Current: 4mA
Product Applications
AH3564Q-SA-7 Magnetic Switches applications.
Robotics control
Electric window lift
Convertible roof position
Motor assemblies
Medication dispensing control
Security and military applications
Detection of ferromagnetic
Discrimination of ferromagnetic
Localization of ferromagnetic
Conducting objects
Product Description
| Type# | Description |
| ANSC PART# | ANSC -AH3564Q-SA-7 |
| Category | Sensors, Transducers |
| Magnetic Sensors | |
| Switches (Solid State) | |
| Mfr | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Function | Omnipolar Switch |
| Technology | Hall Effect |
| Polarization | North Pole, South Pole |
| Sensing Range | ±6mT Trip, ±1mT Release |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 28V |
| Current - Supply (Max) | 4mA |
| Current - Output (Max) | 55mA |
| Output Type | Open Drain |
| Features | Temperature Compensated |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | AH3564 |

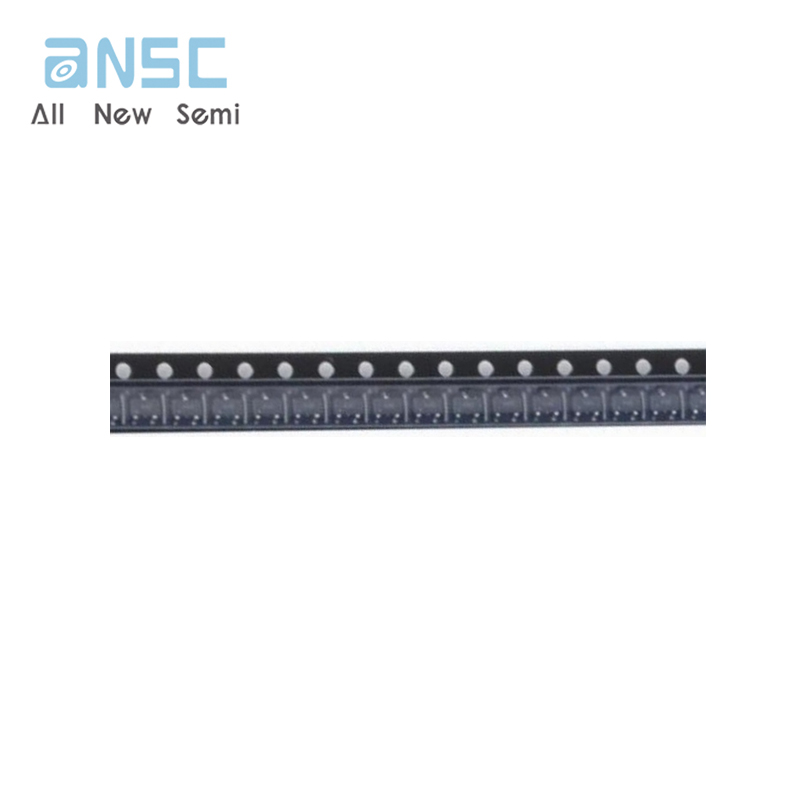

Product Photos
