Product Details
PolySwitch Resettable Devices
Radial-leaded Devices
• RoHS compliant
• Broadest range of radial-leaded resettable devices available in the industry
• Current ratings from 50mA to 15A
• Voltage ratings from 6cV (computer and electronic applications) to 99V
• Agency recognition : UL, CSA, TÜV
• Fast time-to-trip
• Low resistance Features
Benefits
• Many product choices give engineers more design flexibility
• Compatible with high-volume electronics assembly
• Assists in meeting regulatory requirements
• Higher voltage ratings allow use in new applications
Applications
• Satellite video receivers
• Industrial controls
• Transformers
• Computer motherboards
• Modems
• USB hub, ports and peripherals
• IEEE1394 ports
• CD-ROMs
• Game machines
• Battery packs
• Phones
• Fax machines
• Analog and digital line cards
• Printers
Product Description
| Type# | Description |
| PART# | RXEF050 |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer |
/ |
| Series | PolySwitch®, RXEF |
| Packaging | Bag |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 72V |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 1 A |
| Current - Max | 40 A |
| Time to Trip | 4 s |
| Resistance - Initial (Ri) (Min) | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.17 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) |
| Height - Seated (Max) | 0.539" (13.70mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
| Approval Agency | CQC, CSA, TUV, UL |

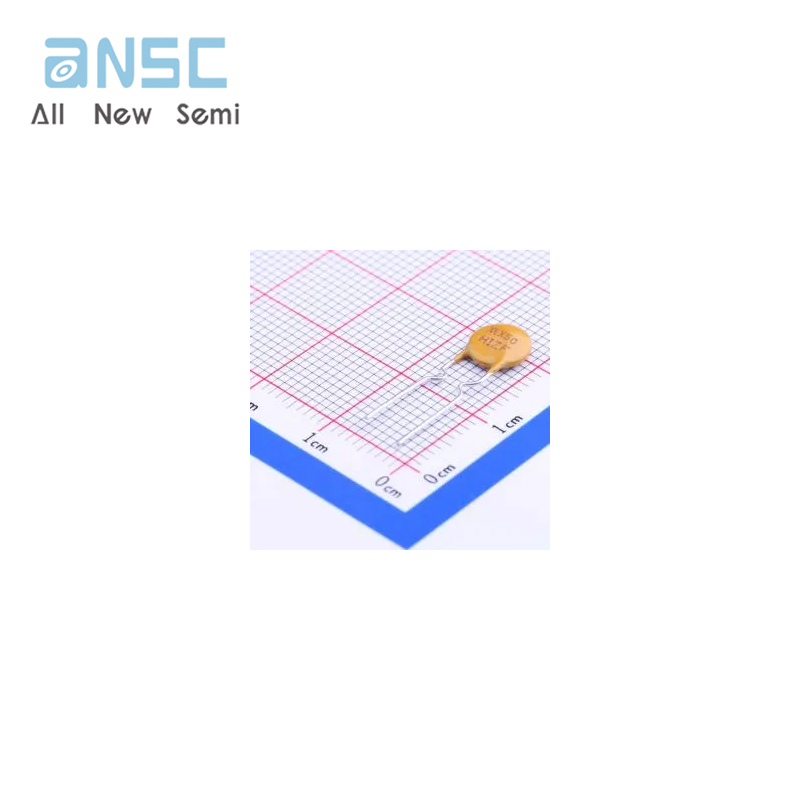

Actual image of the product
