Product Details
FEATURES
◾ Pressure ranges from 0 ... ± 50 mmHg to 0 ... 500 psi gage
◾ High accuracy
◾ TTL power supply
◾ Ratiometric 0.5 to 4.5 V output
◾ Dual-Inline pinning for easy PCB-mounting
◾ Excellent media compatibility
Product Description
| Type# | Description |
| PART# | 40pc015G1A |
| Category | Sensors, Transducers |
| Pressure Sensors, Transducers | |
| Manufacturer |
/ |
| Series | 40PC |
| Packaging | Tube |
| Part Status | Active |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±4% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.18" (4.57mm) Tube |
| Port Style | Barbless |
| Features | Amplified Output |
| Termination Style | PC Pin |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -45°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Supplier Device Package | - |
| Base Product Number | 40PC015 |

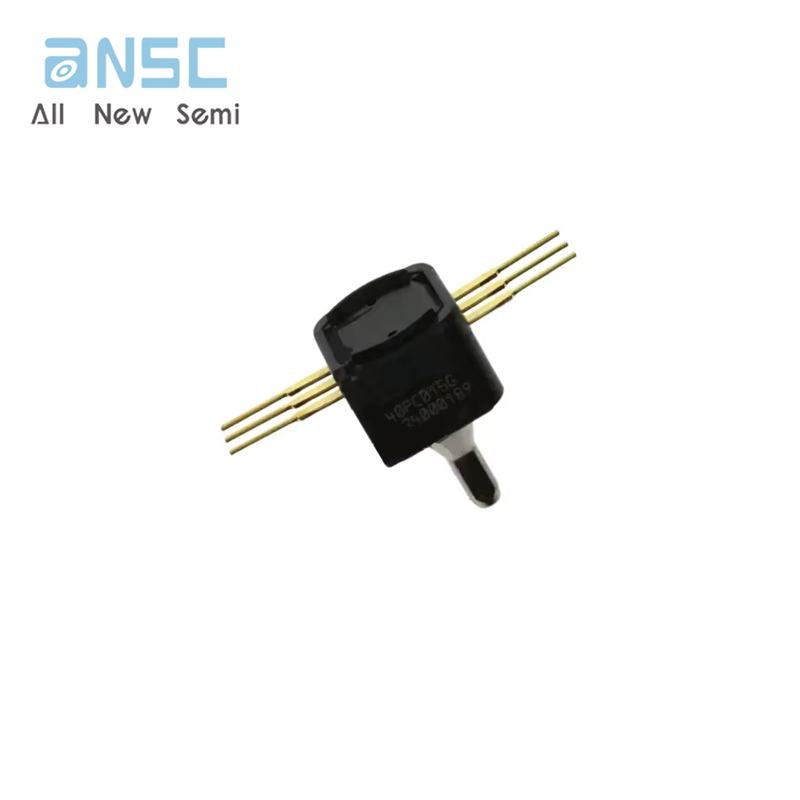

Actual image of the product
