Product Details
Features
■ Very small size 1210 footprint - 44 % smaller design than MF-MSMD Series
■ Fast tripping resettable circuit protection
■ Surface mount packaging for automated assembly
■ Agency recognition:
■ Patents pending
Applications
■ PC motherboards
■ PC modems
■ USB
■ Analog and digital line cards
■ IEEE 1394
■ General electronics: Phones, fax machines, televisions, printers, video equipment
Product Description
| Type# | Description |
| ANSC PART# | ANSC - MF-USMF005-2 |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer | / |
| Series | Multifuse®, MF-USMF |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Trip (It) | 150 mA |
| Current - Max | 10 A |
| Time to Trip | 1.5 s |
| Resistance - Initial (Ri) (Min) | 2.8 Ohms |
| Resistance - Post Trip (R1) (Max) | 50 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Base Product Number | MF-USMF |

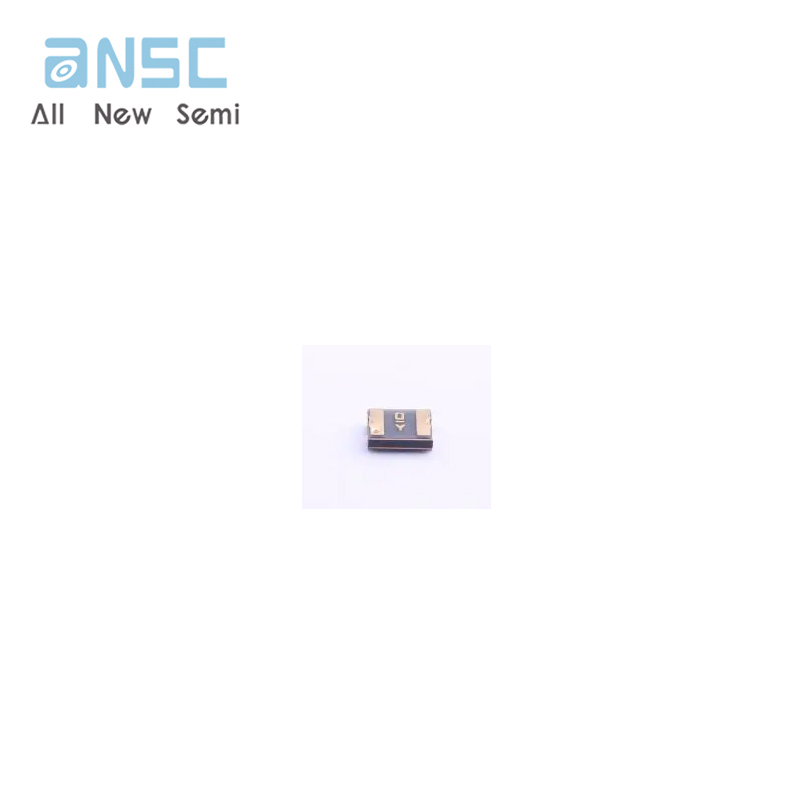

Actual image of the product

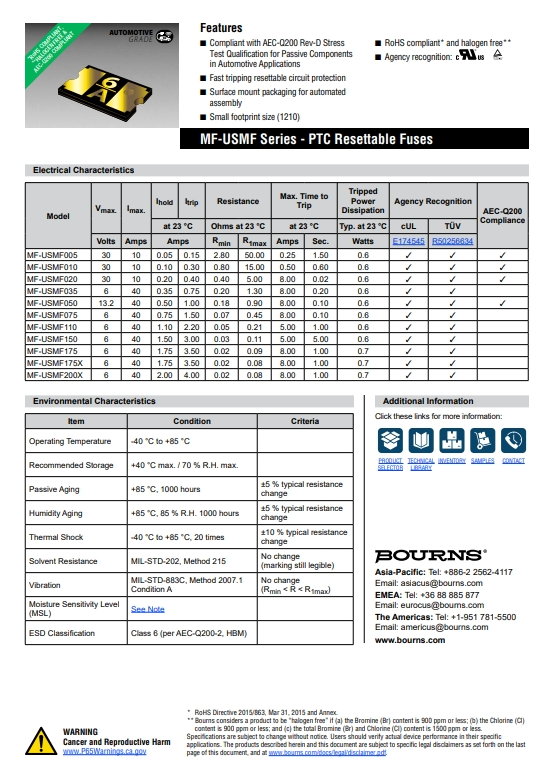

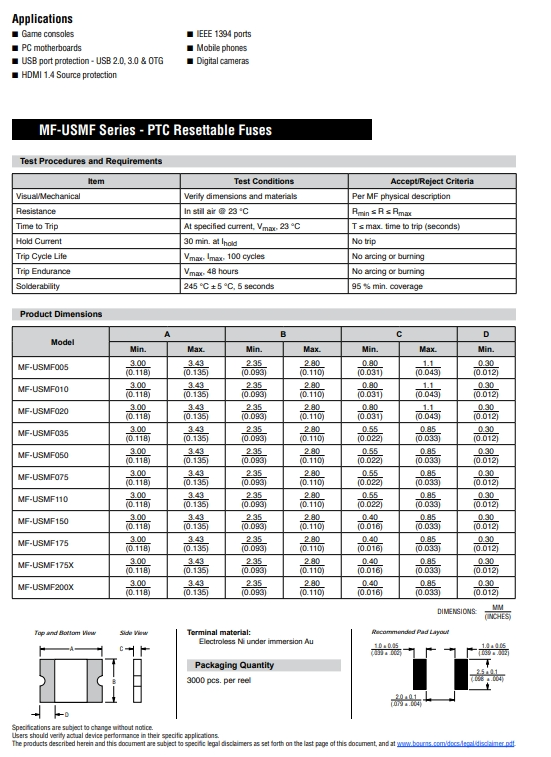

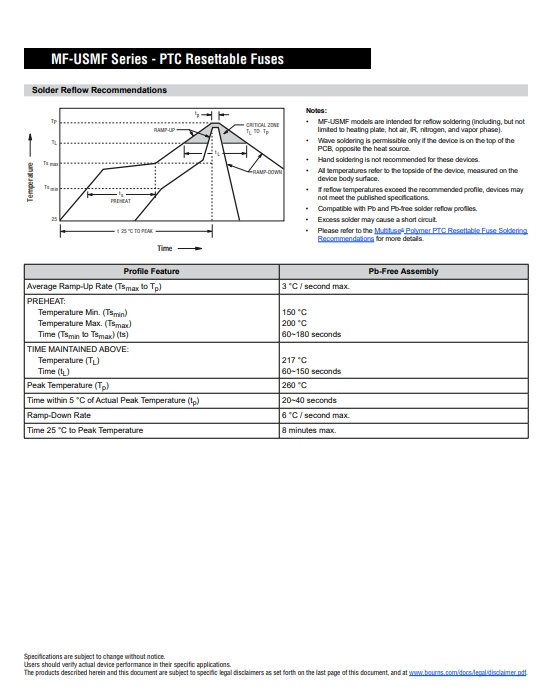

Product datasheet
