Hot sale original MLZ2012M3R3ATD69 Inductors 3.3µH Shielded Multilayer Inductor 500 mA 200mOhm 0805 (2012 Metric)

MLZ2012M3R3ATD69

Model:MLZ2012M3R3ATD69

Manufacturer:TDK

Package:SMD0805

Detail

Product Details



1. Description
The MLZ2012M3R3ATD69 is a high-performance, shielded fixed inductor designed by TDK Corporation. This multilayer inductor is part of the MLZ series, known for its reliability and precision in various electronic applications. With a core material made of ferrite, it offers excellent magnetic properties and stability over a wide operating temperature range.

2. Features
High Current Rating: The inductor can handle a maximum current of 350mA, making it suitable for applications requiring moderate to high current flow.
Low DC Resistance: The DC resistance (DCR) is 200mOhm, which contributes to efficient energy transfer and minimal power loss.
Compact Design: The inductor is packaged in an 0805 (2012 Metric) package, making it ideal for surface mount applications where space is limited.
Shielding: The shielded design helps reduce electromagnetic interference (EMI), ensuring cleaner signal integrity in electronic circuits.
Temperature Stability: Operating between -55°C and 125°C, this inductor maintains its performance under various environmental conditions.
RoHS Compliance: Compliant with ROHS3 standards, ensuring environmental sustainability and regulatory compliance.
AEC-Q200 Ratings: Meets the automotive industry's stringent quality standards for electronic components.
3. Applications
Primary Applications:
Power Supply Filtering: The MLZ2012M3R3ATD69 is well-suited for filtering and smoothing power supplies due to its high inductance value of 3.3μH and low DCR.
Audio Equipment: Its ability to handle moderate currents and maintain signal integrity makes it suitable for audio equipment such as amplifiers and filters.
Automotive Systems: The AEC-Q200 ratings ensure reliability in automotive applications where electronic components must withstand harsh conditions.
Secondary Applications:
Medical Devices: The inductor's stability over a wide temperature range makes it useful in medical devices requiring precise control over electronic components.
Industrial Automation: Its compact size and high performance make it suitable for industrial automation systems where space is limited but reliability is crucial.


Product Description


Type# Description
ANSC PART# ANSC - MLZ2012M3R3ATD69
Category Inductors, Coils, Chokes
Fixed Inductors
Mfr TDK Corporation
Series MLZ
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Type Multilayer
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 350mA
Shielding Shielded
DC Resistance (DCR) 200mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Operating Temperature -55°C ~ 125°C

Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.057" (1.45mm)



Product Photos

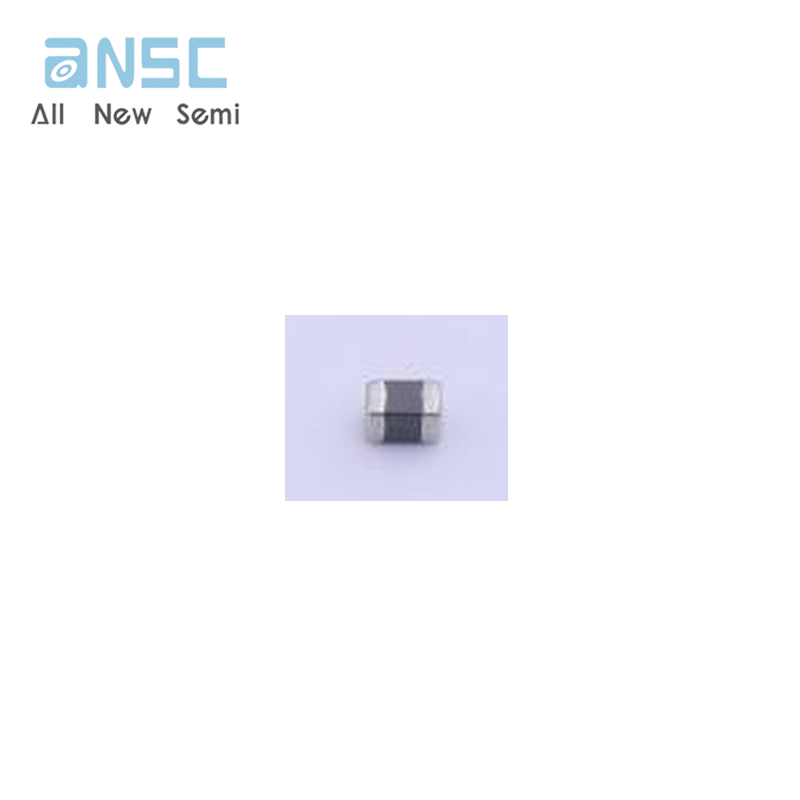

MLZ2012M3R3ATD69
