Hot sale original HCPL-181-000E OPTOISOLTR 3.75KV 1CH TRANS 4-SO Optoisolator Transistor Output 3750Vrms 1 Channel

HCPL-181-000E

Model:HCPL-181-000E

Manufacturer:BROADCOM

Package:SOIC-4

Detail

Product Details



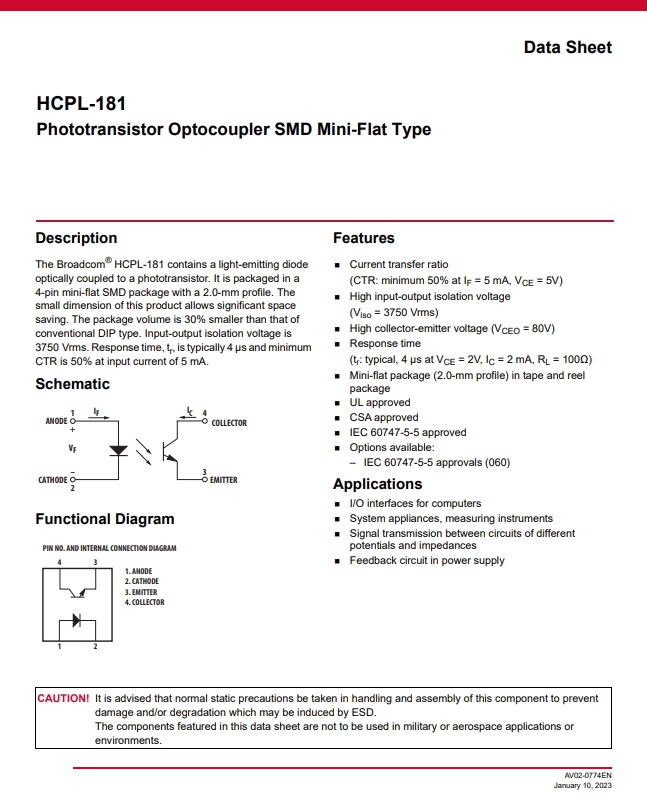

Description
The HCPL-181 contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin mini-flat SMD package with a 2.0 mm profile. The small dimension of this product allows significant space saving. The package volume is 30% smaller than that of conventional DIP type. Input-output isolation voltage is 3750 Vrms. Response time, tr, is typically 4 µs and minimum CTR is
50% at input current of 5 mA.
Features
• Current Transfer Ratio (CTR: min. 50% at IF= 5 mA,VCE= 5 V)
• High input-output isolation voltage (Viso= 3750 Vrms)
• High collector-emitter voltage (VCEO = 80 V)
• Response time (tr: typ., 4 µs at VCE= 2 V, IC= 2 mA, RL= 100 Ω)
• Mini-flat package (2.0 mm profile) in tape and reel package
• UL approved
• CSA approved
• IEC/EN/DIN EN 60747-5-2 approved
• Options available:
– IEC/EN/DIN EN 60747-5-2 approvals (060)
Applications
• I/O interfaces for computers
• System appliances, measuring in struments
• Signal transmission between circuits of different potentials andimpedances
• Feedback circuit in power supply


Product Description


Type# Description
ANSC PART# ANSC - HCPL-181-000E
Category Isolators
Optocouplers, Optoisolators
Transistor, Photovoltaic Output Optoisolators
Manufacturer Broadcom Limited
Series -
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms

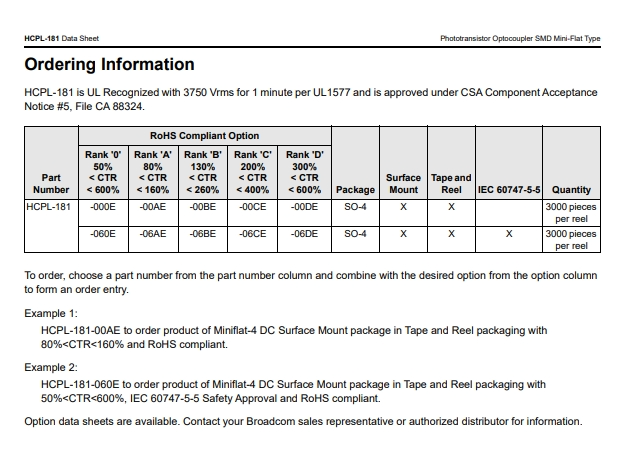

Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Operating Temperature -55°C ~ 100°C

Mounting Type Surface Mount

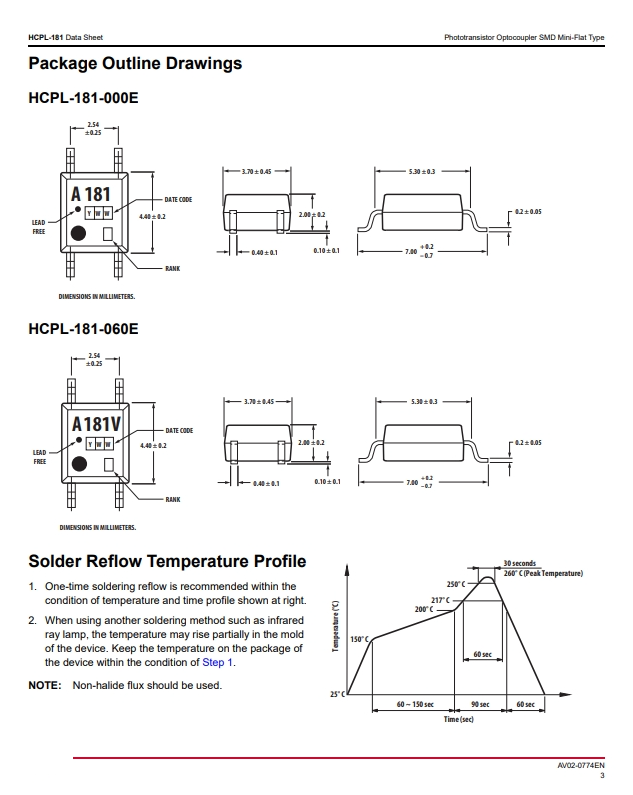

Package / Case 4-SOIC (0.209", 5.30mm Width)
Supplier Device Package 4-SO
Base Product Number HCPL-181


Product Photos

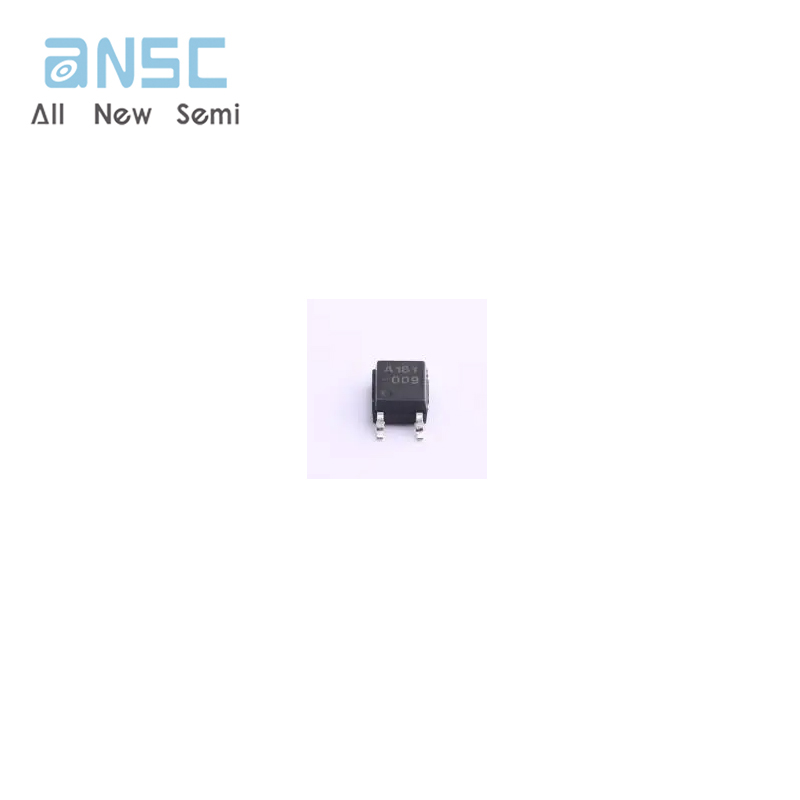

HCPL-181-000E

Product datasheet

For more information, please download
