Product Details
|
FEATURES • Shielded construction • Frequency range up to 1.0 MHz • Lowest DCR/μH, in this package size • Handles high transient current spikes without saturation • Ultra low buzz noise, due to composite construction • Excellent temperature stability for inductance and saturation • IHLP design. PATENT(S): www.vishay.com/patents
• PDA/notebook/desktop/server applications • High current POL converters • Low profile, high current power supplies • Battery powered devices • DC/DC converters in distributed power systems • DC/DC converter for Field Programmable Gate Array (FPGA) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - IHLP4040DZERR24M11 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Vishay Dale |
| Series | IHLP-4040DZ-11 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 33 A |
| Current - Saturation (Isat) | 44A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature |
-55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |

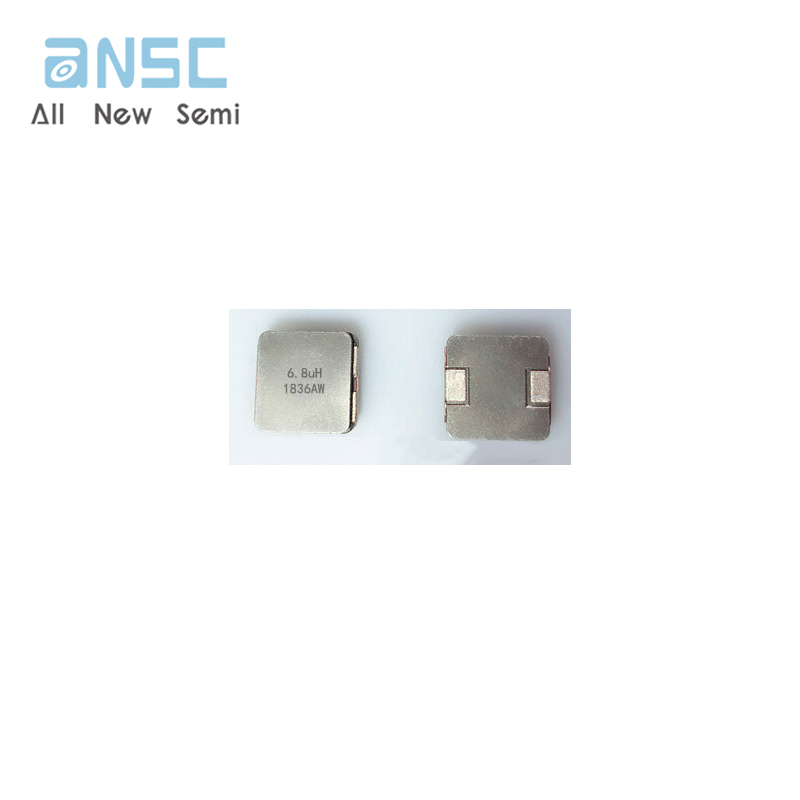

Product Photos

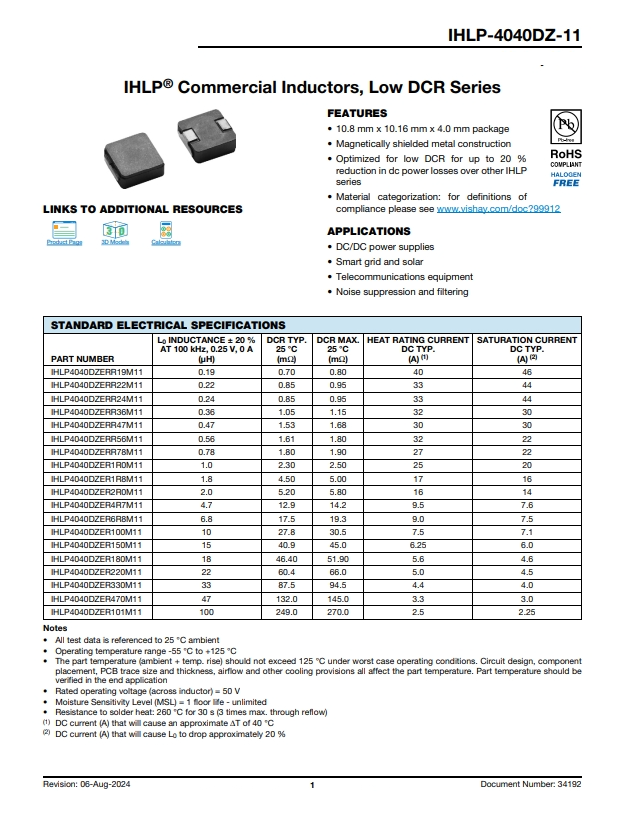

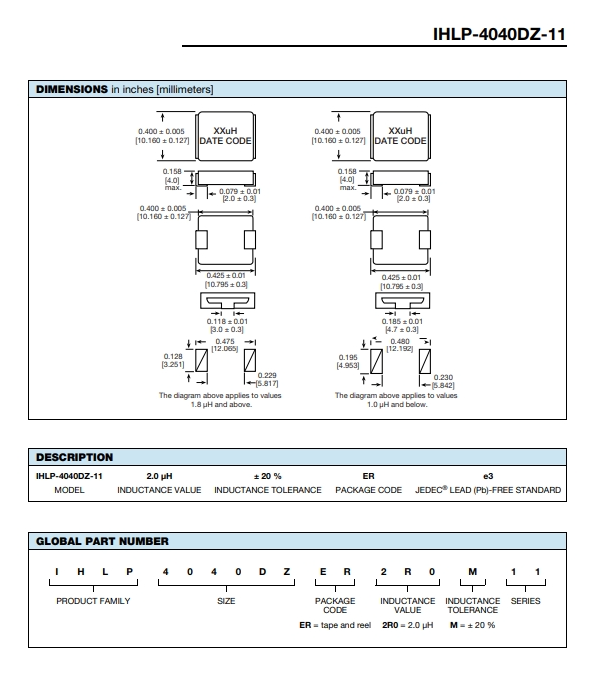

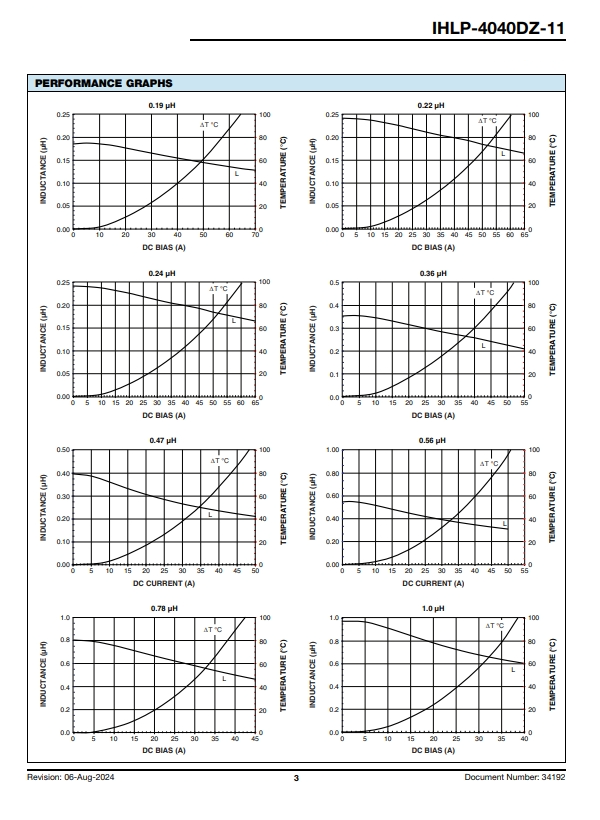

Product datasheet
For more information, please download
