Product Details
|
Description The EA W162-X3LW display module from Display Visions is a compact, high-resolution OLED display designed for various industrial and commercial applications. This module features a 16x2 character display with a 5x8 dot format, making it ideal for displaying text and simple graphics in a clear and readable manner. The display is constructed using OLED technology, ensuring excellent contrast and energy efficiency. Features Display Type: The EA W162-X3LW uses OLED technology, which provides high contrast and energy efficiency. Display Format: The module features a 16x2 character display format. Character Format: The characters are formatted in a 5x8 dot matrix. Character Size: Each character measures 5.55mm in height and 2.95mm in width. Dot Size: The individual dots used to form characters are 0.55mm wide and 0.65mm high. Backlight: This module does not have a backlight, relying on ambient light for visibility. Interface: It supports a parallel interface with an 8-bit data bus. Operating Temperature: The module operates within a temperature range of -40°C to 80°C. Power Supply: It can be powered using a voltage supply between 3.3V and 5V. Text Color: The text displayed on the module is white against a black background. Viewing Area: The active viewing area measures 66.00mm in length and 25.20mm in width.
Primary Applications: Industrial control systems Medical devices Automotive dashboards Retail signage Secondary Applications: Home appliances Security systems Laboratory equipment Alternative Parts If the EA W162-X3LW is not available or suitable for your needs, you may consider the following alternative parts: - EA W162-X3LW (similar model with backlight) - EA W162-X3LW (different size or format) |
Product Description
| Type# | Description |
| PART# | EA W162-X3LW |
| Category | Optoelectronics |
| LCD, OLED Character and Numeric | |
| Manufacturer | Display Visions |
| Series | - |
| Packaging | Bag |
| Part Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | OLED |
| Display Mode | Passive |
| Character Size | 5.55mm H x 2.95mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 4.80mm |
| Viewing Area | 66.00mm L x 25.20mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 3.3V ~ 5V |
| Dot Size | 0.55mm W x 0.65mm H |
| Interface | Parallel, 8-Bit |
| Operating Temperature |
-40°C ~ 80°C |
| Text Color | White |
| Background Color | Black |
| Base Product Number | EAW162 |

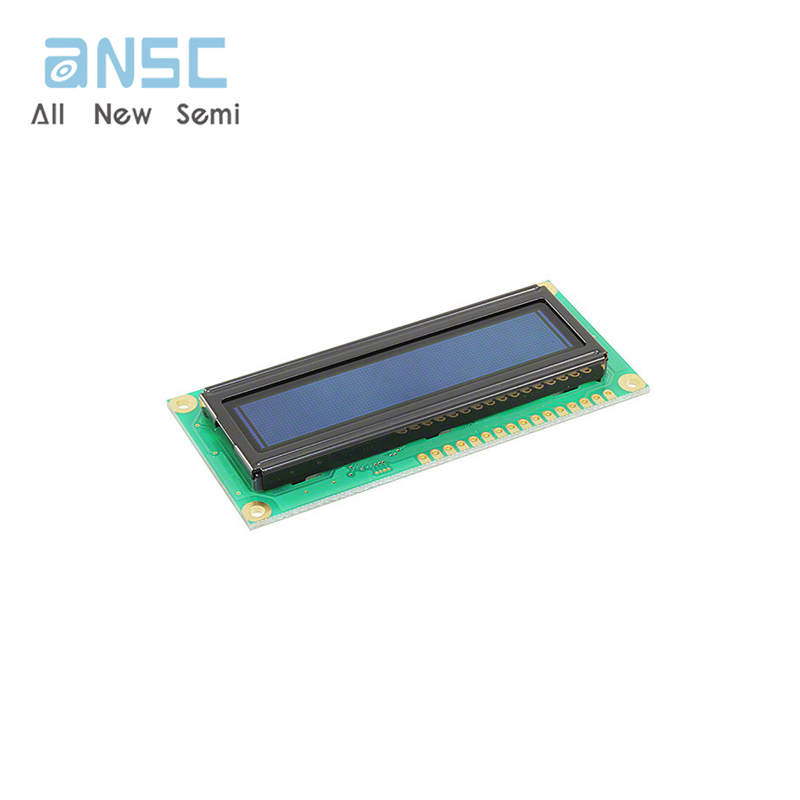

Product Photos
Product datasheet
For more information, please download
