Product Details
|
Product Description: The NR3015T2R2M is a surface-mount, fixed inductor with a chip construction, designed for power inductor applications. This component features a ferrite core and a rectangular package with a size of 3.00mm x 3.00mm. The inductor has a nominal inductance of 2.2μH with a tolerance of ±20%. Features: High current rating of 1.48A Low DC resistance of 72mOhm max Self-resonant frequency of 64MHz Operating temperature range of -25°C to 120°C Lead-free and halogen-free construction RoHS3 compliant Surface-mount technology with dual-ended terminals Shielded for electromagnetic interference (EMI) reduction Applications: Primary applications: Power supply filtering, DC-DC conversion, and audio filtering Secondary applications: Motor control, power conversion, and medical equipment |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - NR3015T2R2M |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Taiyo Yuden |
| Series | NR |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.48A |
| Shielding | Shielded |
| DC Resistance (DCR) | 72mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 64MHz |
| Ratings | - |
| Operating Temperature |
-25°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |

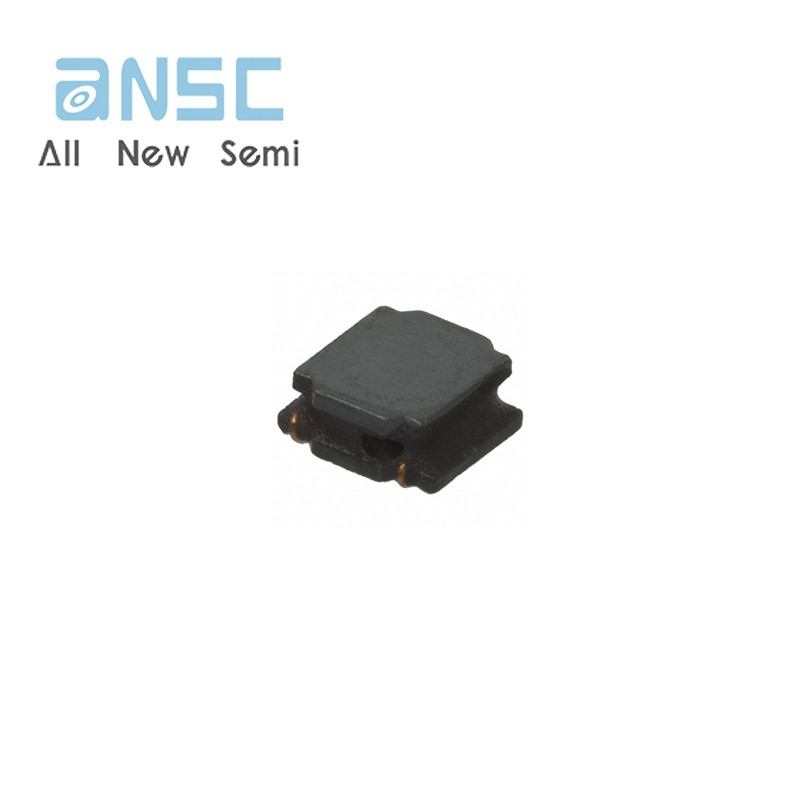

Product Photos

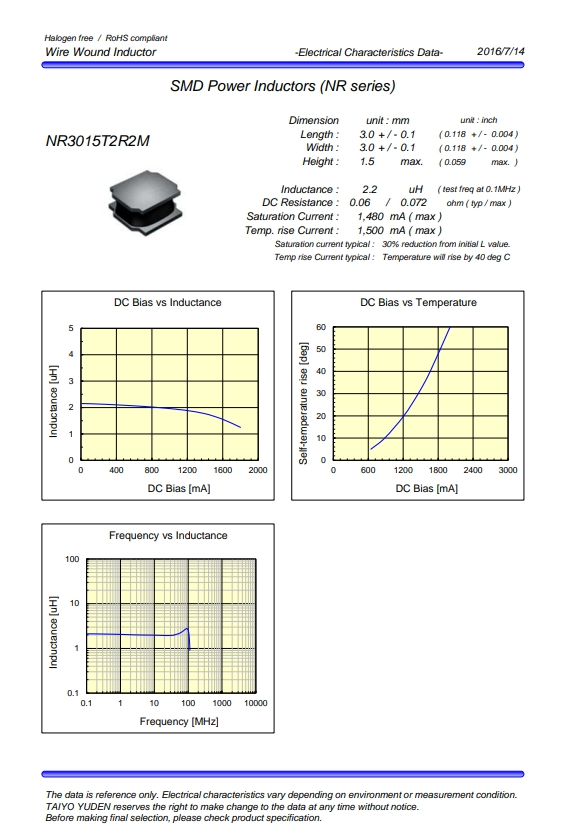

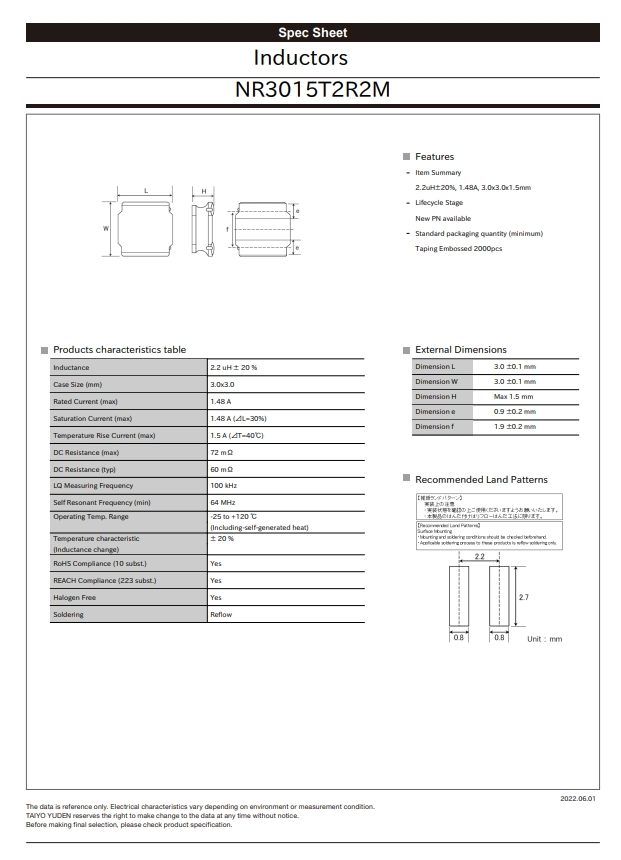

Product datasheet
