Product Details
|
Controllers Power Supplies transistor and hybrid ICs. Collector-Emitter Voltage : 80 V (min) Current Transfer Ratio : 50% (min) Rank GB : 100% (min) Isolation Voltage : 2500 Vrms (min) Guaranteed performance over -55 to 110 ˚C UL approved : UL1577 , File No. E67349 cUL approved : CSA Component Acceptance Service No.5A Option (V4) type VDE approved : EN60747-5-2 Construction mechanical rating Creepage distance : 5.0 mm(min) Clearance : 5.0 mm(min) Insulation thickness : 0.1 mm(min) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - TLP290(SE |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer |
/ |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature |
-55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.179", 4.55mm Width) |
| Supplier Device Package | 4-SO |
| Base Product Number | TLP290 |

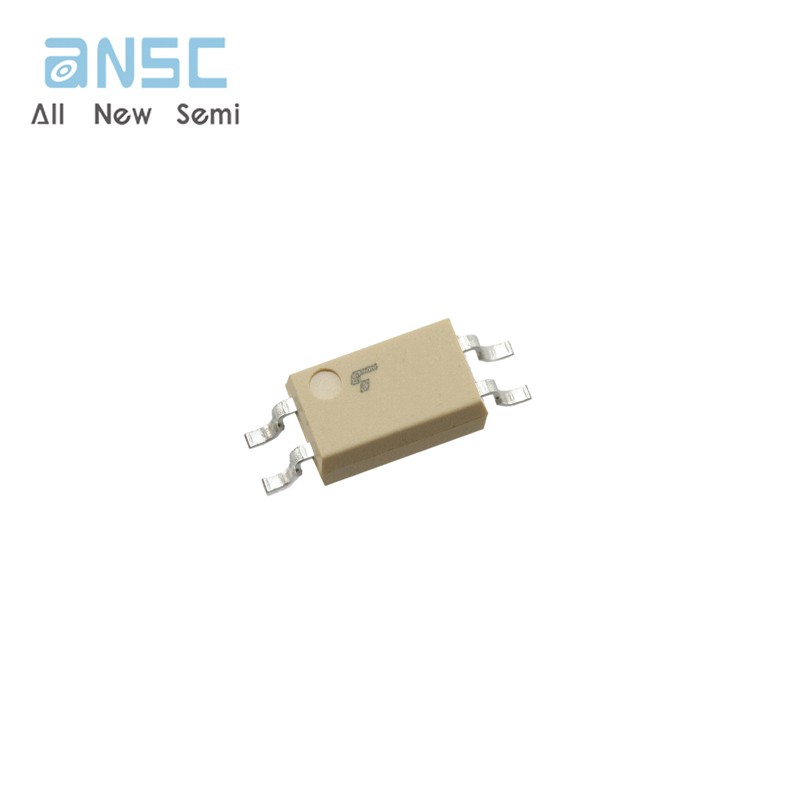

Actual image of the product

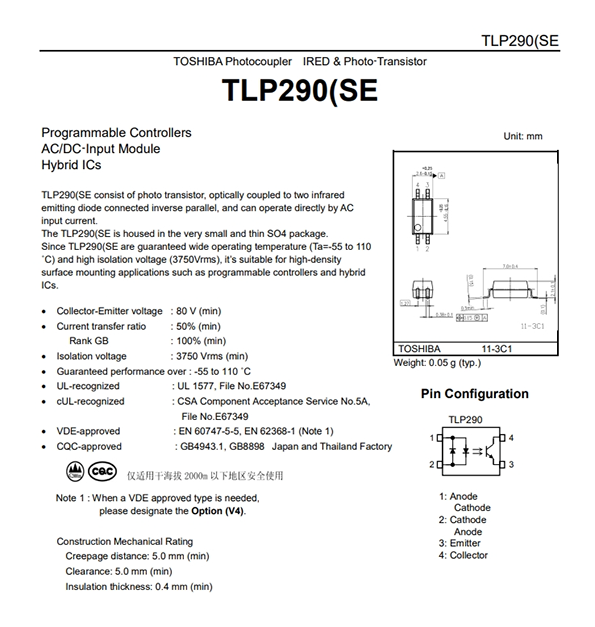

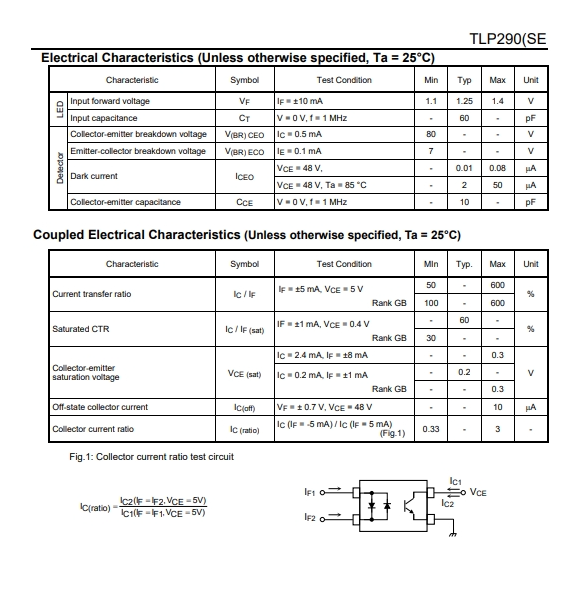

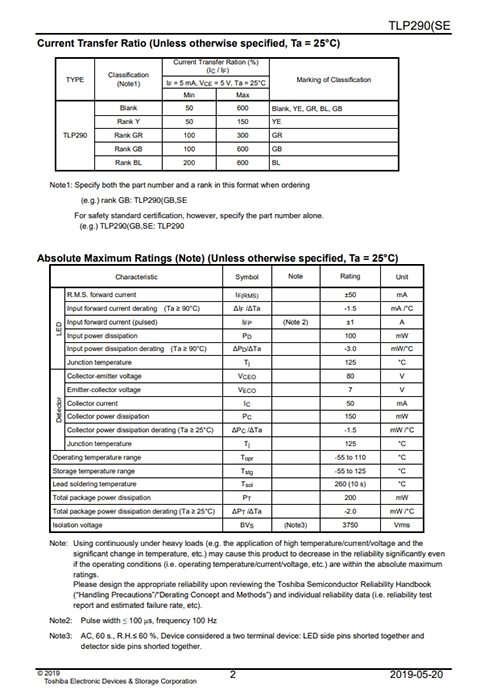

Product datasheet
