Product Details
|
Telephone Use Equipment Programmable Controllers AC / DC−Input Module Telecommunication The TOSHIBA mini flat coupler TLP180 is a small outline coupler, suitable for surface mount assembly. TLP180 consist of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current. • Collector-emitter voltage: 80 V (min) • Current transfer ratio: 50% (min) Rank GB: 100% (min) • Isolation voltage: 3750 Vrms (min) • UL recognized: UL1577, file No. E67349 • BSI approved: BS EN60065:2002, certificate no.8285 BS EN60950-1:2002, certificate no.8286 |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - TLP184(SE |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | Toshiba |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature |
-55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-SOP |
| Base Product Number | TLP184 |

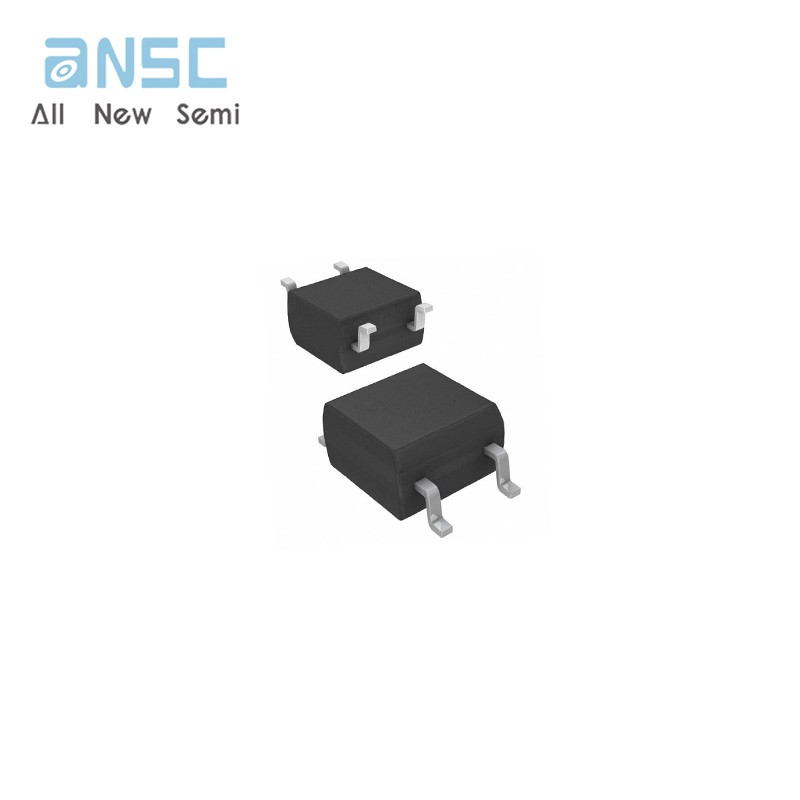

Product Photos

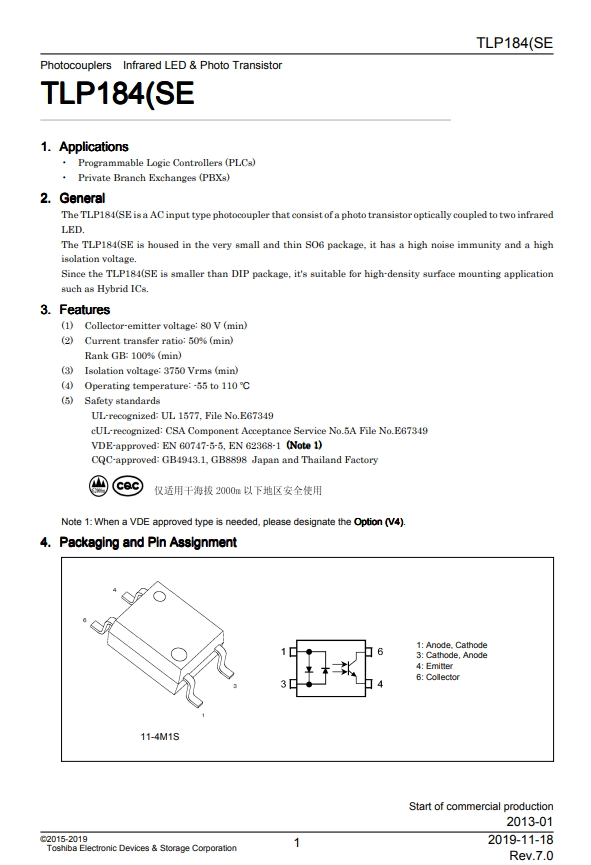

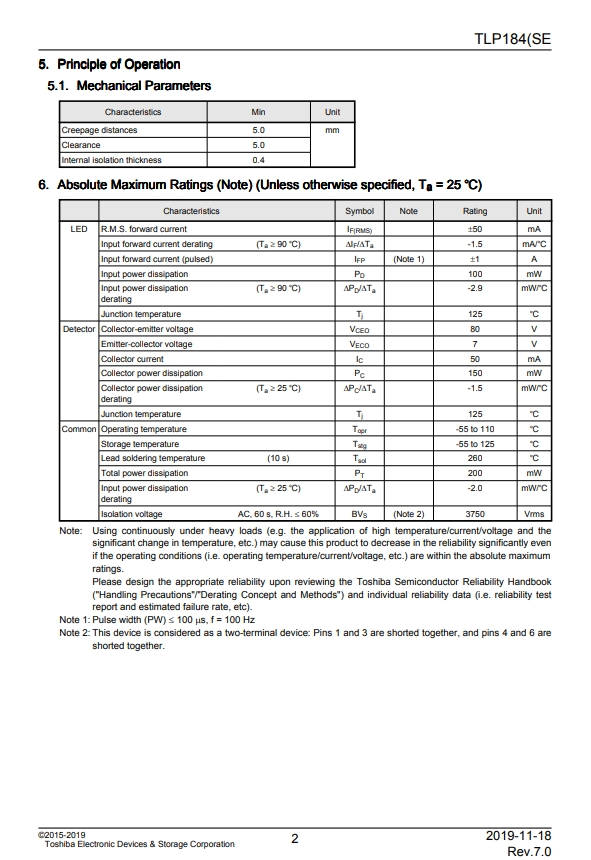

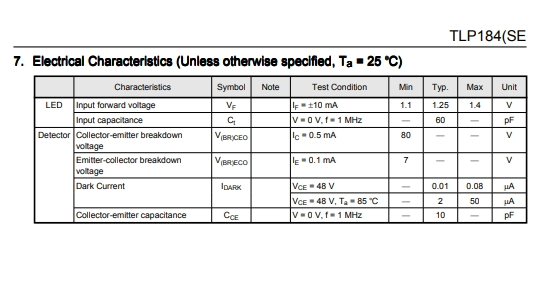

Product datasheet
