Product Details
| Features • Electrical features - VCES = 700 V - IC nom = 400 A / ICRM = 800 A - Increased blocking voltage capability to 705 V - VCE,sat with positive temperature coefficient - Low VCE,sat - Low switching losses - Low inductive design - Tvj,op = 150°C - Short-time extended operation temperature Tvj,op = 175°C • Mechanical features - 2.5 kV AC 1 minute insulation - Al2O3 substrate with low thermal resistance - Integrated NTC temperature sensor - High mechanical robustness - RoHS compliant |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -FS400R07A3E3 |
| Manufacturer | INFINEON TECHNOLOGIES AG |
| Samacsys Manufacturer | Infineon |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 500 A |
| Collector-Emitter Voltage-Max | 705 V |
| Configuration | BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND NTC |
| Gate-Emitter Thr Voltage-Max | 6.5 V |
| Gate-Emitter Voltage-Max | 20 V |
| JESD-30 Code | R-XUFM-X29 |
| Number of Elements | 6 |
| Number of Terminals | 29 |
| Operating Temperature-Max | 150 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 1250 W |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 430 ns |
| Turn-on Time-Nom (ton) | 200 ns |
| VCEsat-Max | 1.7 V |

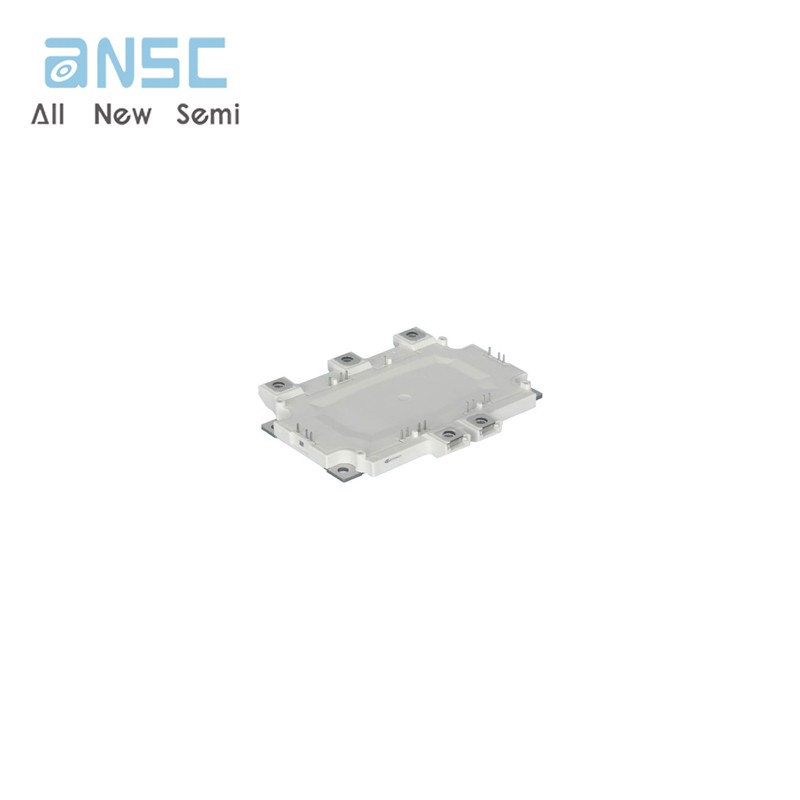

Product Photos

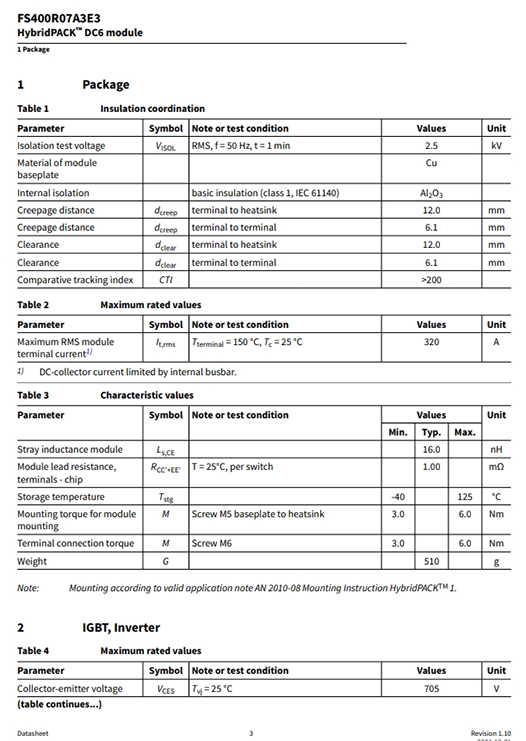

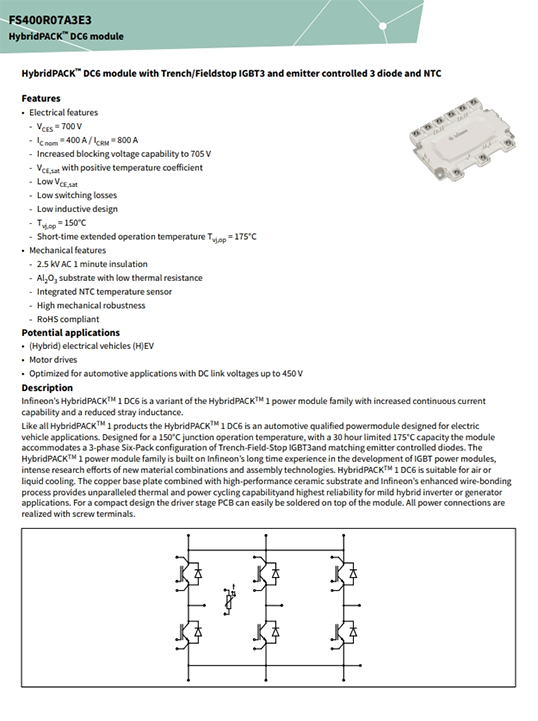

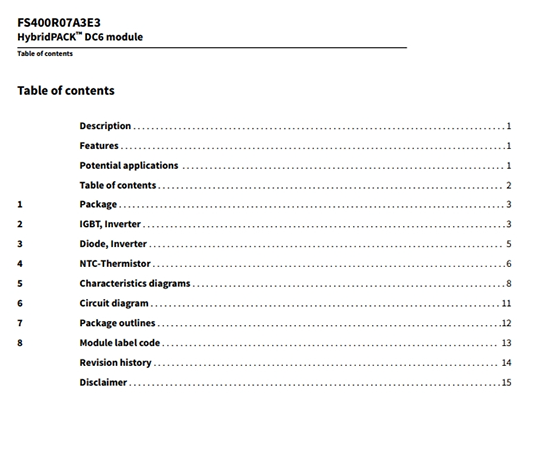

Product datasheet
