Product Details
|
[JST] This, the thinnest, 2.5mm (.098") pitch connector, is 8.1mm (.319") in height after mounting and 3.8mm (.150") in width. It is designed to meet the demand for the high density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost. Features • Compact and slim This connector is designed to be compact and unusually thin. It measures only 8.1mm (.319") high after mounting and is just 3.8mm (.150") wide. • Highly reliable contact The contact has long dimples near the center that ensure continuity of low voltage and low current circuits at all times, even under conditions of vibration and abusive prying. • Polarizing guides The header and housing have guides to prevent improper mating. • Whisker prevention The contact material is treated with a reflow process, and the square post is copper-undercoated and tin/lead-plated for whisker prevention. • Easy and effective crimping Although the contact is compact, it has a long wire strip length, 2.6±0.4mm (.102"±.016"). This long length is very useful for automatic crimping and when crimping shielded wires. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -B8B-XH-A(LF)(SN) |
| Ihs Manufacturer | J S T MFG CO LTD |
| Samacsys Manufacturer | JST (JAPAN SOLDERLESS TERMINALS) |
| Additional Feature | SHROUDED, TOP ENTRY |
| Body Breadth | 0.226 inch |
| Body Depth | 0.276 inch |
| Body Length | 0.882 inch |
| Body/Shell Style | PLUG |
| Connector Type | BOARD CONNECTOR |
| Contact Finish Mating | TIN OVER COPPER |
| Contact Finish Termination | TIN |
| Contact Gender | MALE |
| Contact Material | BRASS |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20 mΩ |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 1000VAC V |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulation Resistance | 1000000000 Ω |
| Insulator Color | WHITE |
| Insulator Material | POLYAMIDE66 |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.098 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 1 |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min |
-25 °C |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 3 A |
| Reference Standard | TUV; UL |
| Terminal Length | 0.134 inch |
| Terminal Pitch | 2.5 mm |
| Termination Type | SOLDER |
| Total Number of Contacts | 8 |
| UL Flammability Code | 94V-0 |

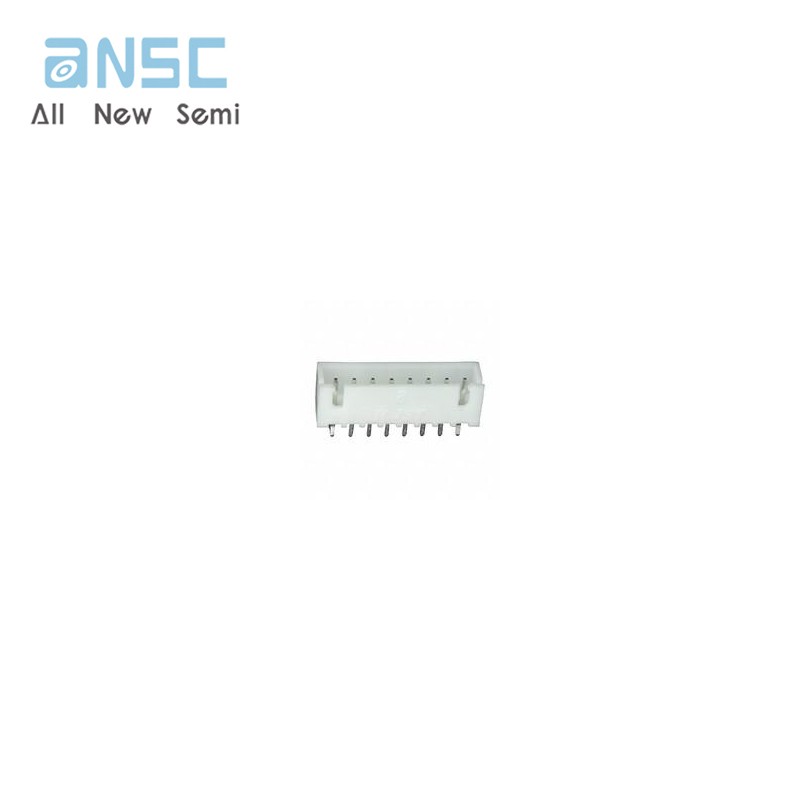

Product Photos

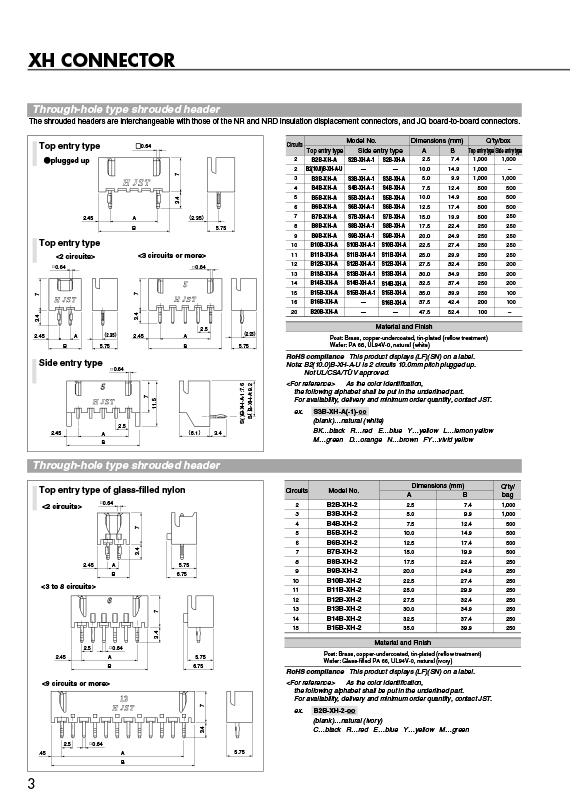

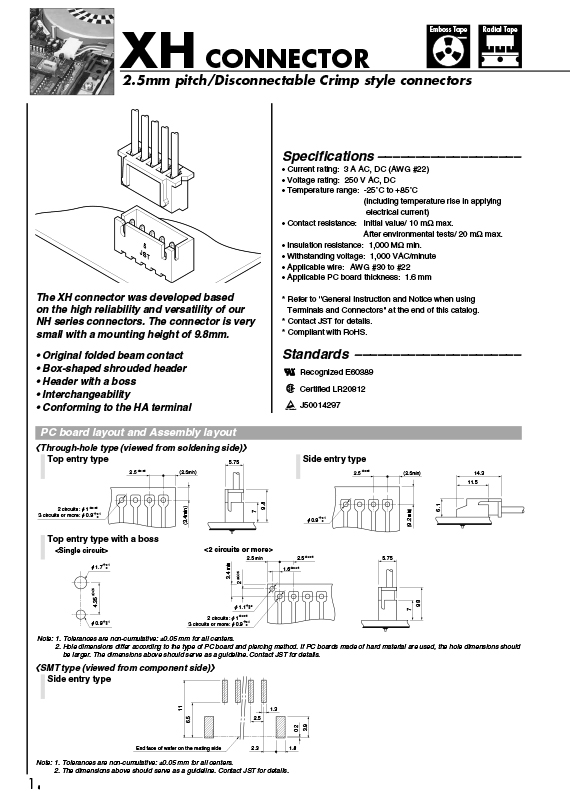

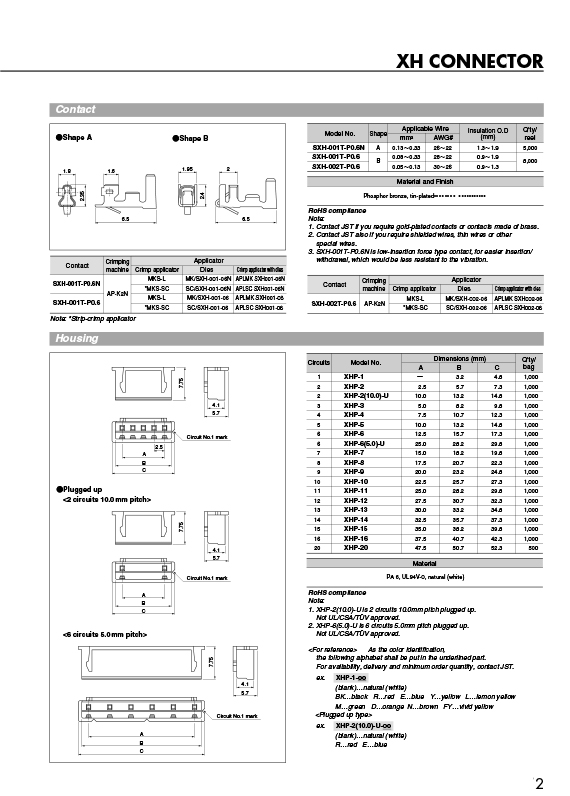

Product datasheet
