Product Details
|
DESCRIPTION The µPC1688G is a silicon monolithic integrated circuit especially designed as a flat gain and wide band amplifier covering HF through UHF band.
• Flat gain: ∆GP = ±1 dBTYP. @ f = 0.1 to 0.7 GHz • Frequency response : 1.1 GHzTYP. @ 3dB band width • Power gain : 21 dBTYP. @ 0.5 GHz • Supply voltage : 5 V ± 0.5 V • 4 pin mini mold package |
Product Description
| Type# | Description |
| PART# | UPC1688G-T1-A |
| Ihs Manufacturer | / |
| Package Description | MINIMOLD, 4 PIN |
| Characteristic Impedance | 50 Ω |
| Construction | COMPONENT |
| Gain | 18 dB |
| Input Power-Max (CW) | 10 dBm |
| Operating Frequency-Max | 1100 MHz |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min |
-40 °C |
| RF/Microwave Device Type | WIDE BAND LOW POWER |
| Terminal Finish | Tin/Bismuth (Sn/Bi) |

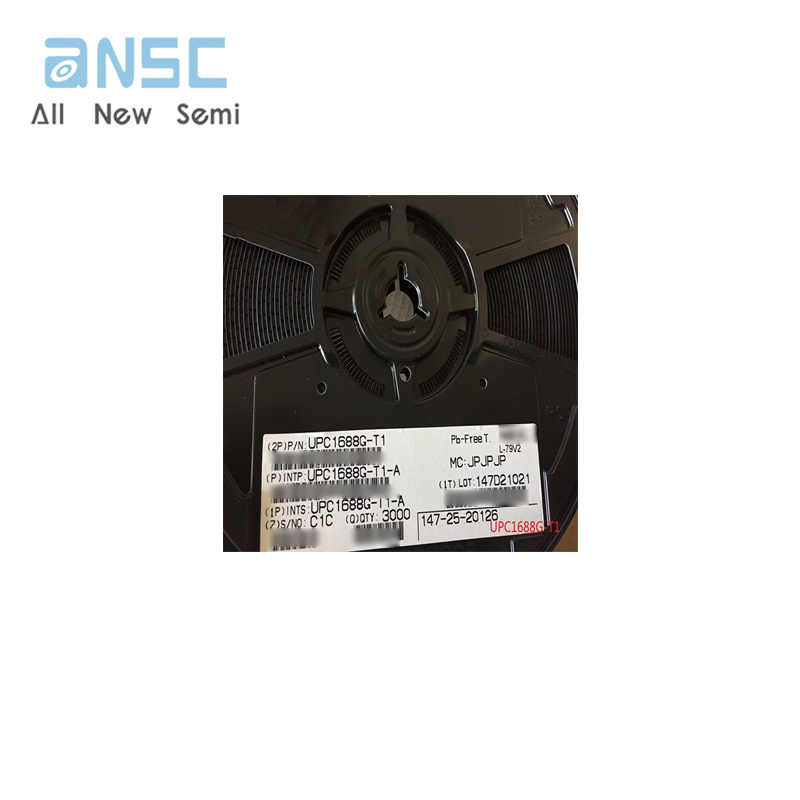

Actual image of the product
