Product Details
| Brief Description: The PSMN4R0-60YS,115 is a N-Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from Nexperia USA Inc. It is a surface-mount device with a maximum continuous drain current of 74A and a maximum drain-to-source voltage of 60V. Features: N-Channel MOSFET with a maximum continuous drain current of 74A Maximum drain-to-source voltage of 60V Maximum operating temperature range of -55°C to 175°C Power dissipation of 130W Low on-resistance of 4mΩ Gate charge of 56nC Input capacitance of 3.501nF RoHS3 compliant Application Grade: The PSMN4R0-60YS,115 is designed for high-power applications, such as power supplies, motor drives, and inverters. Applications: Power supplies Motor drives Inverters Switching power supplies High-power applications requiring high current and low on-resistance Note: The information provided is based on the product parameters and is subject to change. It is recommended to consult the manufacturer''s datasheet for the most up-to-date information. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - PSMN4R0-60YS,115 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 74A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3501 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 130W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 |
| Base Product Number | PSMN4R0 |

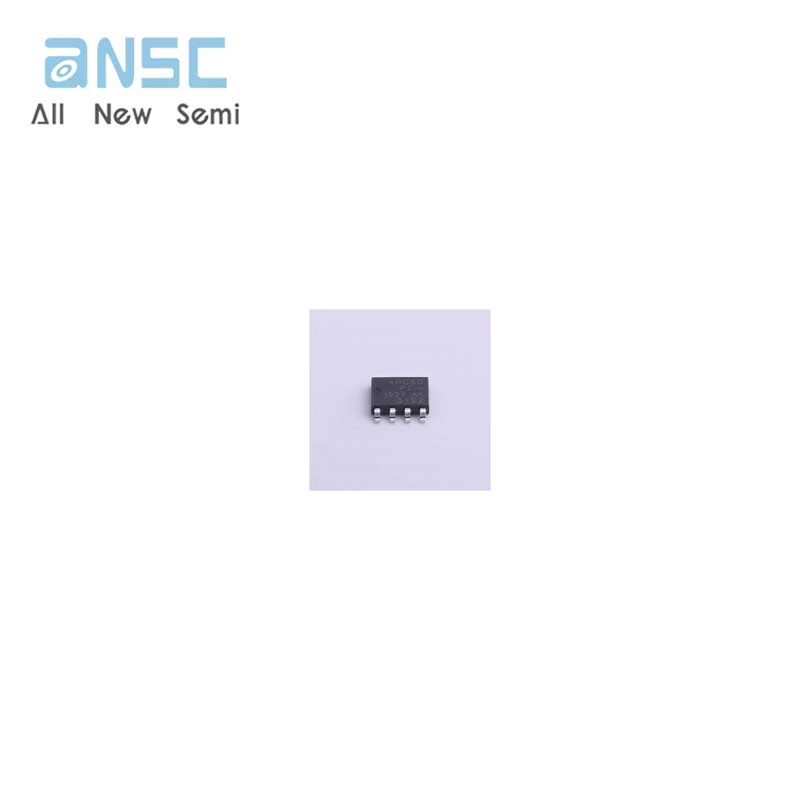

Product Photos

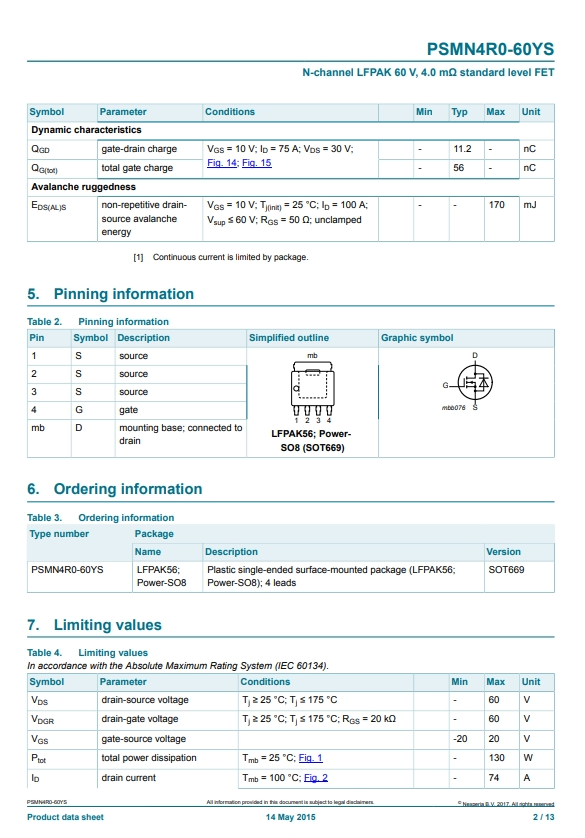

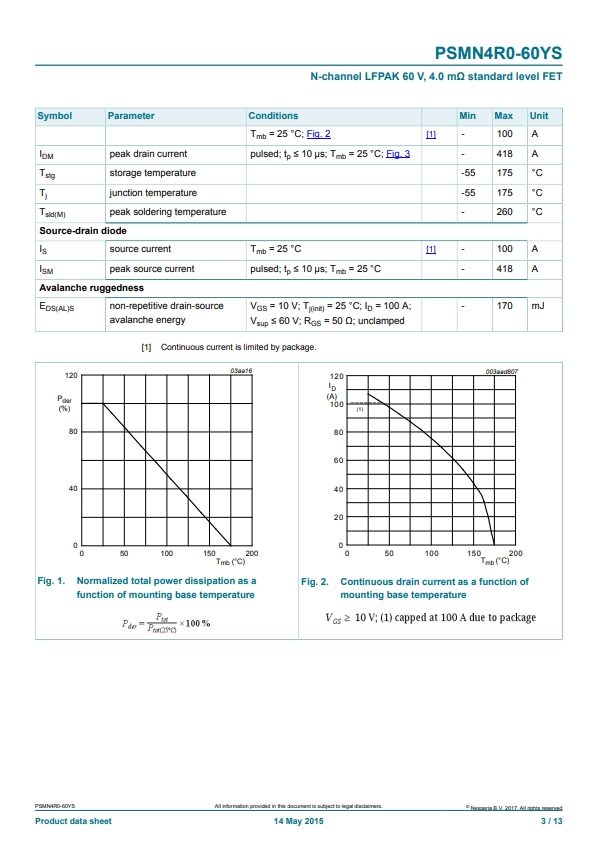

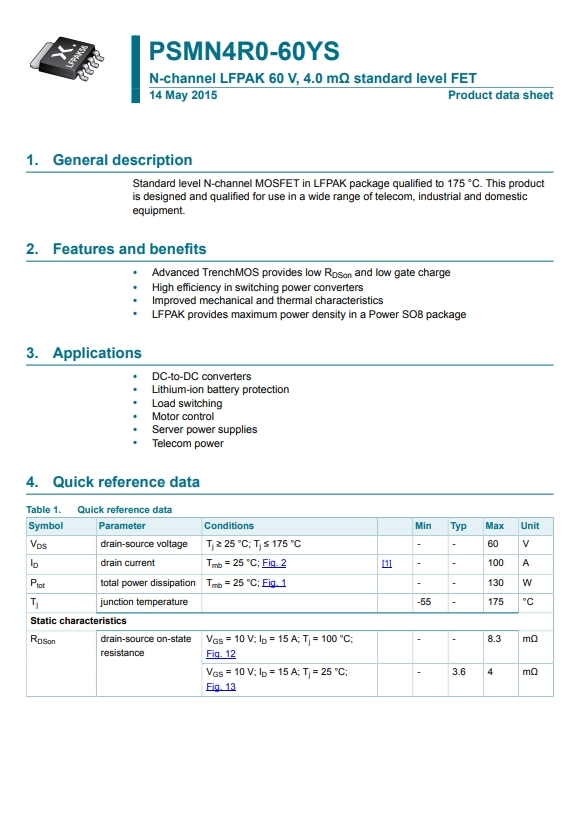

Product datasheet
For more information, please download
