Product Details
|
Brief Description: The BUK9Y153-100E,115 is a high-power N-channel TrenchMOS? FET from Nexperia USA Inc. It is designed for switching applications and features a high power dissipation of 37W and a maximum pulsed drain current of 38A. The device is available in a SC-100, SOT-669 package and is RoHS3 compliant. Features: High power dissipation: 37W High pulsed drain current: 38A Low Rds(on) of 146mΩ at 2A, 10V Avalanche rated for enhanced reliability High avalanche energy rating of 9.5mJ Operating temperature range: -55°C to 175°C Surface mount package: SC-100, SOT-669 RoHS3 compliant AEC-Q101 qualified for automotive applications Application Grade: The BUK9Y153-100E,115 is designed for high-power switching applications, such as: Power supplies Motor control Power conversion Automotive applications Applications: High-power switching Power conversion Motor control Automotive applications, including powertrain and infotainment systems Industrial applications, including power supplies and motor control Overall, the BUK9Y153-100E,115 is a high-performance N-channel TrenchMOS? FET designed for high-power switching applications, offering a combination of high power dissipation, low Rds(on), and enhanced reliability. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - BUK9Y153-100E,115 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Nexperia USA Inc. |
| Series | TrenchMOS™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 9.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 146mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 6.8 nC @ 5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 716 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 37W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 |
| Base Product Number | BUK9Y153 |

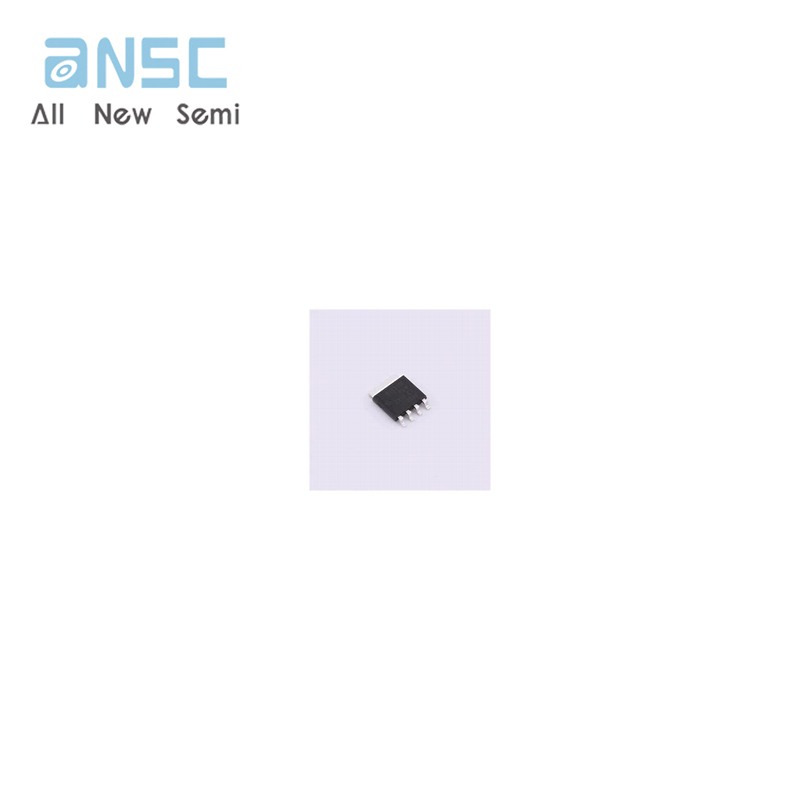

Product Photos

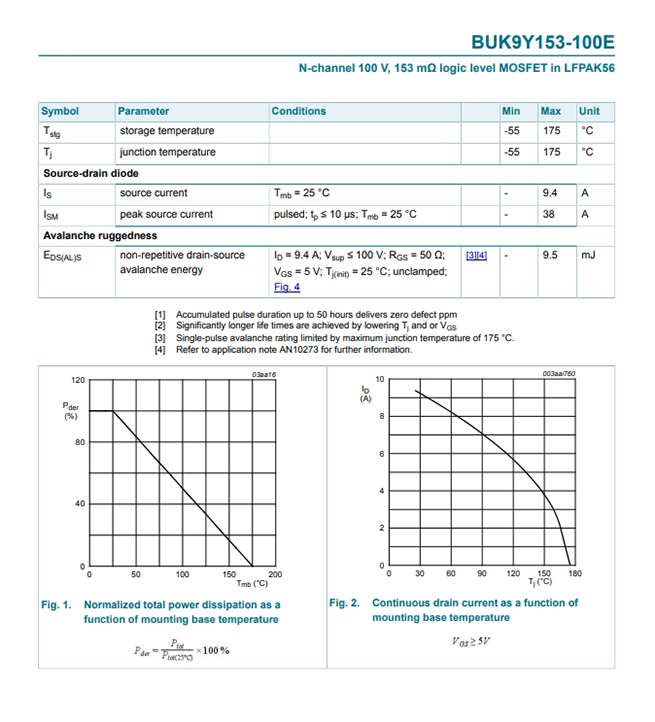

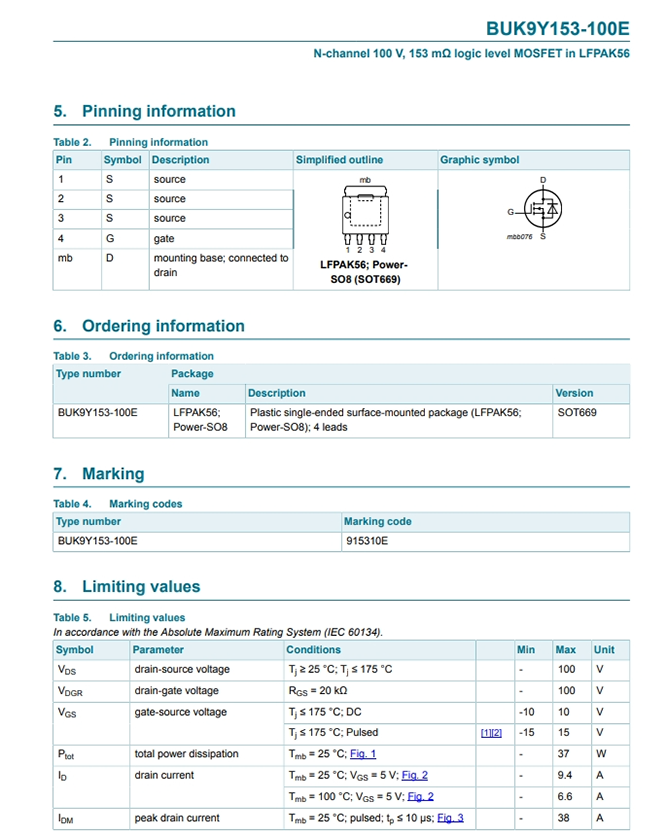

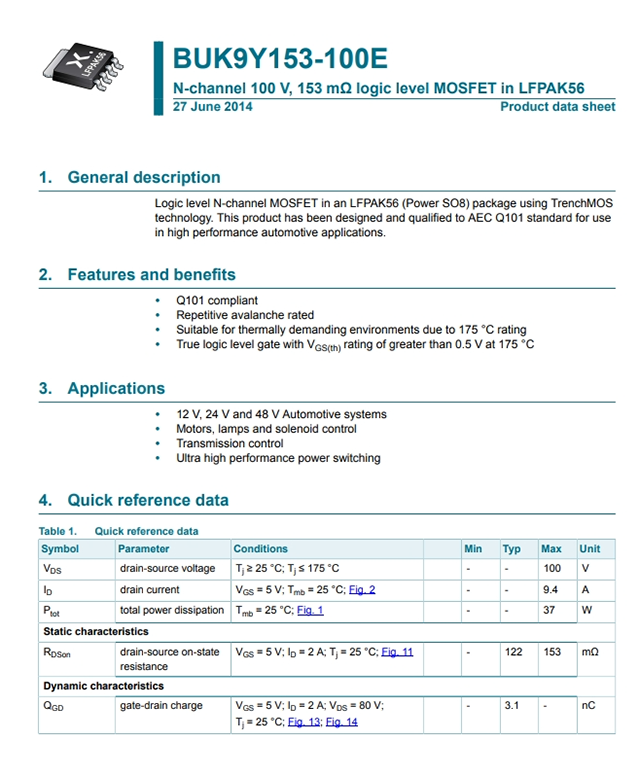

Product datasheet
For more information, please download
