Product Details
|
Brief Description: The MCO75-16IO1 is a high-voltage thyristor module, designed for high-power applications. It is a single SCR (Silicon-Controlled Rectifier) module with a voltage rating of 1600V and a current rating of 121A. Features: High-voltage thyristor module with a voltage rating of 1600V Current rating of 121A (RMS) and 77A (average) Gate trigger voltage of 1.5V Hold current of 200mA Isolated case connection Chassis mountable RoHS3 compliant and lead-free MSL (Moisture Sensitivity Level) of 1 (unlimited) Application Grade: The MCO75-16IO1 is designed for high-power applications, such as: Power supplies Motor control Power conversion High-voltage switching Applications: High-power switching and control applications Power supplies for industrial and commercial equipment Motor control systems for industrial and automotive applications Power conversion systems for renewable energy and energy storage applications High-voltage switching applications in industrial and commercial settings Overall, the MCO75-16IO1 is a high-performance thyristor module designed for high-power applications that require high-voltage and current ratings, as well as reliable and efficient operation. |
Product Description
| Type | Description |
| Category | Discrete Semiconductor Products |
| Thyristors | |
| SCRs - Modules | |
| Manufacturer |
/ |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Structure | Single |
| Number of SCRs, Diodes | 1 SCR |
| Voltage - Off State | 1.6 kV |
| Current - On State (It (AV)) (Max) | 77 A |
| Current - On State (It (RMS)) (Max) | 121 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1070A, 1150A |
| Current - Hold (Ih) (Max) | 200 mA |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | MCO75 |

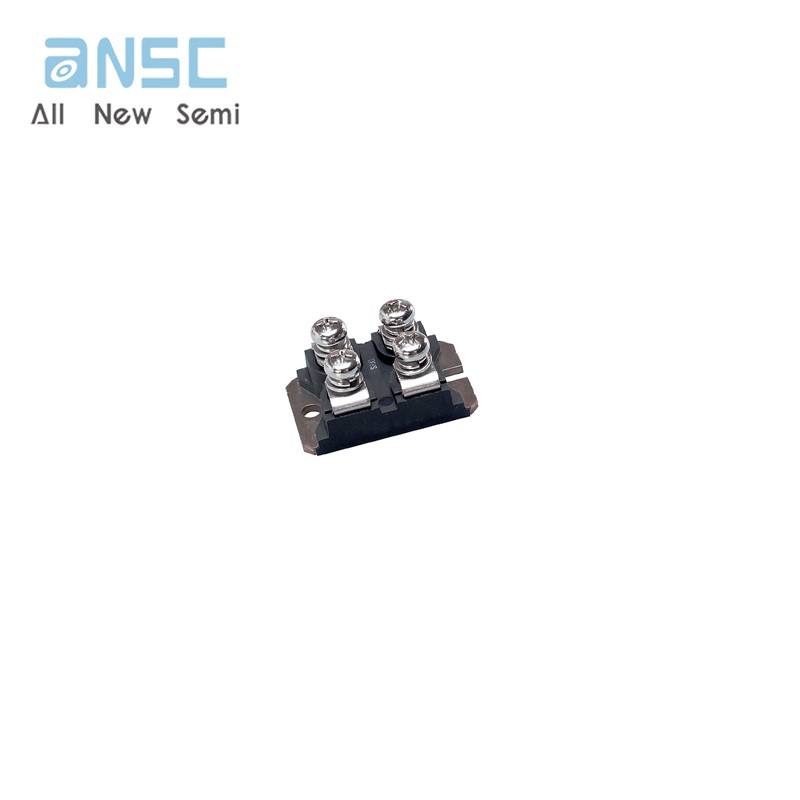

Actual image of the product

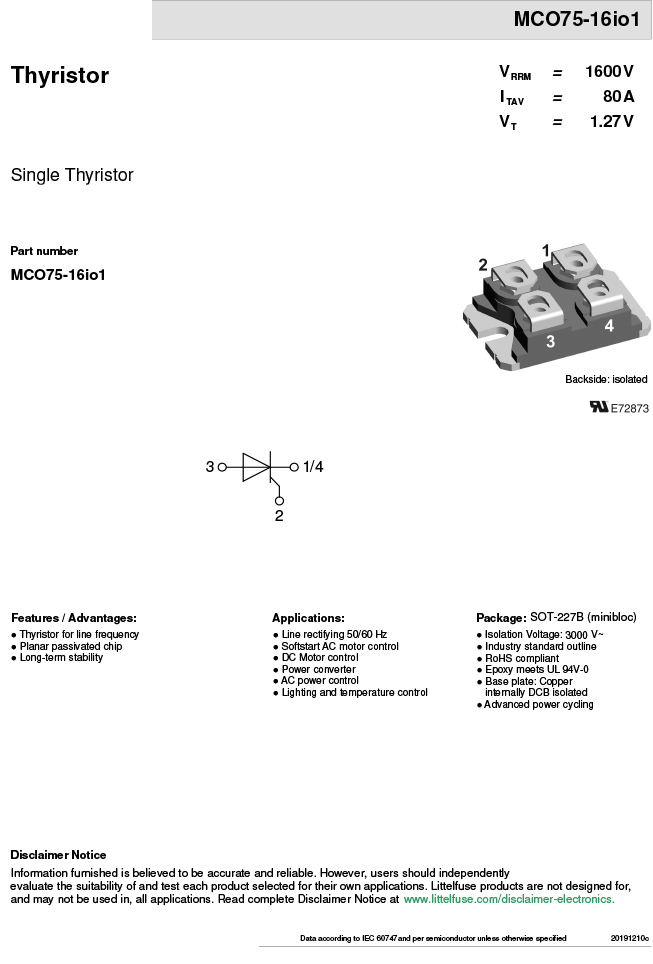

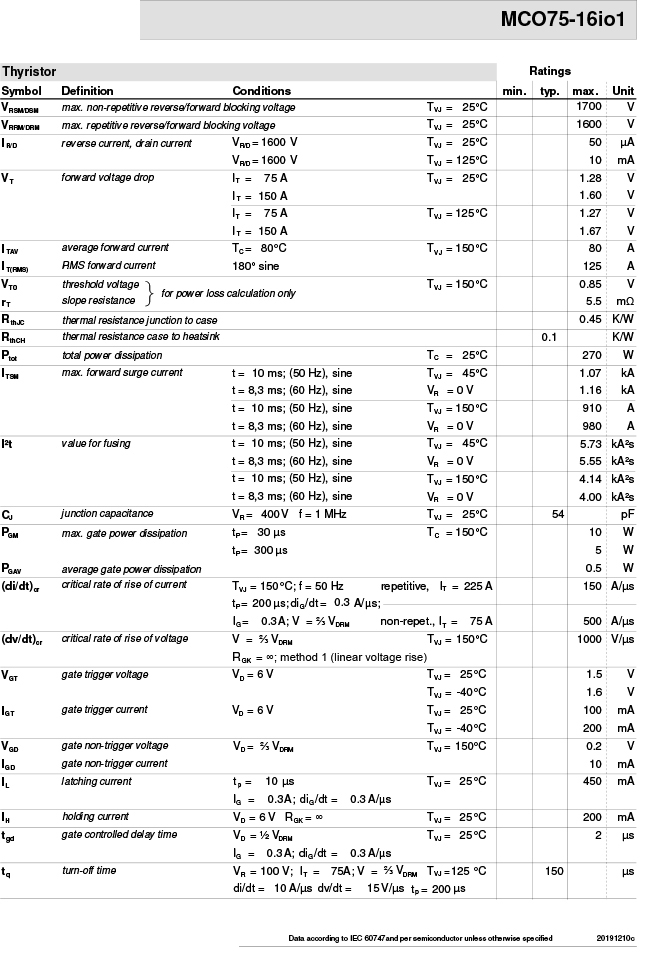

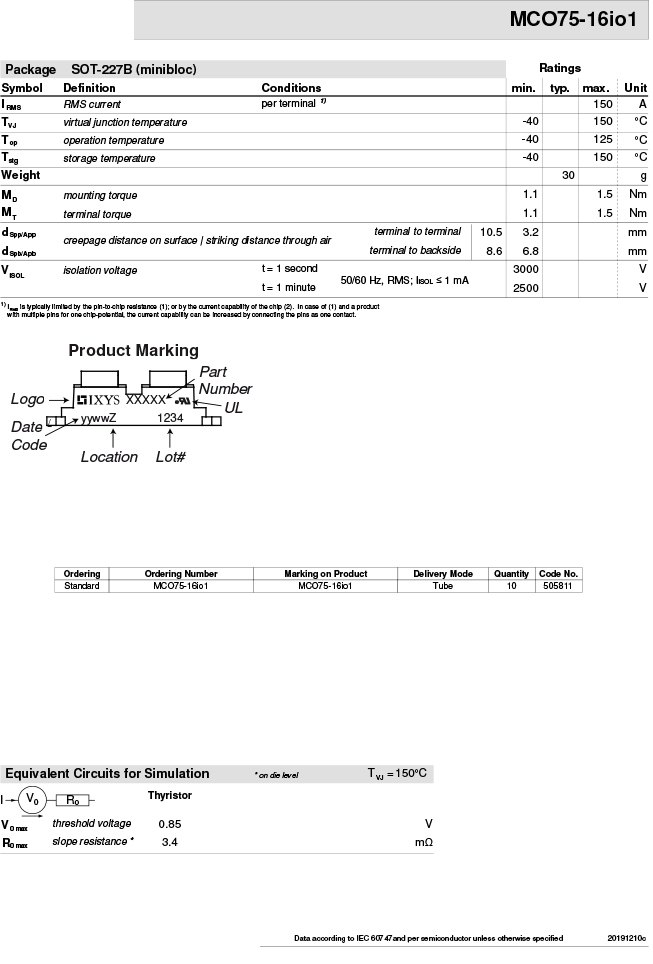

Product datasheet
For more information, please download
