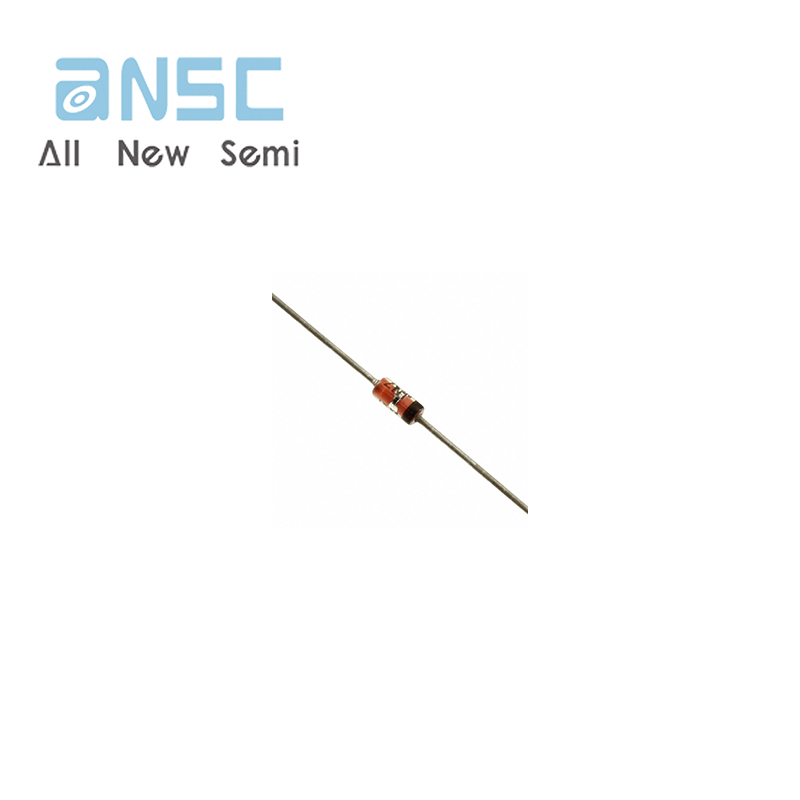

Hot sale Original 1N4938-1 DIODE GEN PURP 175V 100MA DO35 Rectifiers Single Diodes Through Hole DO-204AH (DO-35)

1N4938-1

Model:1N4938-1

Manufacturer:MICROCHIP

Package:DO-35

Detail

Product Details


Product Overview

As a result, this device has a rectified current of 100 mA volts on average.

Phase diode rectifier is permissible for forward current to reach 100 mA.

There is no maximum value for 2 A surge current.

Using the output current as an example, 0.1 A is the maximum value.


Product Features

an average rectified current of 100 mA volts

0.1 A is the maximum value


Product Applications

There are a lot of Microchip

1N4938-1 applications of single-phase diode rectifier.

· DC motor control and drives

· Battery chargers

· Welders

· Power converters

· Reverse Polarity Protection

· Ultra High-Speed Switching

· Freewheeling

· Polarity Protection Diode

· Recirculating Diode

· Switching Diode





Product Description


Type Description
ANSC PART# ANSC-1N4938-1
Category Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Mfr Microchip Technology
Series -
Packaging Bulk
Part Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 175 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 175 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-204AH (DO-35)
Operating Temperature - Junction -65°C ~ 175°C

Base Product Number 1N4938


Product Photos

1N4938-1_1
