Product Description
The IL211AT/212AT/213AT are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL211AT//212AT/213AT comes in a standard SOIC-8 small outline package for surface mounting which makes it ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices.
Product Features
• High Current Transfer Ratio
IL211AT—20% Minimum
IL212AT—50% Minimum
IL213AT—100% Minimum
• Isolation Voltage, 2500 VACRMS
• Electrical Specifications Similar to Standard 6 Pin Coupler
• Industry Standard SOIC-8 Surface Mountable Package
• Standard Lead Spacing, .05"
• Available in Tape and Reel (suffix T)
(Conforms to EIA Standard RS481A)
• Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
• Underwriters Lab File #E52744
(Code Letter P)
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - IL211AT |
Category | Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators |
Manufacturer | Vishay Semiconductor Opto Division |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Number of Channels | 1 |
Voltage - Isolation | 4000Vrms |
Current Transfer Ratio (Min) | 20% @ 10mA |
Current Transfer Ratio (Max) | - |
Turn On / Turn Off Time (Typ) | 3µs, 3µs |
Rise / Fall Time (Typ) | - |
Input Type | DC |
Output Type | Transistor with Base |
Voltage - Output (Max) | 30V |
Current - Output / Channel | - |
Voltage - Forward (Vf) (Typ) | 1.3V |
Current - DC Forward (If) (Max) | 60 mA |
Vce Saturation (Max) | 400mV |
Operating Temperature | -55°C ~ 100°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | IL211 |

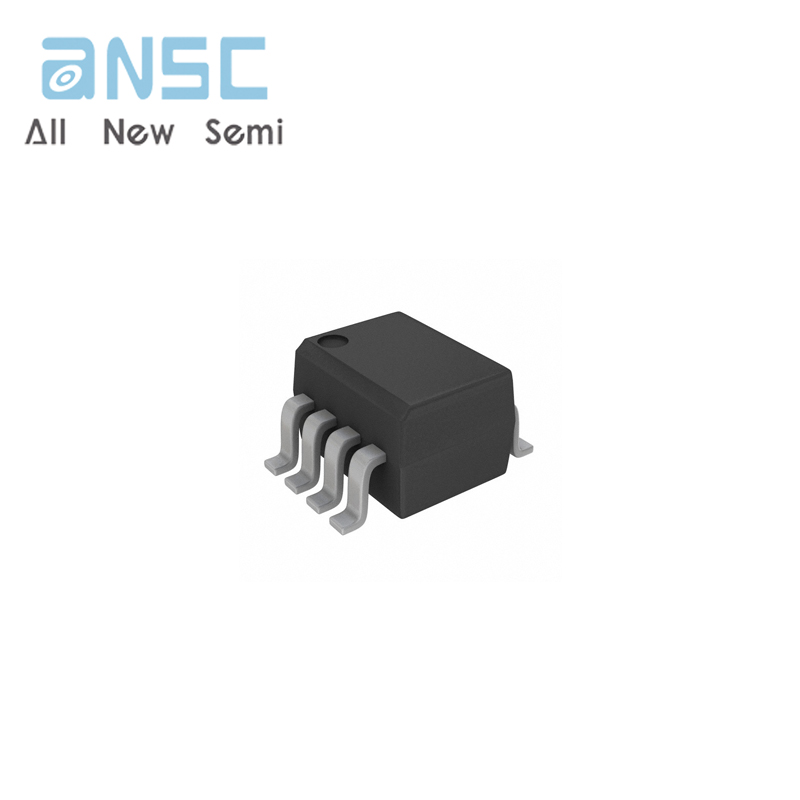

Product Photos

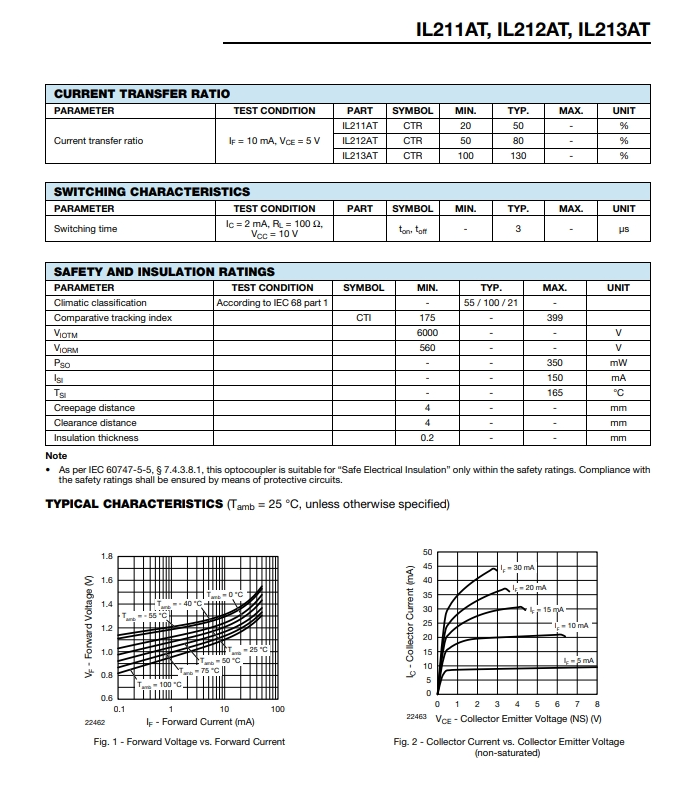

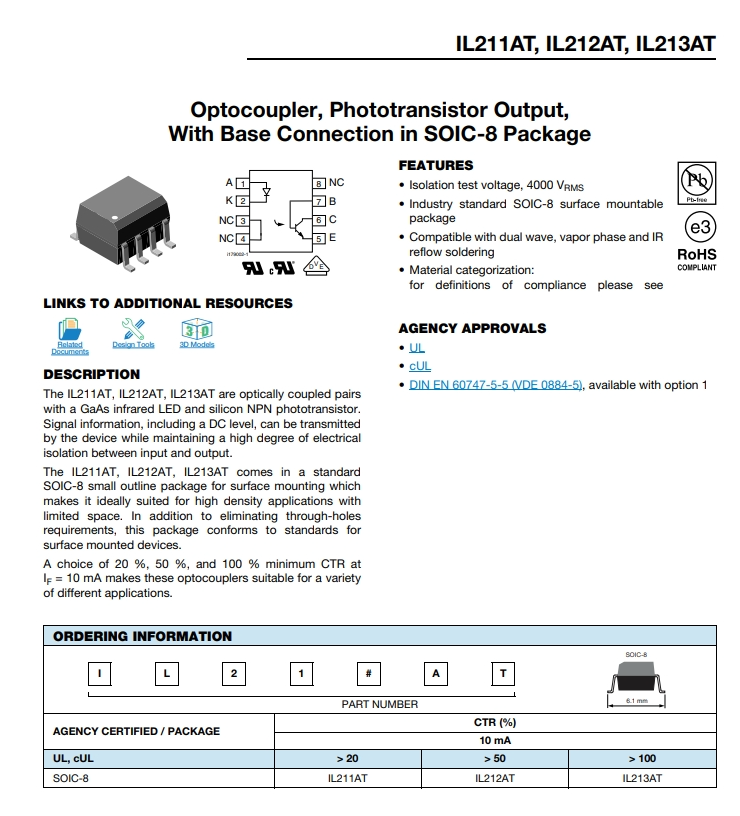

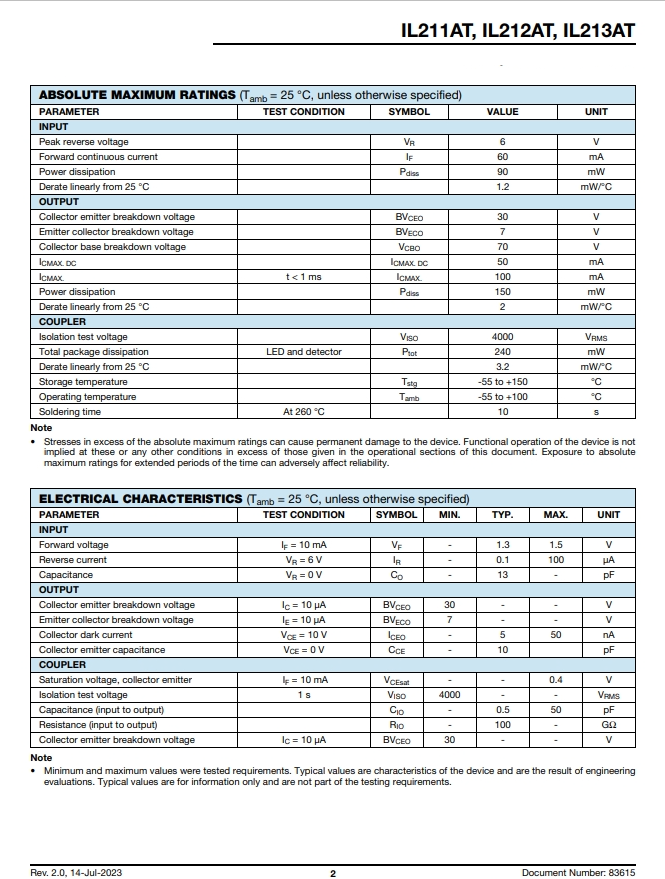

Product datasheet
