Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - 15-91-2085 |
Category | Connectors, Interconnects Rectangular Connectors Headers, Male Pins |
Mfr | Molex |
Series | SL 70634 |
Packaging | Tube |
Part Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch - Mating | 0.100" (2.54mm) |
Number of Positions | 8 |
Number of Rows | 1 |
Row Spacing - Mating | - |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall |
Mounting Type | Surface Mount, Right Angle |
Termination | Solder |
Fastening Type | Latch Holder |
Contact Length - Mating | 0.240" (6.10mm) |
Contact Length - Post | - |
Overall Contact Length | - |
Insulation Height | 0.215" (5.45mm) |
Contact Shape | Square |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin |
Contact Material | Phosphor Bronze |
Insulation Material | Polyester, Glass Filled |
Features | Board Guide |
Operating Temperature | - |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Insulation Color | Black |
Current Rating (Amps) | - |
Voltage Rating | - |
Mated Stacking Heights | - |
Contact Finish Thickness - Post | 74.8µin (1.90µm) |
Applications | Automotive, General Purpose, Industrial, Medical |
Base Product Number | 001591 |

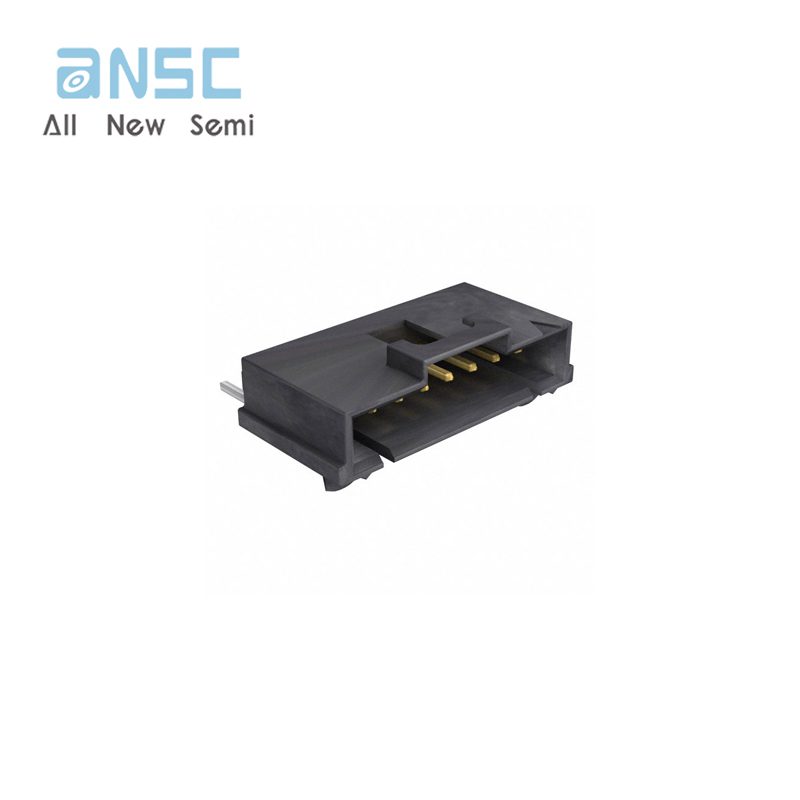

Product Photos
