DESCRIPTION
The SMFxxC series are subminiature TVS suppressor arrays designed for the protection of sensitive IC components from the damaging effects of Electrostatic Discharge (ESD) and Electrial Fast Transients (EFT). This series is ideally suited for use in portable electronics such as SMART phones, laptops, as well as cellular phone base stations.
The SMFxxC series provides protection in accordance with IEC 61000-4-2 and IEC 61000-4-4 requirements. This series is available in a SC70-6L package configuration and is rated at 100 Watts peak pulse power (8/20µs) per line.
FEATURES
• Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
• 100 Watts Peak Pulse Power per Line(tp = 8/20µs)
• Monolithic Design
• Protects 4 Bidirectional Lines or 5 Unidirectional Lines
• ESD Protection > 25 kilovolts
• Available in Multiple Voltages
• Low Clamping Voltage
• RoHS Compliant
APPLICATIoNS
• Notebook Computers
• Cellular Phone Base Stations
• SMART Phones
• Digital Cameras
Product Description
| Attribute | Value |
| ANSC PART# | ANSC - SMF05C |
| Category | Circuit Protection/ESD and Surge Protection (TVS/ESD) |
| Reverse Leakage Current (Ir) | 100nA |
| Peak Pulse Current (Ipp) | 10A |
| Maximum Clamping Voltage | 12V |
| Peak Pulse Power Dissipation (Ppp) | 200W |
| Number of Lines | Three Channels |
| Breakdown Voltage | 6V |
| polarity | Unidirectional |
| Reverse Stand-Off Voltage (Vrwm) | 5V |
| Type | ESD |
| Operating Temperature | -55℃~+125℃ |

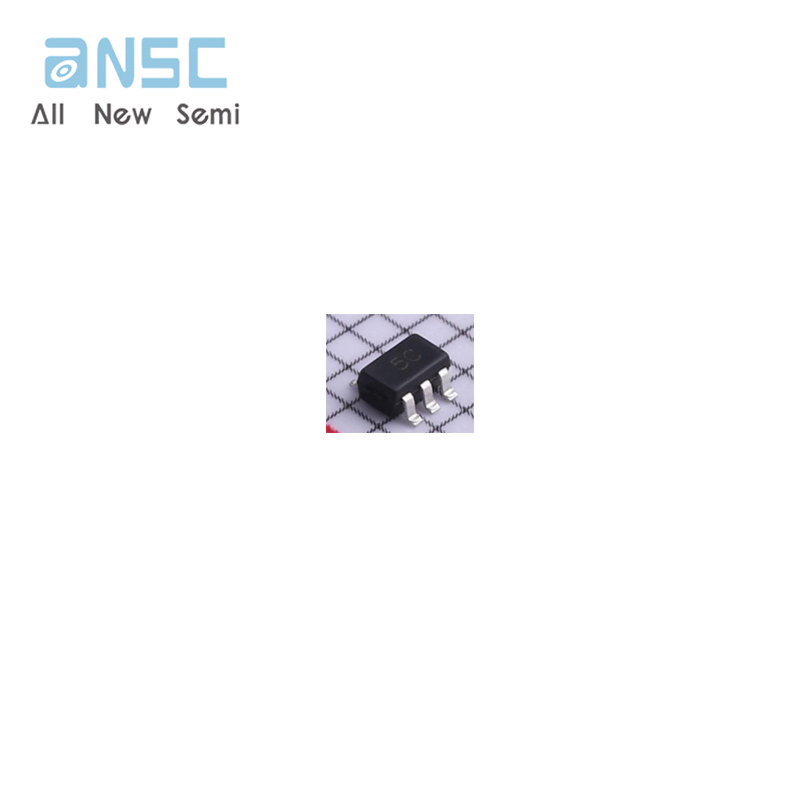

Actual image of the product
