Product Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Tiger Eye™ TFM belongs to the Tiger Eye™ TFM Series.Further, there are features such as ROHS COMPLIANT, to name only a few.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
Product Features
Tiger Eye™ TFM series
Product Applications
There are a lot of Samtec Inc.
TFM-125-31-L-D Rectangular Connectors applications.
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
Product Description
| Type | Description |
| ANSC PART# | ANSC - TFM-125-31-L-D |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Samtec Inc. |
| Series | Tiger Eye™ TFM |
| Packaging | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.139" (3.53mm) |
| Contact Length - Post | 0.080" (2.03mm) |
| Overall Contact Length | - |
| Insulation Height | 0.435" (11.05mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.9A per Contact |
| Voltage Rating | 275VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | TFM-125 |

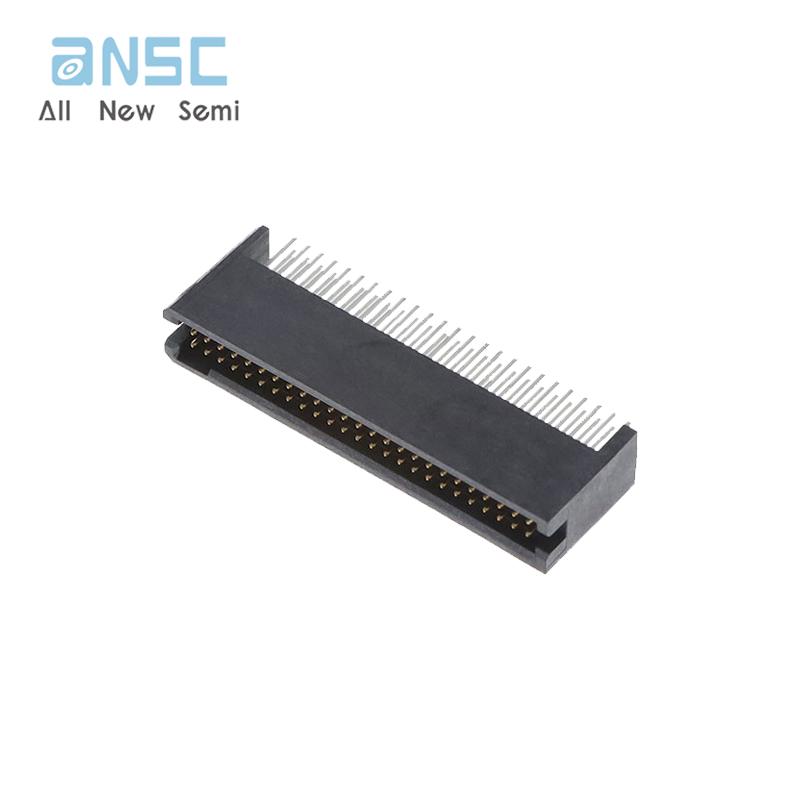

Product Photos
