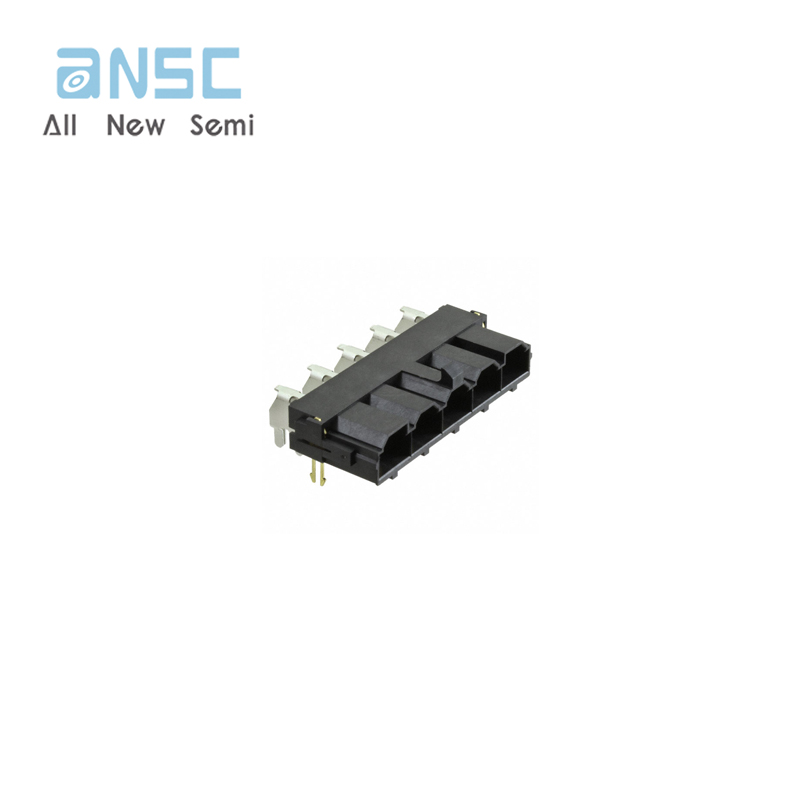

Product Description
| Type | Description |
| ANSC PART# | ANSC -42820-5213 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | / |
| Series | Mini-Fit Sr 42820 |
| Packaging | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.394" (10.00mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.421" (10.70mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Zirconium Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | Board Lock |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Base Product Number | 42820 |
