Product Details
|
Product Overview It is necessary to supply this electrical device with a reverse leakage current of 2.5μA @ 1.5V.A voltage of 5% indicates the maximum voltage (Tol) that can be supplied.Reverse leakage current reaches a maximum of 2.5μA.The design flexibility of this device is extremely high since its zener current is 319mA.This device can only be operated when the working test voltage is set to 79.8mA.For the device to operate, the maximum forward voltage (Vf) 1.5V @ 200mA must be supplied. Product Features reverse leakage current of 2.5μA @ 1.5V 2.5μA @ 1.5V is the maximum voltage (Tol) Reverse leakage current reaches 2.5μA the zener current of 319mA the working test voltage to 79.8mA minimal dynamic impedance is 79.8mA |
Product Description
| Type | Description |
| ANSC PART# | ANSC -1SMA5917BT3 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Original |
| Series | 1SMA59xxBT3G |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Voltage - Zener (Nom) (Vz) | 4.7 V |
| Tolerance | ±5% |
| Power - Max | 1.5 W |
| Impedance (Max) (Zzt) | 5 Ohms |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 1.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Operating Temperature |
-65°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | 1SMA5917 |

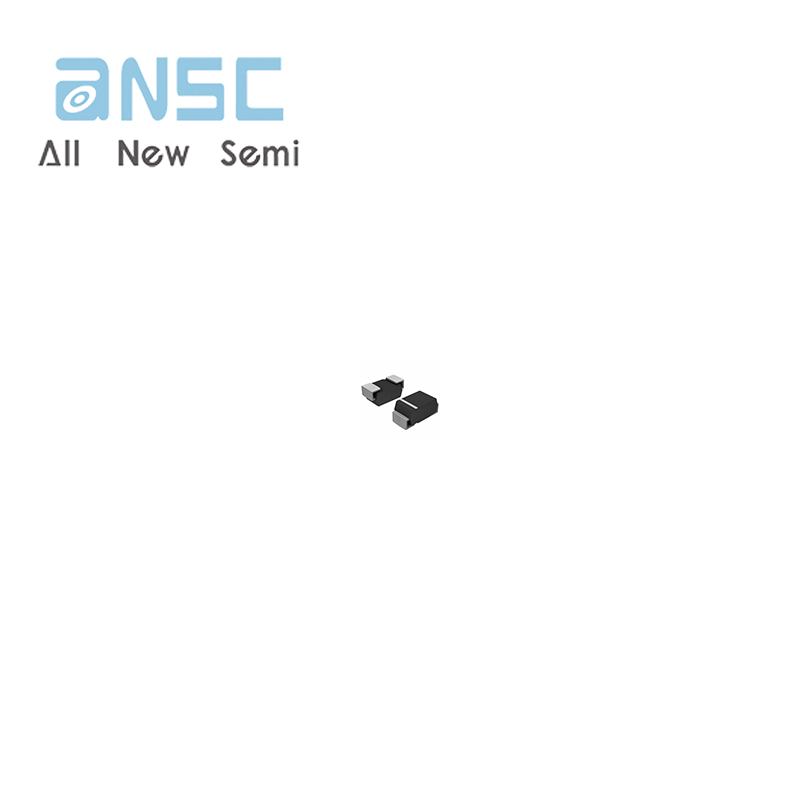

Product Photos

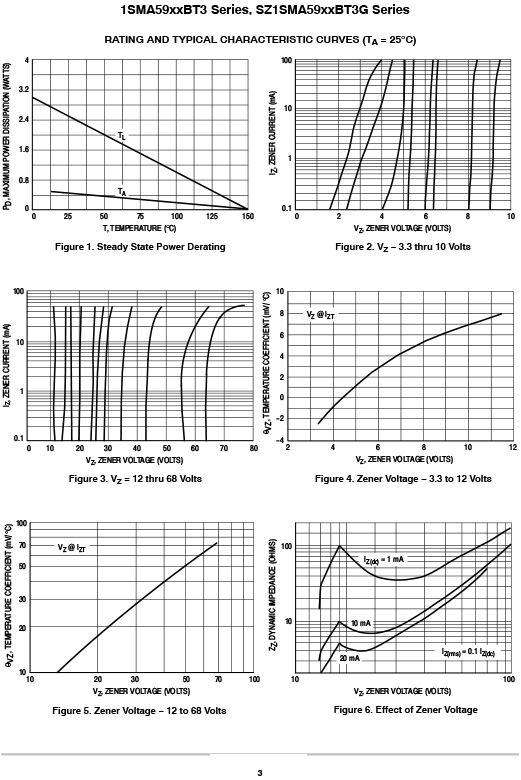

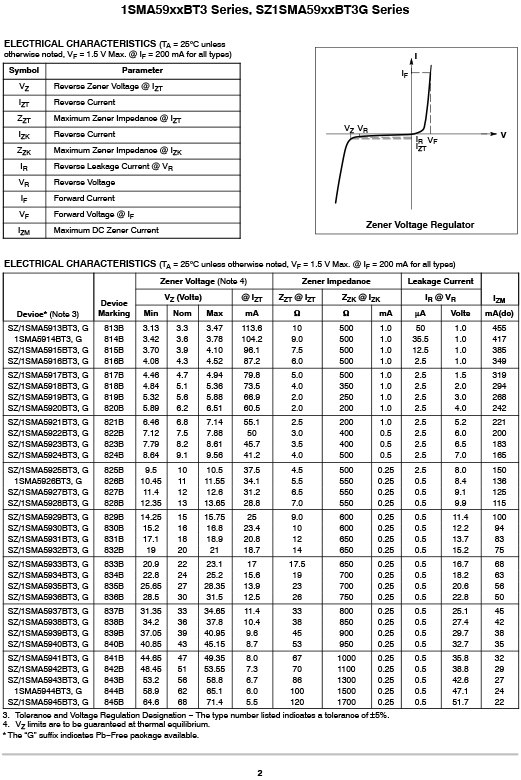

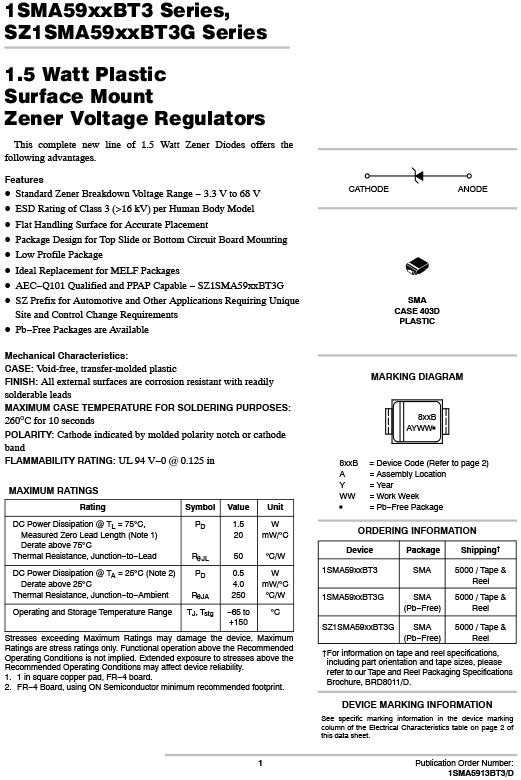

Product datasheet
For more information, please download
