Product Details
| Product Overview The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Mini-Universal MATE-N-LOK belongs to the Mini-Universal MATE-N-LOK Series.In addition to General Purpose, there are other possible applications for the device.There is a Through Hole mount on the part.The chip terminates at 3.A 600V voltage is used to supply power to this memory.This device operates at a temperature of -20°C~85°C. Product Features 3 basic kinds of terminations Mini-Universal MATE-N-LOK series Product Applications 1-770170-0 Rectangular Connectors applications. · Embedded systems · Datacom · Communication · Medical technology · Military Technology · Measuring & Control Technology · Instrumentation · Automotive Electronics · Telecommunications · Data Technology |
Product Description
| Type | Description |
| ANSC PART# | ANSC- 1-770170-0 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | Original |
| Series | Mini-Universal MATE-N-LOK |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.163" (4.14mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.175" (4.45mm) |
| Overall Contact Length | - |
| Insulation Height | 0.531" (13.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Lock |
| Operating Temperature | -20°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Applications | General Purpose |
| Base Product Number | 770170 |
Product Photos

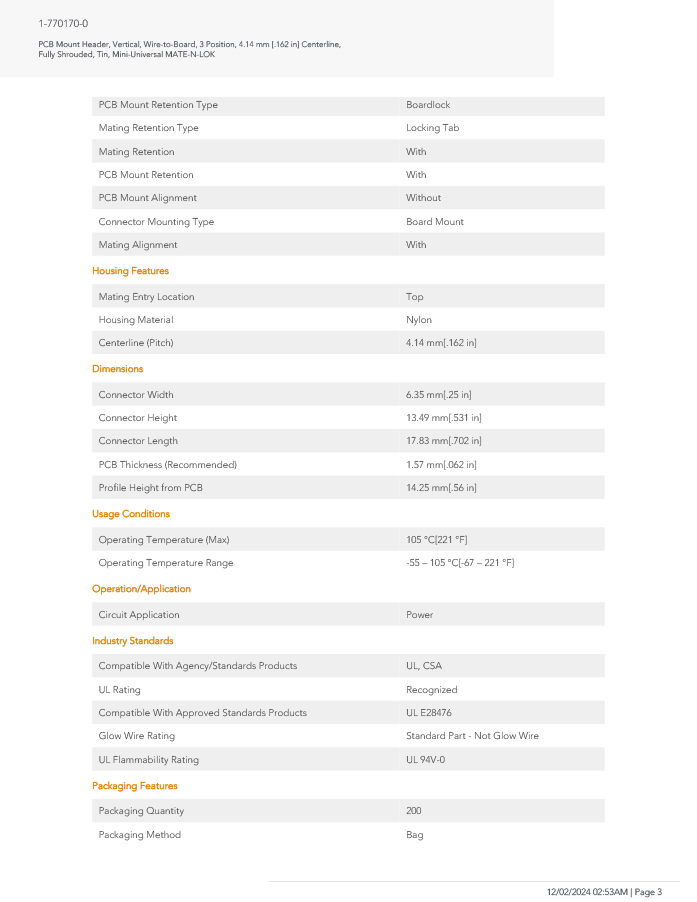

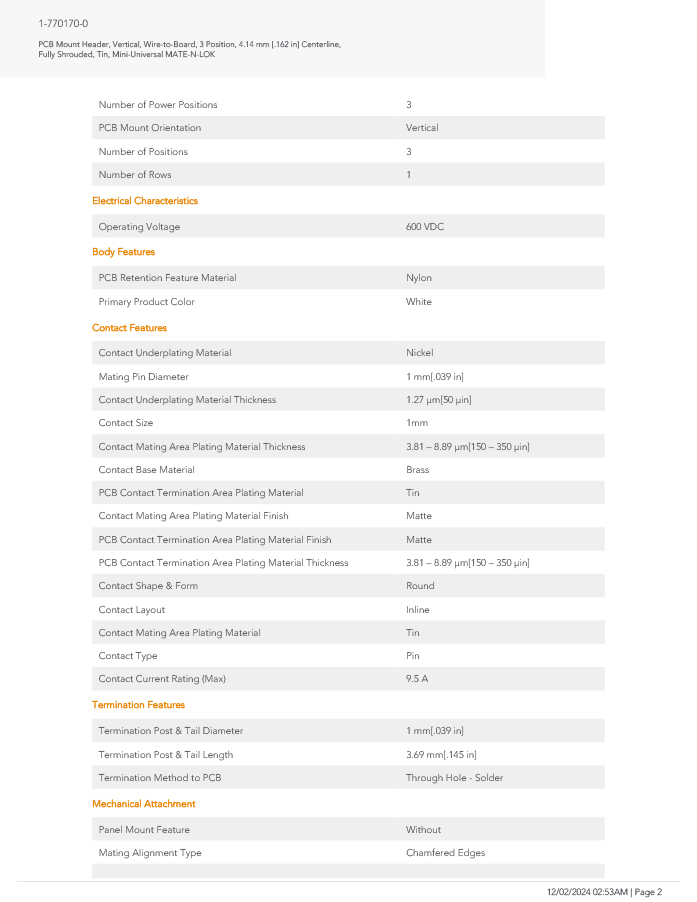

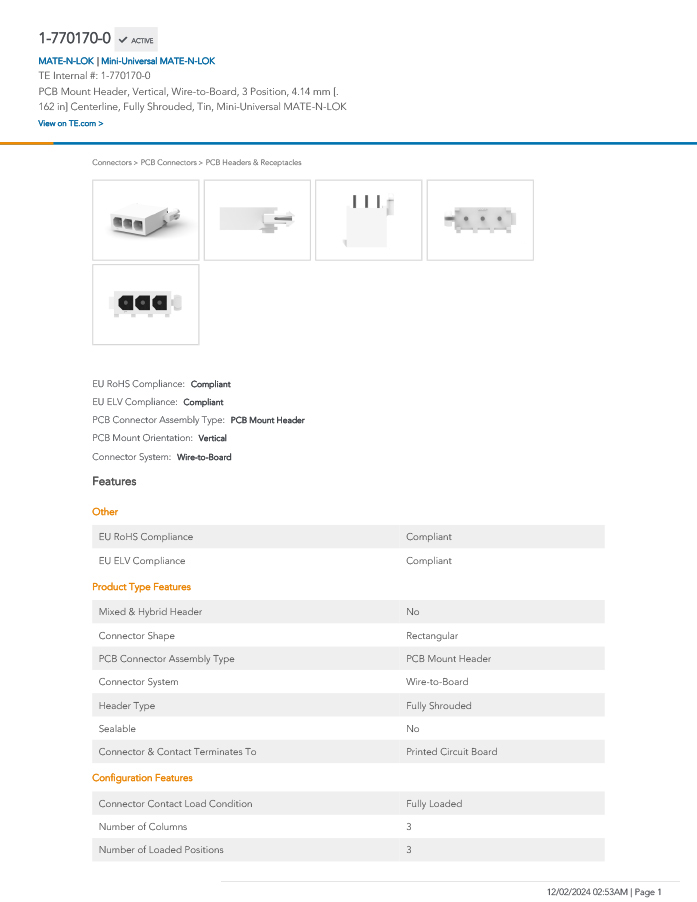

Product datasheet
For more information, please download
