Product Details

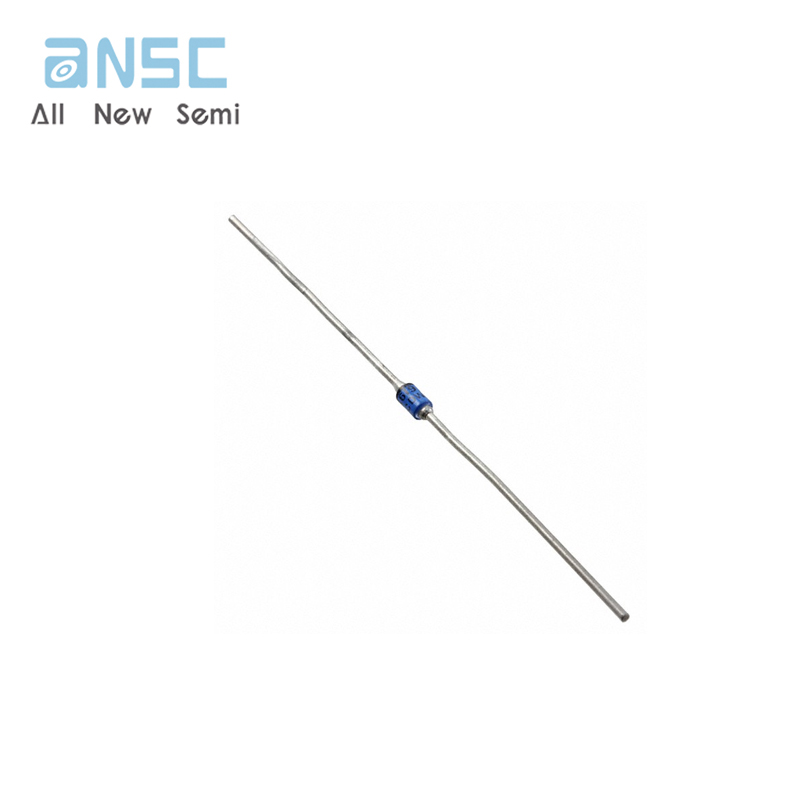

Brief Description: The 1N5615 is a fast recovery rectifier diode . It is a high-reliability, metallurgically bonded diode with a reverse recovery time of 150ns. The diode is designed for through-hole mounting and is available in a bulk package.

Features:

• Fast recovery time: <= 500ns

• High reliability and metallurgically bonded

• Reverse recovery time: 150ns

• Operating temperature range: -65°C to 175°C

• Maximum reverse voltage: 200V

• Maximum repetitive reverse voltage: 200V

• Maximum forward voltage: 1.6V

• Maximum output current: 1A

• Reverse leakage current: 500nA at 200V

• Capacitance: 45pF at 12V and 1MHz

• Radiation hardening: Yes

• Lead-free: Contains lead

Application Grade: The 1N5615 is designed for high-reliability applications that require fast recovery times and high operating temperatures. It is suitable for use in industrial, automotive, and aerospace applications.

Applications:

• Power supplies

• Switching power supplies

• DC-DC converters

• Motor control systems

• Automotive electronics

• Aerospace and defense electronics

• Industrial automation systems

Key Information:

• Part number: 1N5615

• Manufacturer: Microsemi Corporation

• Package type: Bulk

• Package size: Axial

• Terminal finish: Tin/Lead (Sn/Pb)

• Terminal form: Wire

• Pin count: 2

• Operating temperature range: -65°C to 175°C

• Maximum reverse voltage: 200V

• Maximum forward voltage: 1.6V

• Maximum output current: 1A

• Reverse recovery time: 150ns

• Radiation hardening: Yes

• Lead-free: Contains lead
