Product Details
DIP Switch with Slide Pins
• Allows automatic mounting with DIP IC insertion machines
• Washable models with seal tape are available
• SMT (surface-mounted terminal) models are available with/
without embossed tape
• RoHS Compliant
Product Description
| Type | Description |
| ANSC PART# | ANSC - A6S-2101-H |
| Category | Switches |
| DIP Switches | |
| Manufacturer | Original |
| Series | A6S-H |
| Packaging | Tube |
| Part Status | Active |
| Circuit | SPST |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | - |
| Contact Finish | Gold |
| Height Above Board | 0.146" (3.70mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -20°C ~ 70°C |
| Body Material | - |
| Length | 0.237" (6.02mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
| Base Product Number | A6S-2101 |

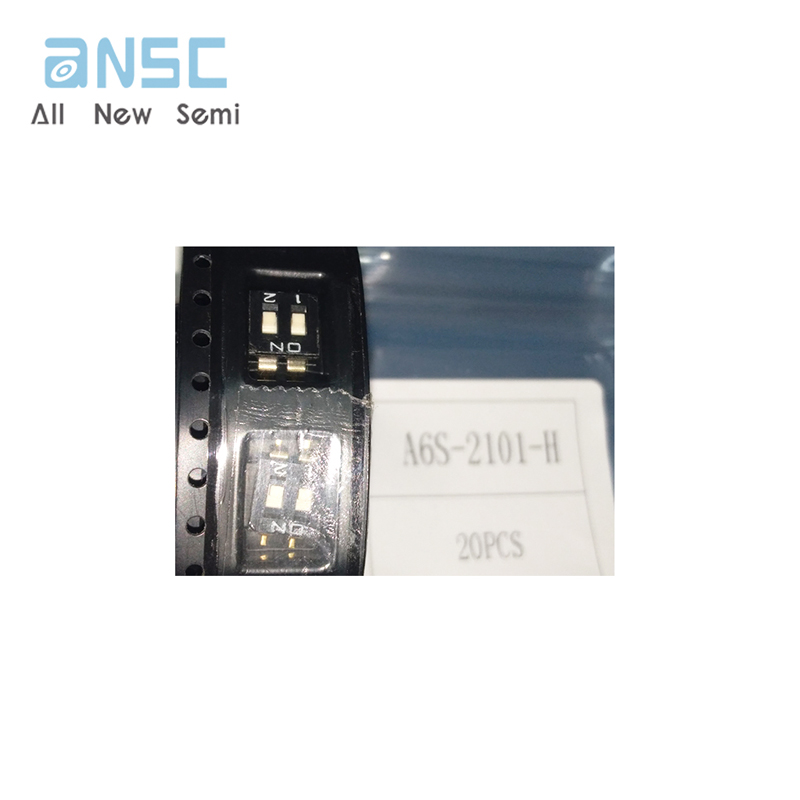

Product Photos
