Product Details
| Product Overview This device's average rectified current is zero volts.Surge currents are limited to 30 A.The datasheets show a peak reverse of 500 nA, as shown in the data chart. Product Features an average rectified current of 1 A volts the peak reverse is 500 nA Product Applications 1N5618 applications of single-phase diode rectifier. · DC motor control and drives · Battery chargers · Welders · Power converters · Reverse Polarity Protection · Ultra High-Speed Switching · Freewheeling · Polarity Protection Diode · Recirculating Diode · Switching Diode |
Product Description
| Type | Description |
| ANSC PART# | ANSC -1N5618 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs |
| Current - Reverse Leakage @ Vr | 500 nA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | A, Axial |
| Supplier Device Package | A, Axial |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Base Product Number | 1N5618 |

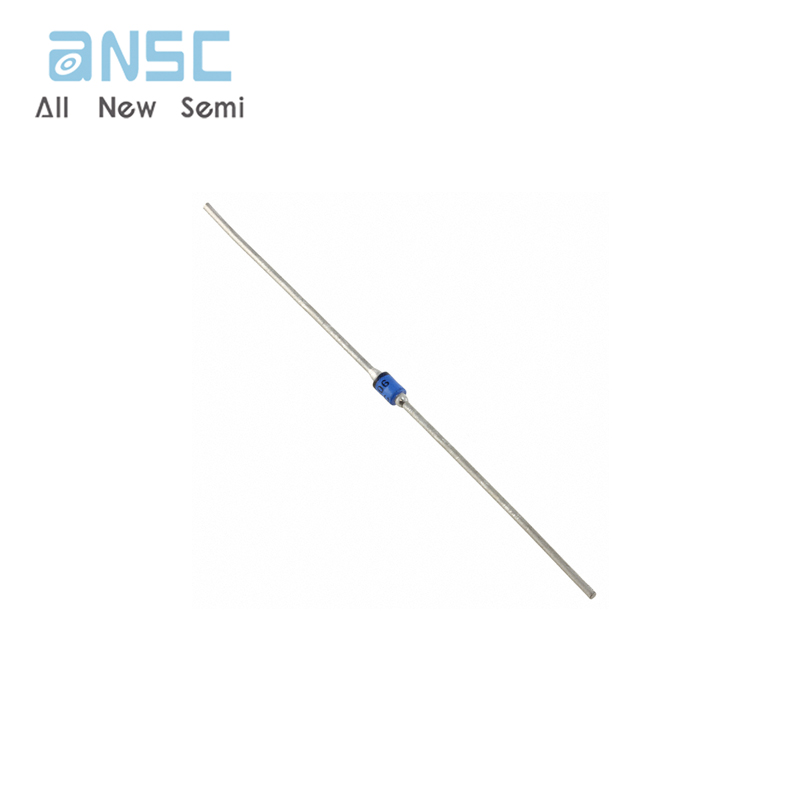

Product Photos
