Product Details
| Product Description 1SMB5913BT3G is a surface-mount, unidirectional, single-element Zener diode with a breakdown voltage of 3.47V. This diode is designed to provide a reliable and efficient voltage regulation solution in various electronic applications. The diode features a low reverse leakage current of 100μA at 1V and a forward current of 200mA with a forward voltage of 1.5V. Product Features · Halogen-free and lead-free: The diode is manufactured with halogen-free and lead-free materials, making it an environmentally friendly option. · High temperature range: The diode operates within a wide temperature range of -65°C to 150°C, ensuring reliable performance in various environments. · Low impedance: The diode has a low impedance of 10Ω, making it suitable for applications where low voltage drops are crucial. · ESD protection: The diode is designed with ESD protection, ensuring it can withstand electrical surges and spikes. · RoHS compliant: The diode is compliant with the RoHS3 directive, making it suitable for use in applications where environmental regulations are a concern. Product Applications · Primary applications: The diode is suitable for use in voltage regulation circuits, power supplies, and other applications where a stable voltage is required. · Secondary applications: The diode can also be used in overvoltage protection circuits, surge protection devices, and other applications where a high breakdown voltage is required. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -1SMB5913BT3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| Tolerance | ±5% |
| Power - Max | 3 W |
| Impedance (Max) (Zzt) | 10 Ohms |
| Current - Reverse Leakage @ Vr | 100 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | 1SMB5913 |

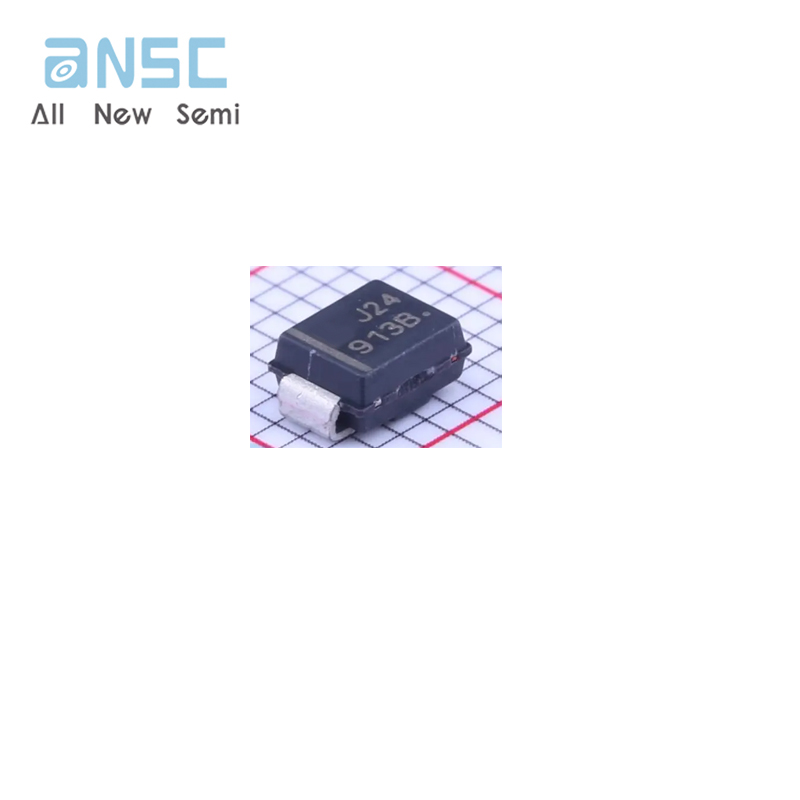

Product Photos

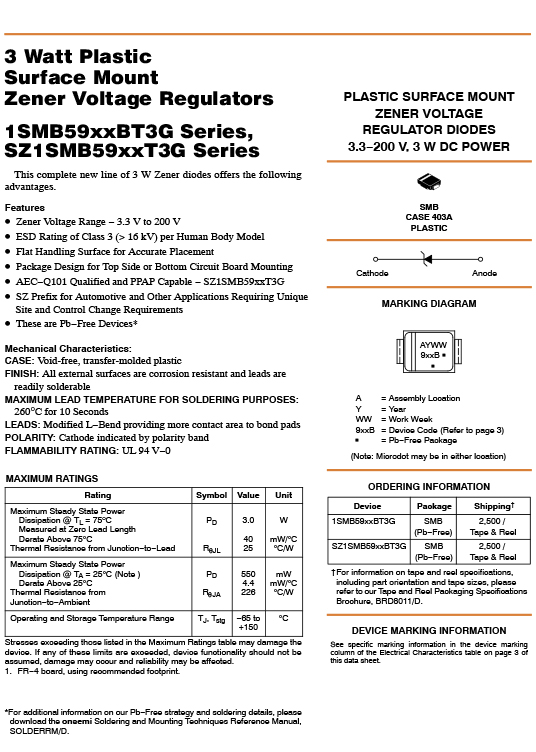

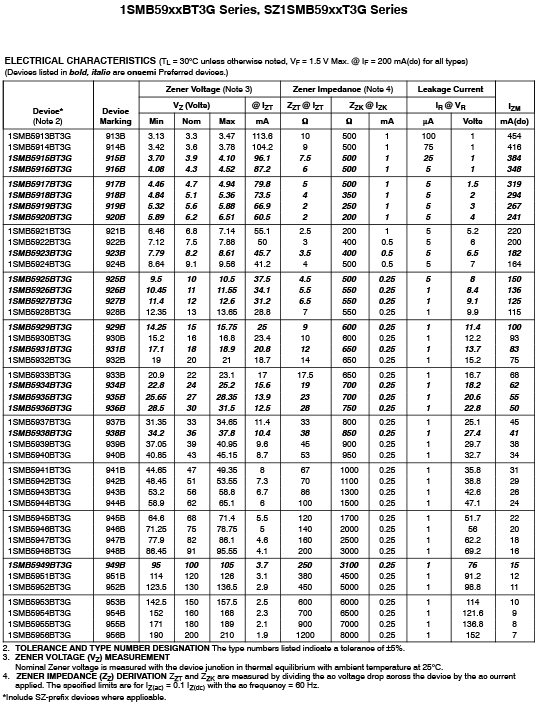

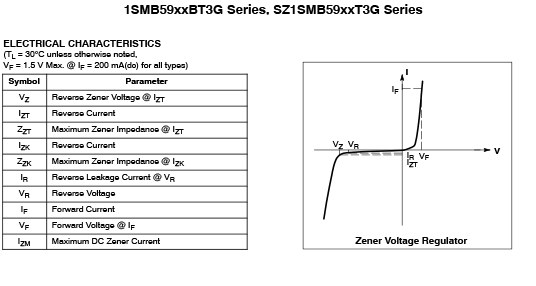

Product datasheet
For more information, please download
