Product Details
| NPN Silicon Epitaxial Transistor These NPN Silicon Epitaxial transistors are designed for use in audio amplifier applications. The device is housed in the SOT−223 package, which is designed for medium power surface mount applications. Features • High Current: 1.0 A • The SOT−223 package can be soldered using wave or reflow. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die • Available in 12 mm Tape and Reel Use BCP56T1 to Order the 7 inch/1000 Unit Reel Use BCP56T3 to Order the 13 inch/4000 Unit Reel • PNP Complement is BCP53T1 • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - BCP56T1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 2V |
| Power - Max | 1.5 W |
| Frequency - Transition | 130MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 (TO-261) |
| Base Product Number | BCP56 |

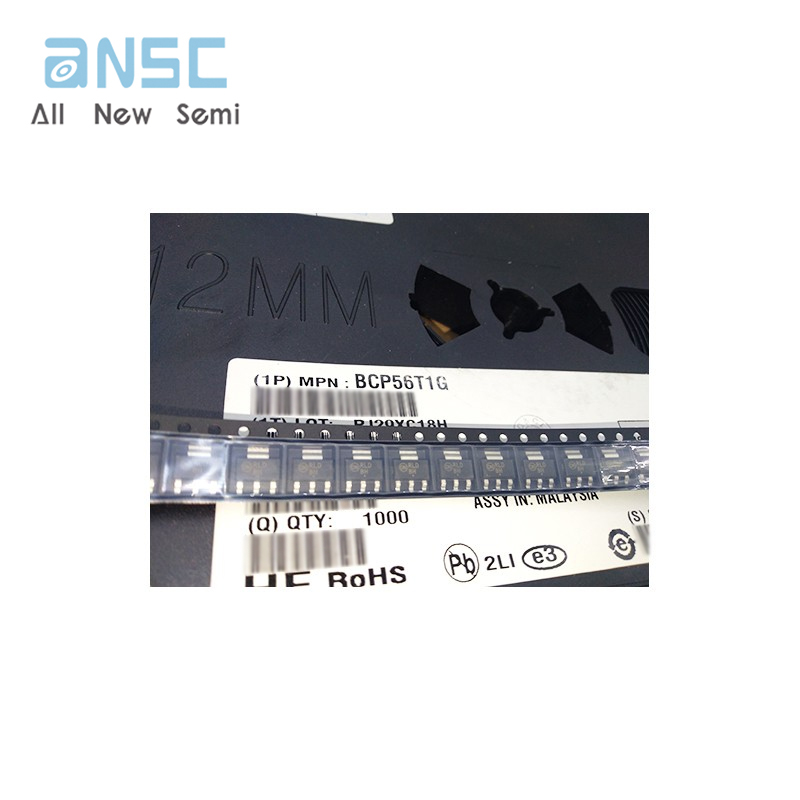

Product Photos

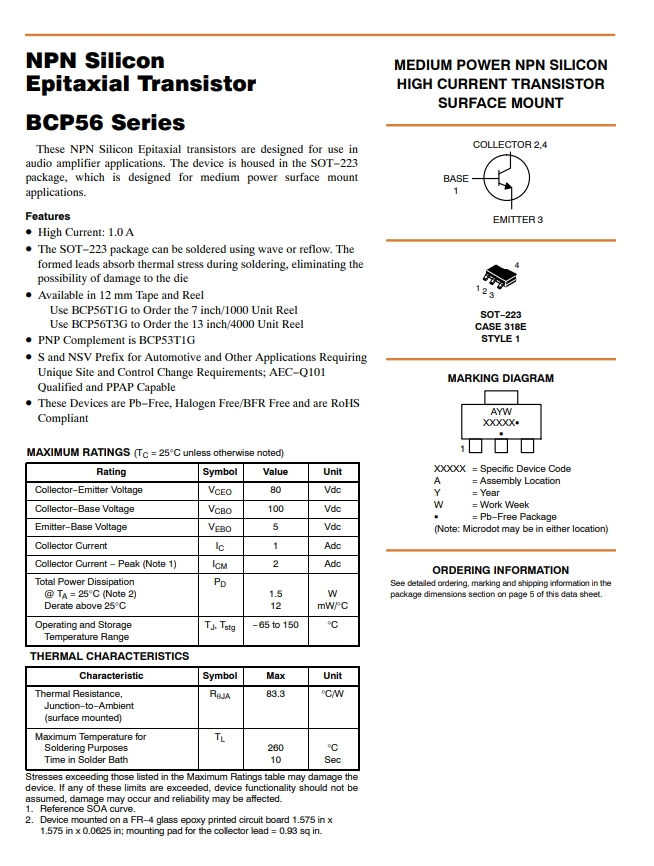

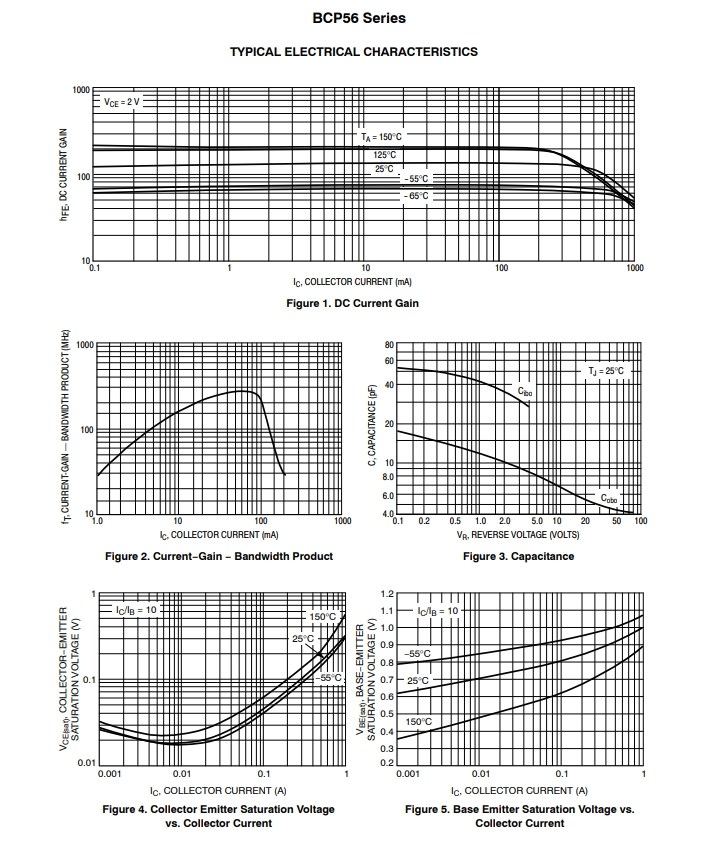

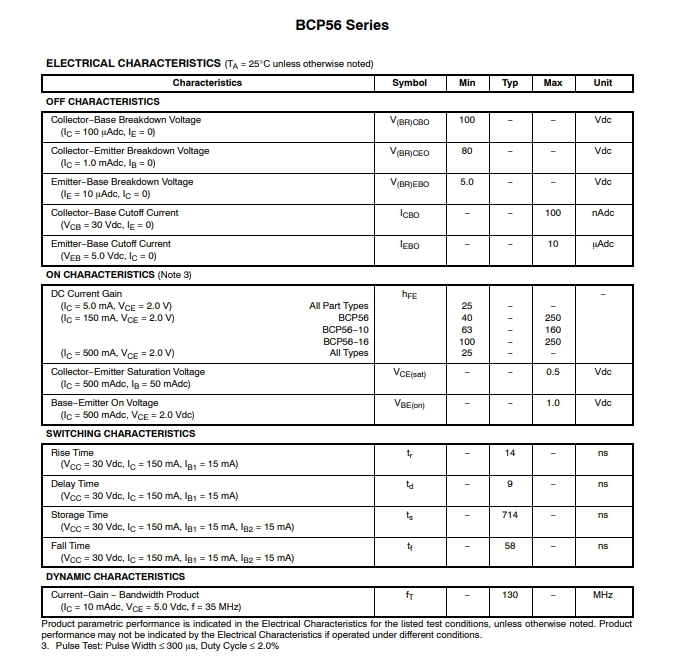

Product datasheet
For more information, please download
