Product Overview
In order for systems to be powered, a constant (AC) voltage (URac) is required.
Product Features
an internal rated (AC) voltage (URac) of 760V
Product Applications
PHE845VY6220MR06L2 applications of film capacitors.
Bypassing
RFI for automotive
Industrial and automotive inverters
Battery management system
Test and measuring equipment
RF Modules
Mobile communications
Satellite TV
Global positioning systems
Filters
Product Description
| Type | Description |
| PART# | PHE845VY6220MR06L2 |
| Category | Capacitors |
| Film Capacitors | |
| Mfr | Original |
| Series | PHE845 |
| Packaging | Tray |
| Part Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 760V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.610" W (26.00mm x 15.50mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
| Base Product Number | PHE845 |

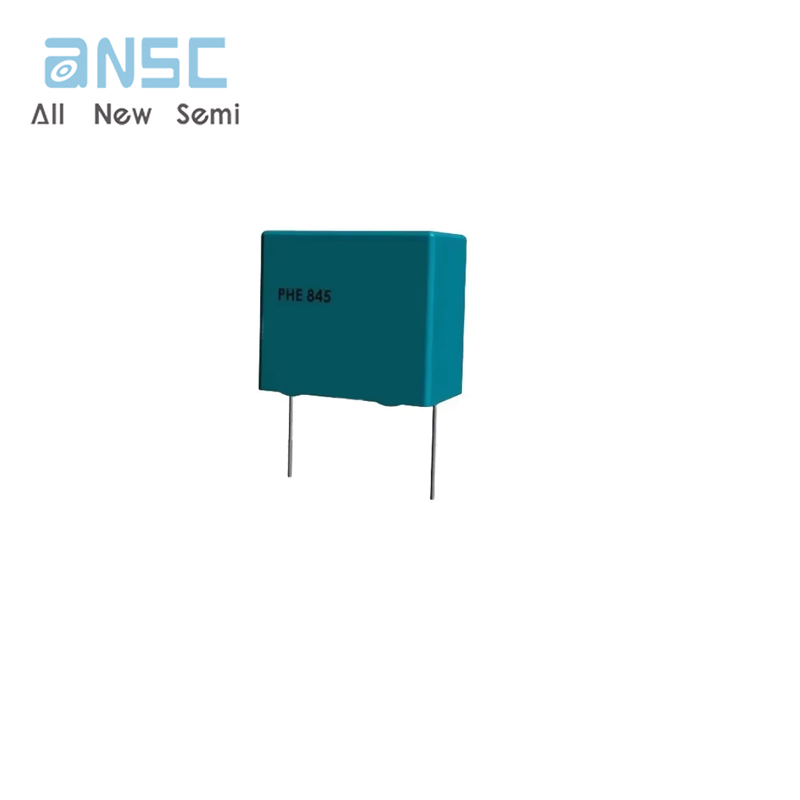

Actual image of the product
