Product Details
Features/Benefits
• Bifurcated contact for increased electrical reliability
• Tin-lead plated terminals for reliable solder coverage
• Process sealed for surface mount soldering and washable processing
• RoHS compliant - options available
Typical Applications
• Hand-held electronic devices
• Portable computer and electronic devices
• Instrumentation and controls
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC- TDA04H0SB1 |
Category | Switches DIP Switches |
Manufacturer | / |
Series | TDA |
Packaging | Tube |
Part Status | Active |
Circuit | SPST |
Number of Positions | 4 |
Current Rating (Amps) | 25mA |
Voltage Rating | 24VDC |
Actuator Type | Slide (Standard) |
Actuator Level | Flush, Recessed |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Height Above Board | 0.091" (2.30mm) |
Mounting Type | Surface Mount |
Termination Style | Gull Wing |
Pitch | 0.050" (1.27mm), Half |
Washable | Yes |
Features | Tape Seal |
Operating Temperature | -40°C ~ 85°C |
Body Material | Polyphenylene Sulfide (PPS) |
Length | 0.244" (6.20mm) |
Mechanical Life | 1,000 Cycles |
Electrical Life | 1,000 Cycles |
Base Product Number | TDA04H0S |
Actual image of the product

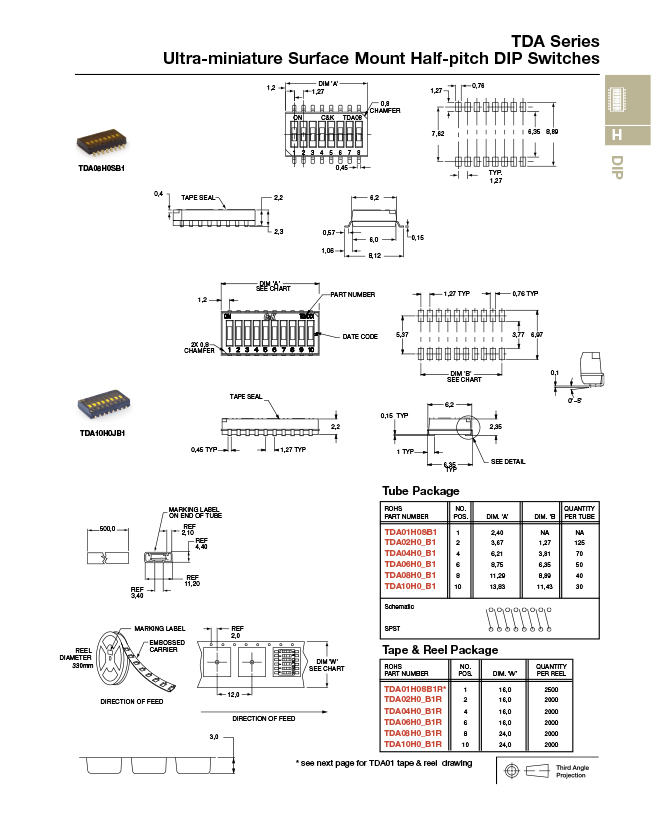

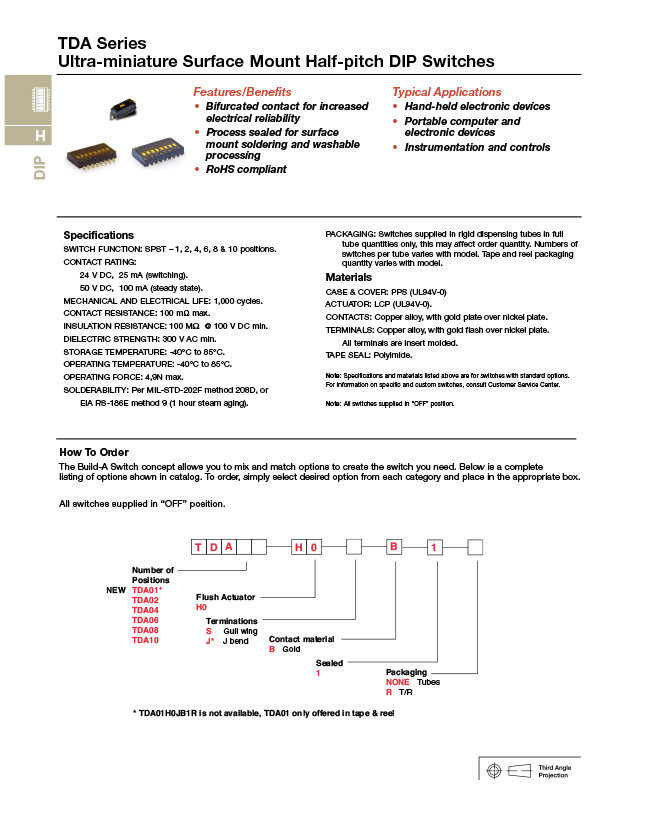

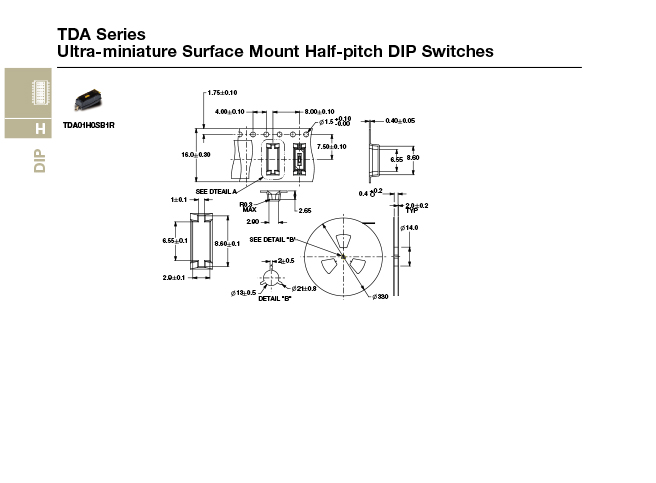

Product datasheet
For more information, please download
