Product Details
| 691323100008 Overview Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the WR-TBL Series 3231 Series, it can be found in this category.The device is operating at -40°C~105°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products. 691323100008 Features WR-TBL Series 3231 series 691323100008 Applications 691323100008 Terminal Blocks applications. Measuring & Control Technology Instrumentation Automotive Electronics Telecommunications Data Technology Blowers Control panels Electrical substations Energy efficient lighting (LED) LED municipal outdoor and street lighting |
Product Description
| Type | Description |
| ANSC PART# | ANSC -691323100008 |
| Category | Connectors, Interconnects |
| Terminal Blocks | |
| Headers, Plugs and Sockets | |
| Manufacturer | / |
| Series | WR-TBL Series 3231 |
| Packaging | Bulk |
| Part Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | ’-40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | Brass |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | 0.138" (3.50mm) |
| Insulation Height | 0.362" (9.20mm) |

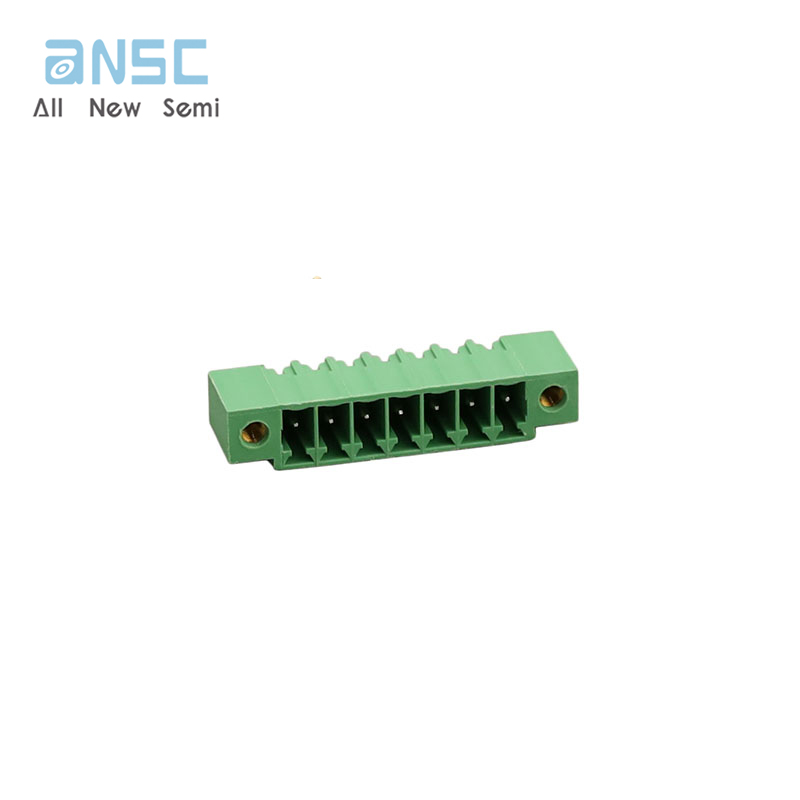

Product Photos

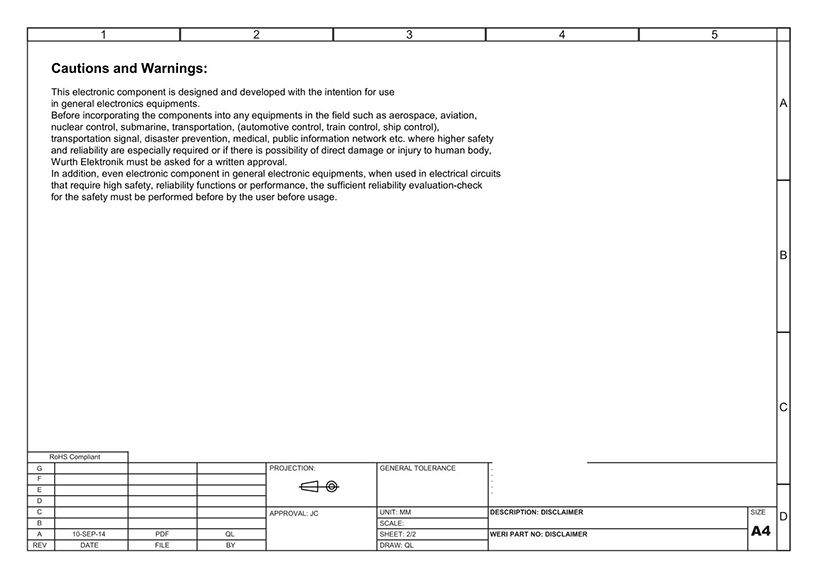

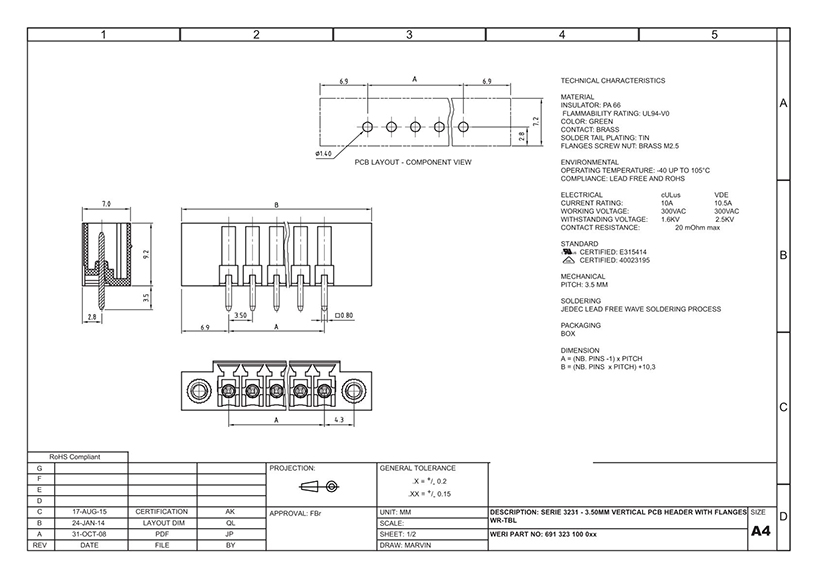

Product datasheet
For more information, please download
