Product Overview
Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the WR-FPC Series, it can be found in this category.It has 8 pins.Temperatures below 85°C are best for using it.There's a minimum temperature of -25°C for this device.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 50V.The device is operating at -25°C~85°C Operating Temperature
Product Features
WR-FPC serie
Product Applications
68710814522 FFC, FPC (Flat Flexible) Connectors applications.
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
· Blowers
· Control panels
· Electrical substations
· Energy efficient lighting (LED)
· LED municipal outdoor and street lighting
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - 68710814522 |
Category | Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies |
Manufacturer | / |
Series | WR-FPC |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Flat Flex Type | FPC |
Mounting Type | Surface Mount, Right Angle |
Connector/Contact Type | Contacts, Bottom |
Number of Positions | 8 |
Pitch | 0.020" (0.50mm) |
Termination | Solder |
FFC, FCB Thickness | 0.30mm |
Height Above Board | 0.079" (2.00mm) |
Locking Feature | Slide Lock |
Cable End Type | Tapered |
Contact Material | Phosphor Bronze |
Contact Finish | Tin |
Housing Material | Liquid Crystal Polymer (LCP) |
Actuator Material | Liquid Crystal Polymer (LCP) |
Features | Zero Insertion Force (ZIF) |
Voltage Rating | 50V |
Operating Temperature | -25°C ~ 85°C |
Material Flammability Rating | UL94 V-0 |
Current Rating (Amps) | 0.5A |
Contact Finish Thickness | 100.0µin (2.54µm) |
Housing Color | Ivory |
Actuator Color | Black |
Mating Cycles | 25 |
Actual image of the product

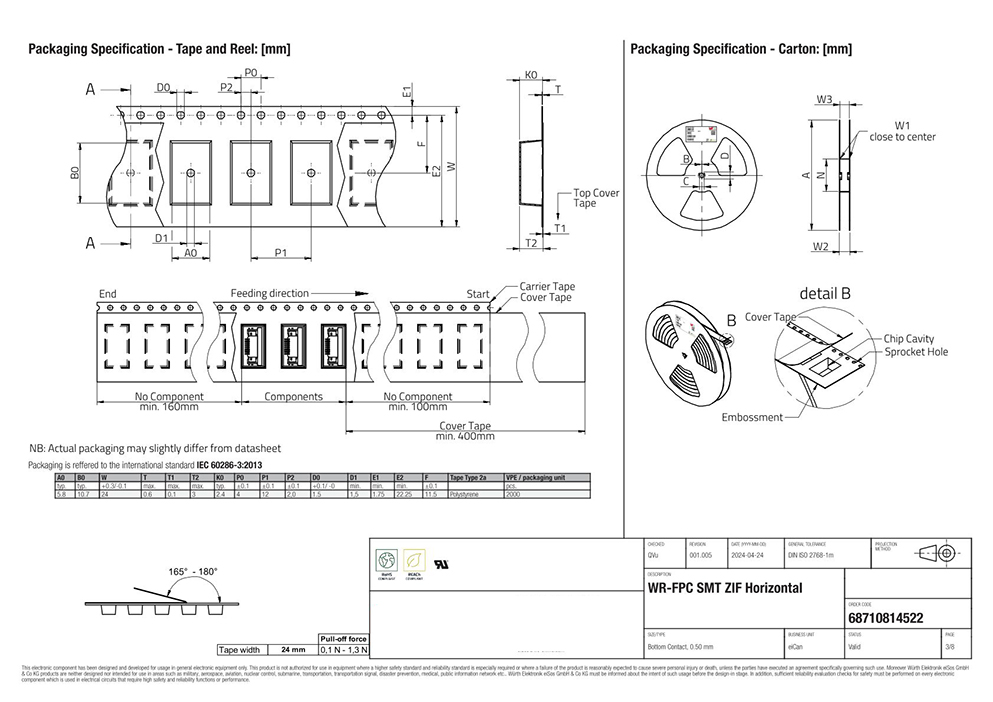

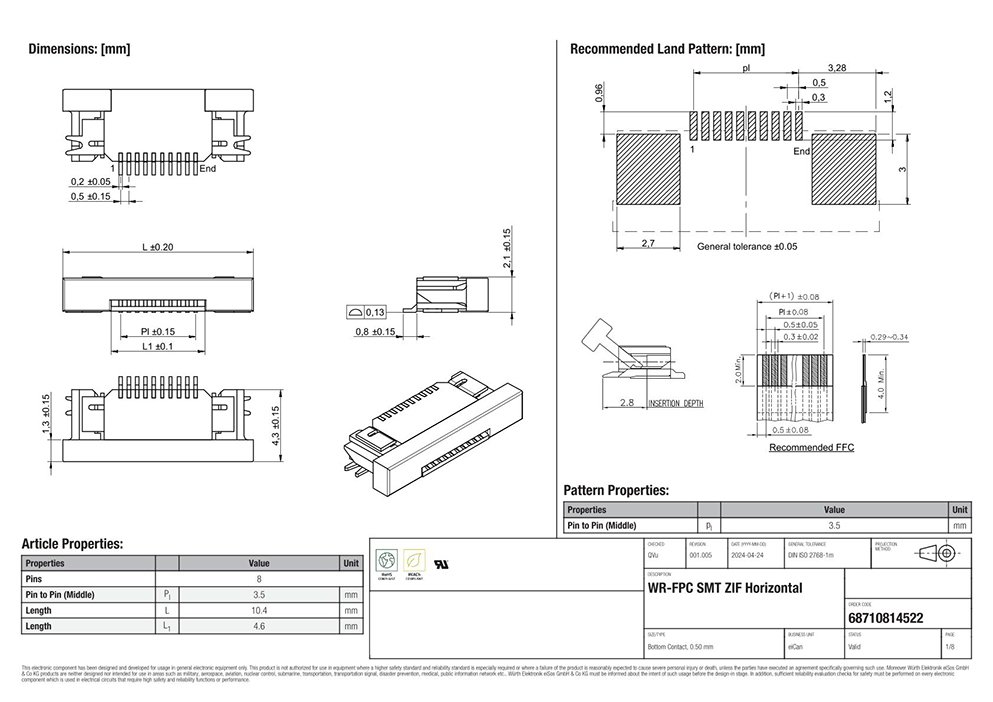

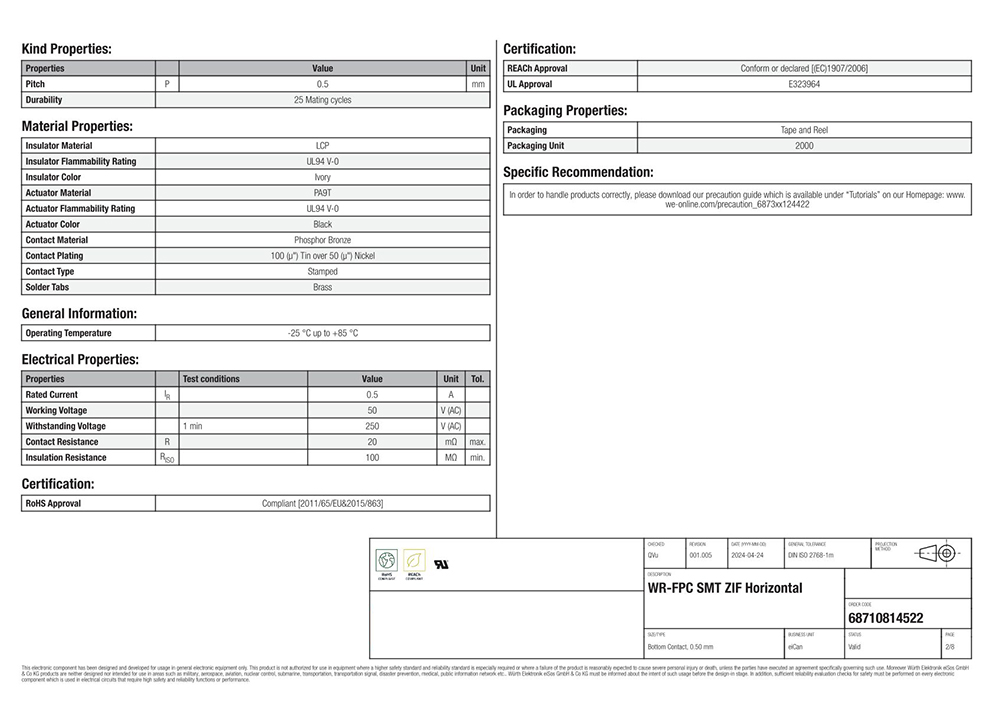

Product datasheet
For more information, please download
