Product Overview
The packaging is Header.Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the WR-PHD Series.2 pins are available on the device.It is best used at temperatures below 125°C.-40°C is the minimum temperature this device can operate at.Mounted by Through Hole.In this memory, the operating supply voltage is 250V.Device runs at -40°C~105°C Operating Temperature.
Product Features
WR-PHD series
Product Applications
61300211121 Rectangular Connectors applications
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - 61300211121 |
|
Category |
Connectors, Interconnects Rectangular Connectors Headers, Male Pins |
|
Mfr |
/ |
|
Series |
WR-PHD |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Connector Type |
Header |
|
Contact Type |
Male Pin |
|
Pitch - Mating |
0.100" (2.54mm) |
|
Number of Positions |
2 |
|
Number of Rows |
1 |
|
Row Spacing - Mating |
- |
|
Number of Positions Loaded |
All |
|
Style |
Board to Board or Cable |
|
Shrouding |
Unshrouded |
|
Mounting Type |
Through Hole |
|
Termination |
Solder |
|
Fastening Type |
Push-Pull |
|
Contact Length - Mating |
0.236" (6.00mm) |
|
Contact Length - Post |
0.118" (3.00mm) |
|
Overall Contact Length |
0.454" (11.54mm) |
|
Insulation Height |
0.100" (2.54mm) |
|
Contact Shape |
Square |
|
Contact Finish - Mating |
Gold |
|
Contact Finish Thickness - Mating |
- |
|
Contact Finish - Post |
- |
|
Contact Material |
Copper Alloy |
|
Insulation Material |
Polyamide (PA6T), Nylon 6T |
|
Features |
- |
|
Operating Temperature |
-40°C ~ 105°C |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V-0 |
|
Insulation Color |
Black |
|
Current Rating (Amps) |
3A |
|
Voltage Rating |
250V |
|
Mated Stacking Heights |
- |
|
Contact Finish Thickness - Post |
- |
|
Applications |
- |

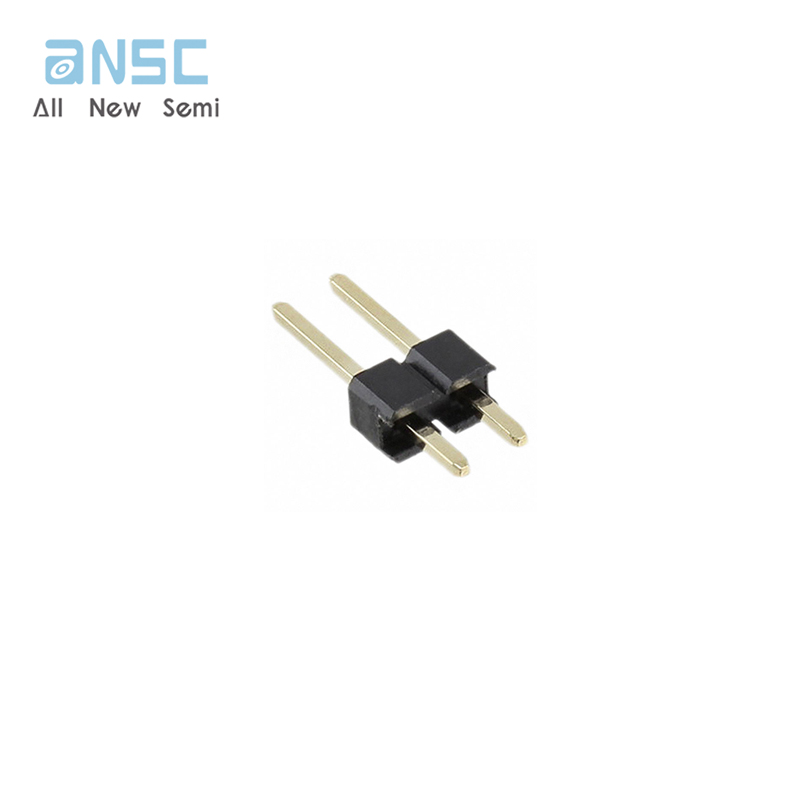

Actual image of the product

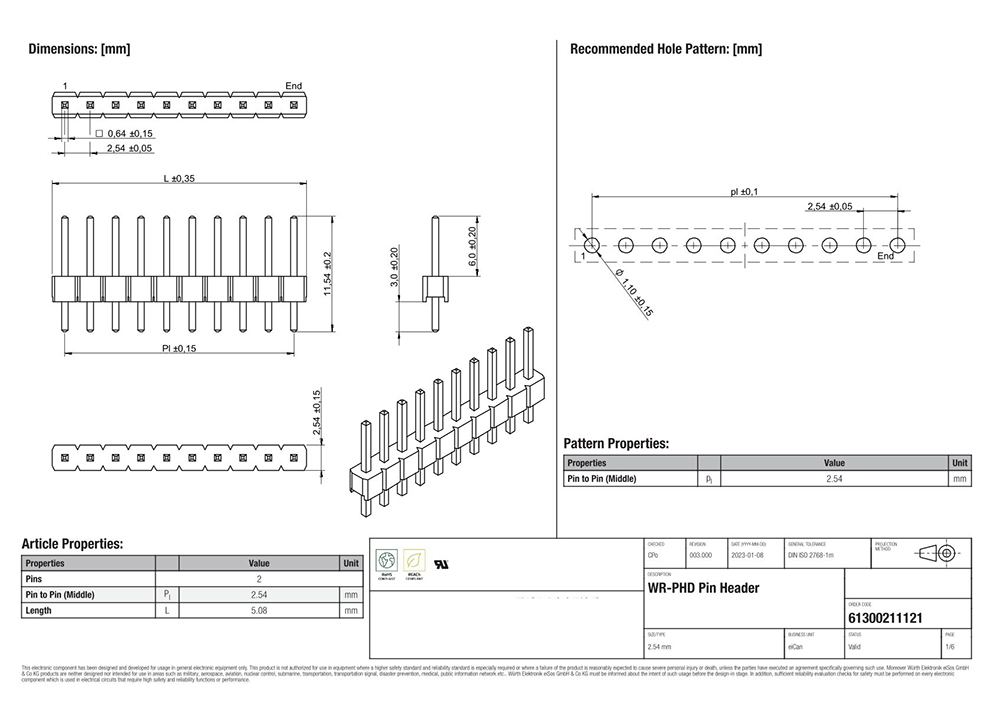

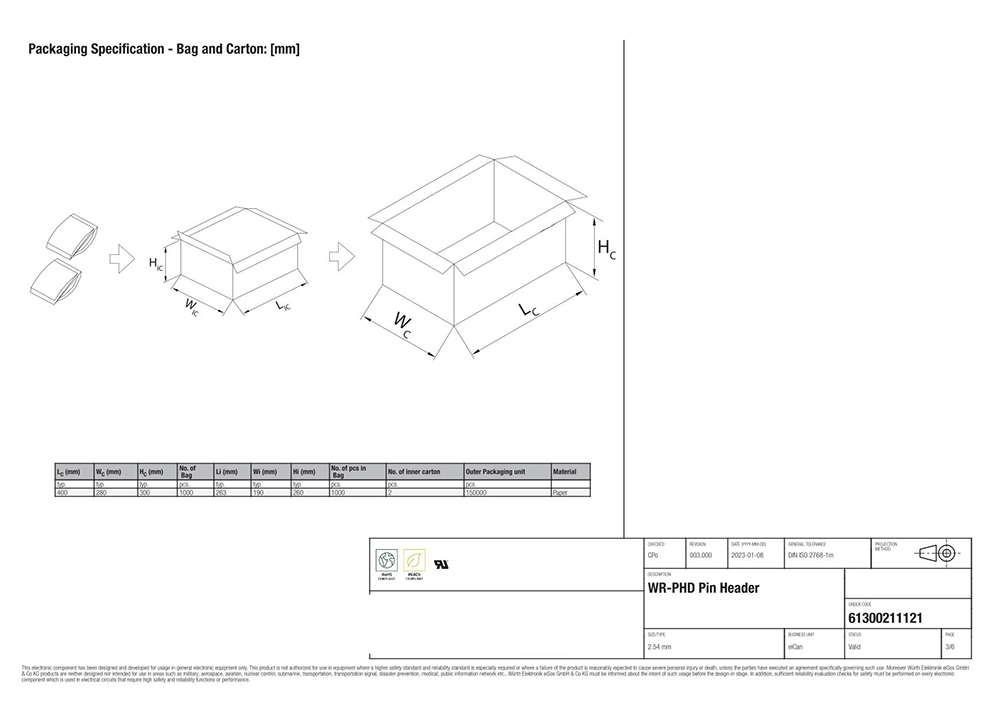

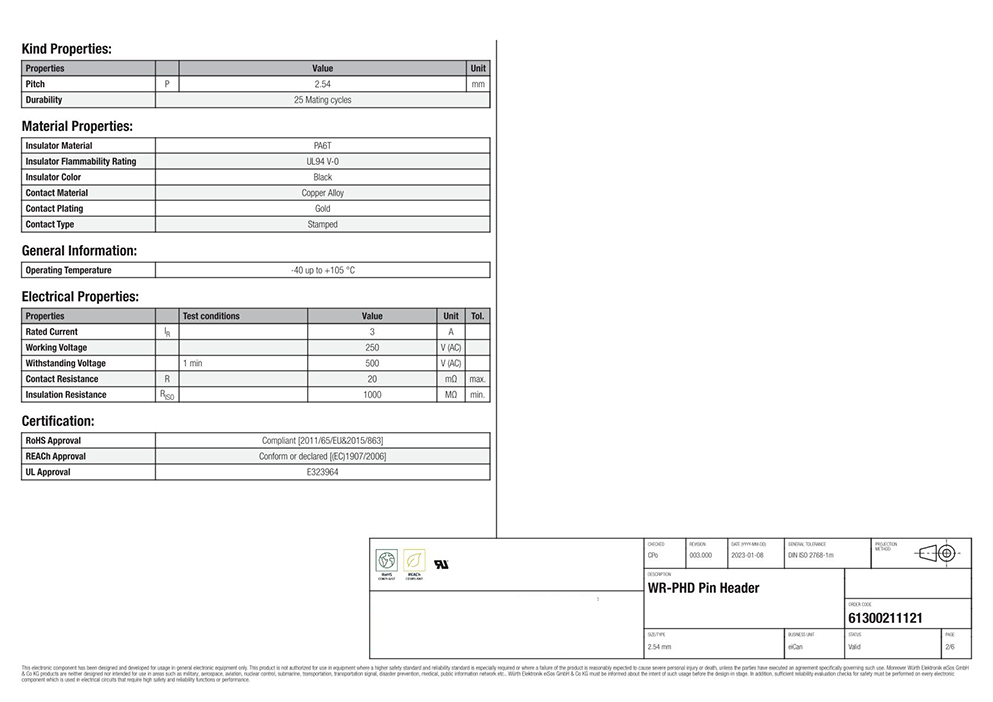

Product datasheet
For more information, please download
